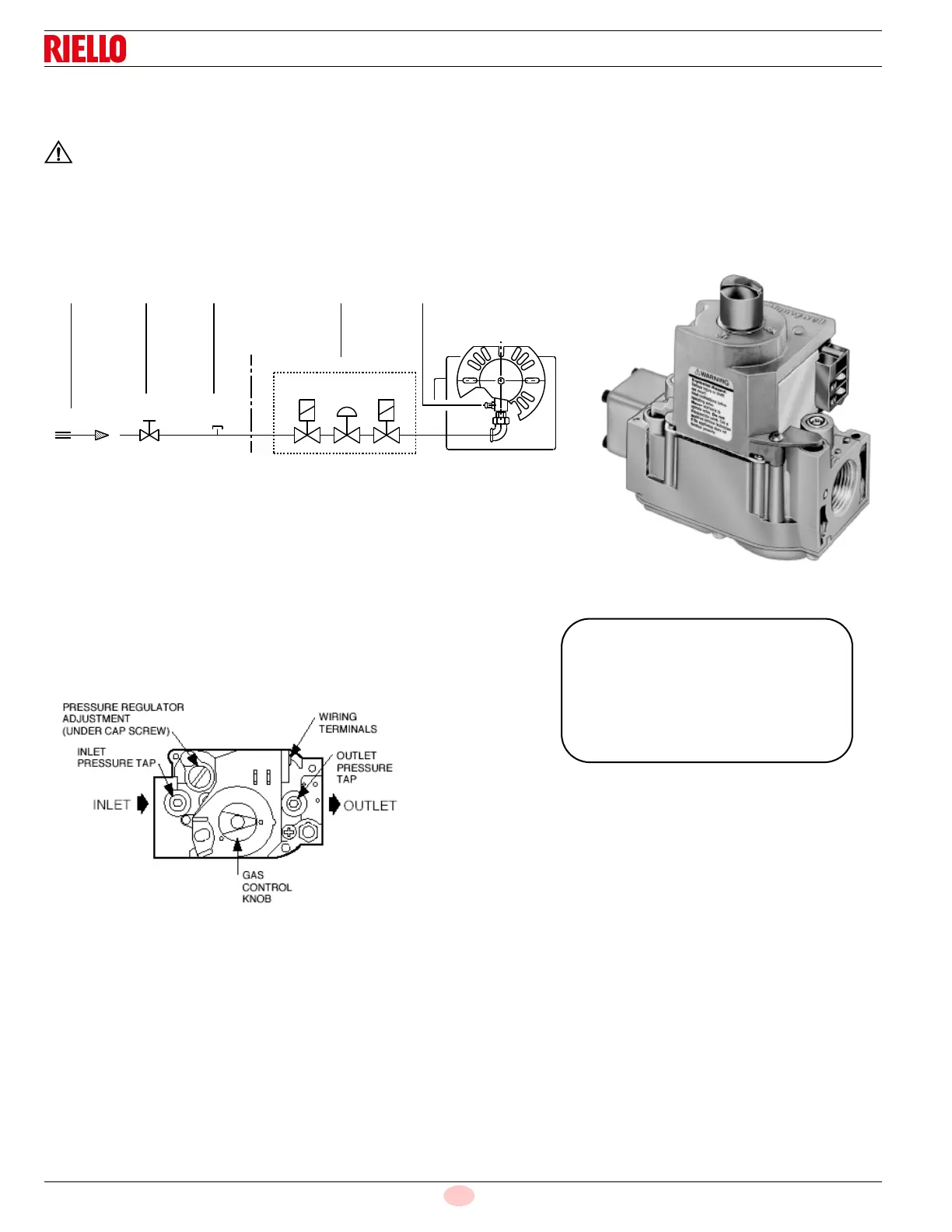

TYPICAL GAS TRAIN LAYOUT
THE GAS TRAIN LEAVES THE FACTORY SET AT 3.5” wc.
ATTENTION
This gas train scope of supply meets the minimum controls requirements according to CSA Canada and USA
regulations. Any additional requirements needed to meet local codes are the responsibility of others.
VALVE LEGEND
1 - Gas supply & flow direction of gas
2 - Gas supply main shtoff manual valve (field supplied)
3 - Gas supply pressure test point (field supplied)
4 -Valve
5 - Gas burner manifold test point
GAS SUPPLY PRESSURE RANGES:
NATURAL GAS PRESSURE:
min. 5” wc - max. 7” wc
LP PROPANE GAS PRESSURE
min. 12” wc - max. 14” wc
TOP VIEW OF GAS CONTROL
FIELD SUPPLIED RIELLO SUPPLIED
1 2 3 4 5
D7343
