6 DISPLAY
The LCD display provides the user/operator with all the information relating to the operating status of the machine and
warns of any conditions that warrant an alarm.
The display has two lines: a status line (top) and a status/alarm line (bottom).

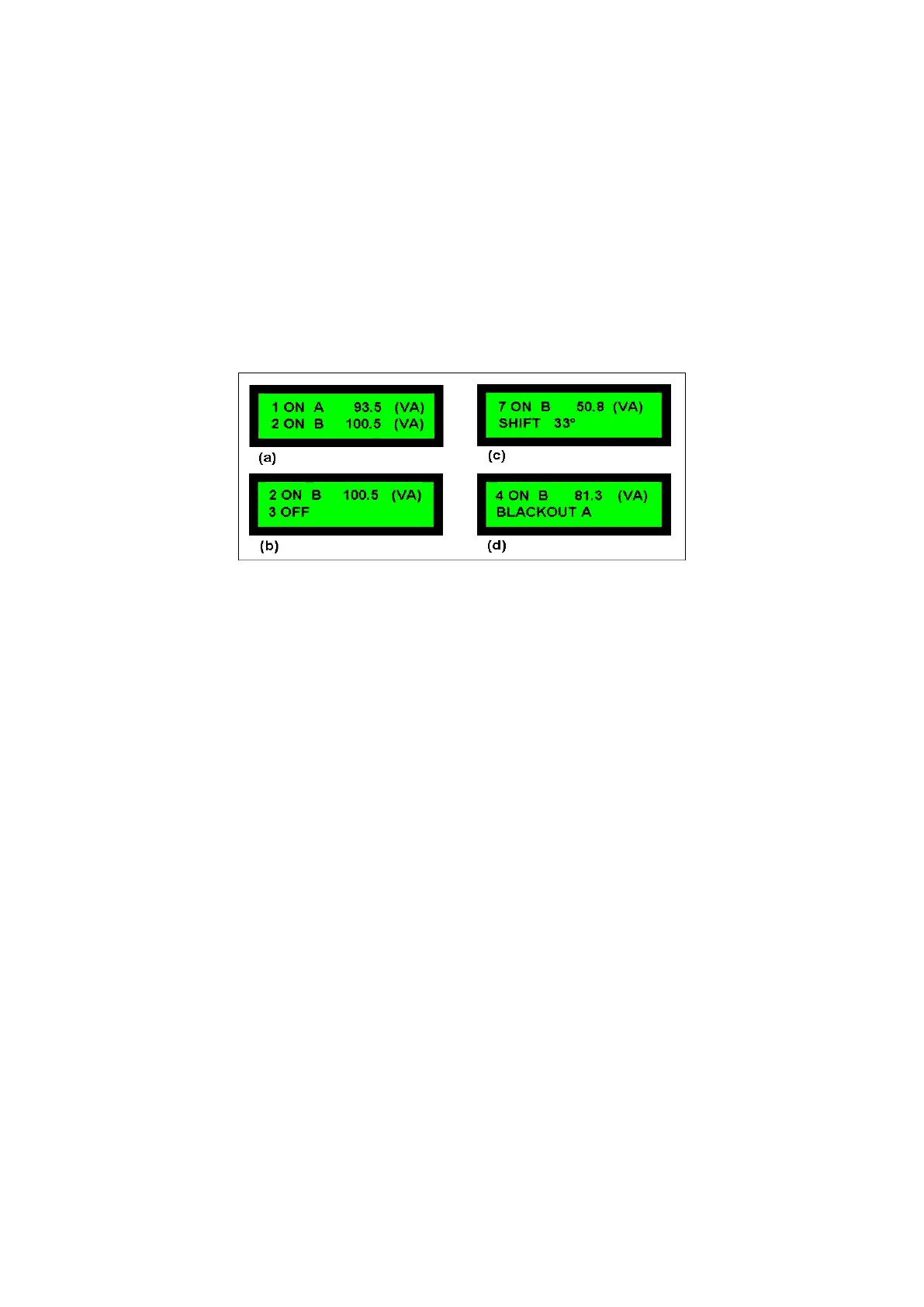

The four possible operating conditions are shown in figure below.
Where there is no blackout but a shift of between 0° and 11° occurs, the two lines of the LCD display show the status
of the outputs, the line data (two at a time with the delivered power in VA), and the data of the loads (1, 2, 3, etc…)
connected to the line, as shown in figure (a) and (b).
When a blackout occurs on one of the two input lines, or where a shift of more than 11° occurs between the two lines,
the LCD display indicates this on the status/alarm line as shown in figure (c) and (d).
The shift reading is given in multiples of 11.
LCD display
The Multi Switch does not emit any acoustic alarm. Presence of an alarm is indicated solely on the LCD display.
