Riello MultiCOM 392 - Input Configuration

- S3T / S3M / S3U -
27
IN 1, IN 2 and IN 3 are named “Input1-opt”, “Input2-opt” and “Input3-opt” in configuration software.
SWMB is not managed in S3T / S3M / S3U.
For each input can be selected: the associated function (Mode) and the operating logic of the contact (Logic).
INPUT CONTACTS DEFAULT CONFIGURATION
INPUT
CONFIGURABLE
Configurator
Mode
Logic
Delay (ms)
IN 1
YES
Input 1-opt
NO OPERATION
Contact closed
0
IN 2
YES
Input 2-opt
NO OPERATION
Contact closed
0
IN 3
YES
Input 3-opt
NO OPERATION
Contact closed
0
SWMB
NO FUNCTION

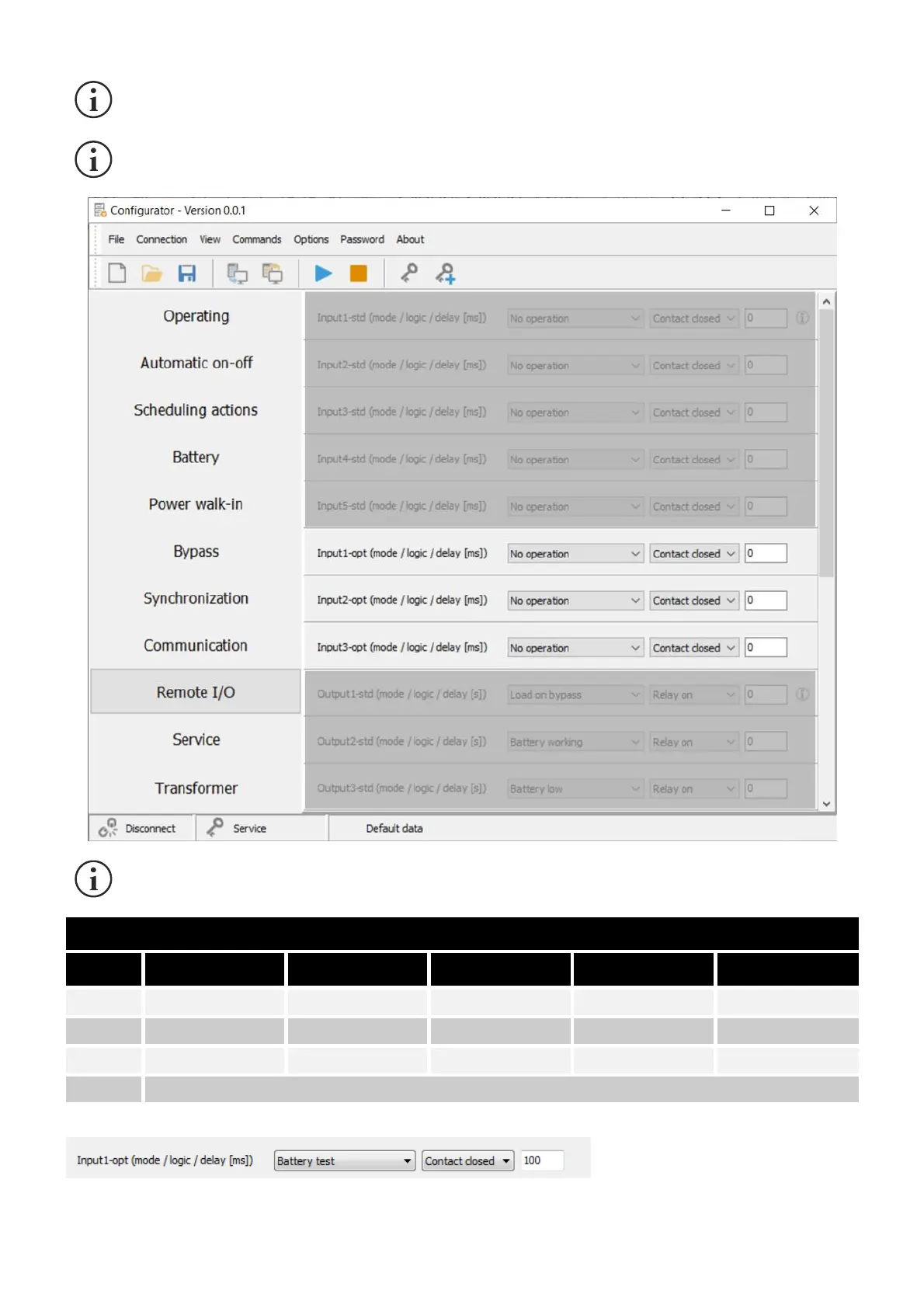

For example, if you set an input in this way:
a battery test will be executed 100ms after the contact is closed
