Riello MultiCOM 392 - Output Configuration Details

- S3T / S3M / S3U -
28

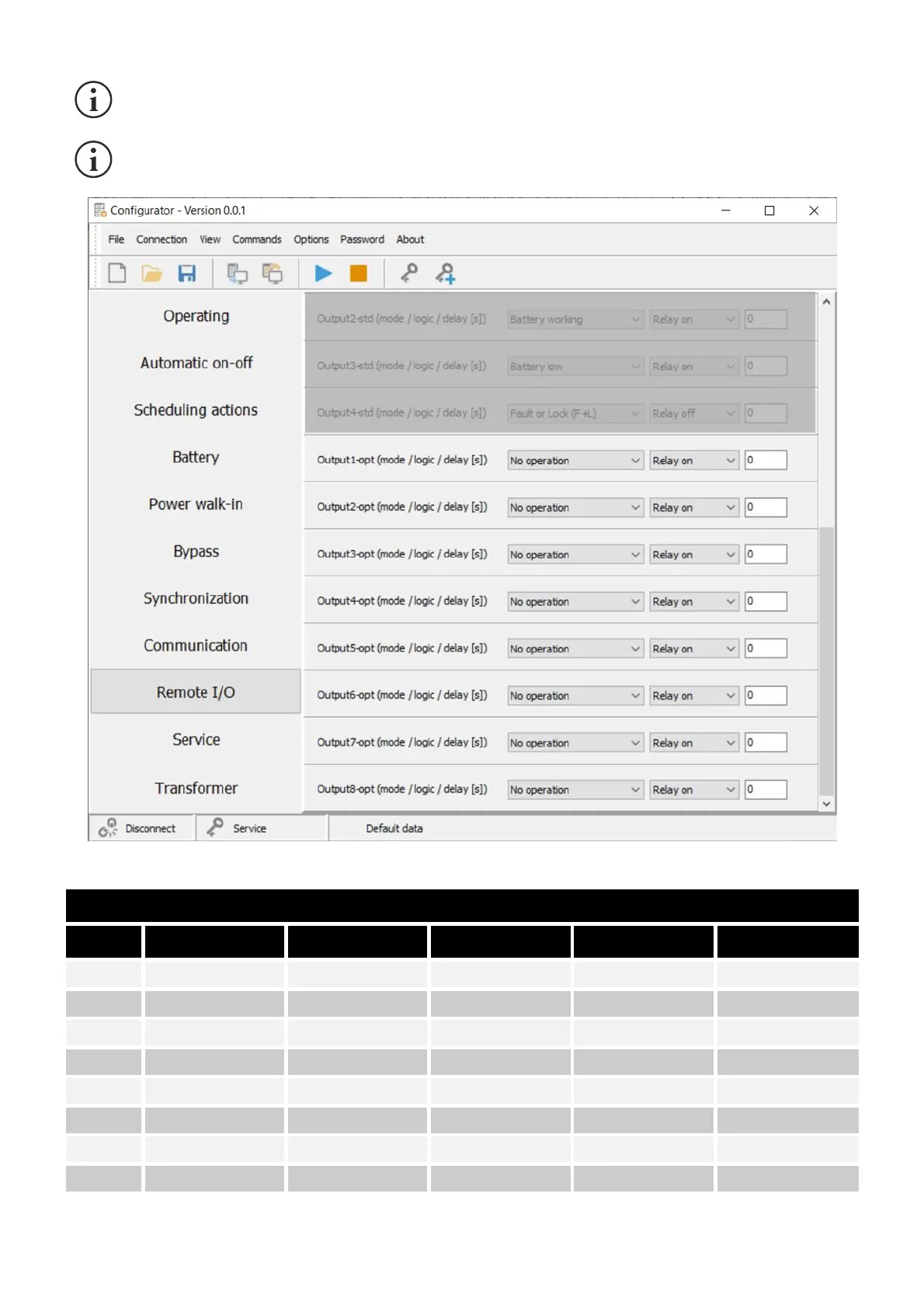

OUT 1, … ,OUT8 are named “Output1-opt”, … ,“Output8-opt” in configuration software.
For each of the eight outputs can be selected: the associated event (Output mode), the operating logic of the relay
(Logic) and a delay (in seconds) in reporting the event.
OUTPUT CONTACTS DEFAULT CONFIGURATION
OUTPUT
CONFIGURABLE
Configurator
Mode
Logic
Delay (s)
OUT 1
YES
Output 1-opt
NO OPERATION
Relay ON
0
OUT 2
YES
Output 2-opt
NO OPERATION
Relay ON
0
OUT 3
YES
Output 3-opt
NO OPERATION
Relay ON
0
OUT 4
YES
Output 4-opt
NO OPERATION
Relay ON
0
OUT 5
YES
Output 5-opt
NO OPERATION
Relay ON
0
OUT 6
YES
Output 6-opt
NO OPERATION
Relay ON
0
OUT 7
YES
Output 7-opt
NO OPERATION
Relay ON
0
OUT 8
YES
Output 8-opt
NO OPERATION
Relay ON
0
