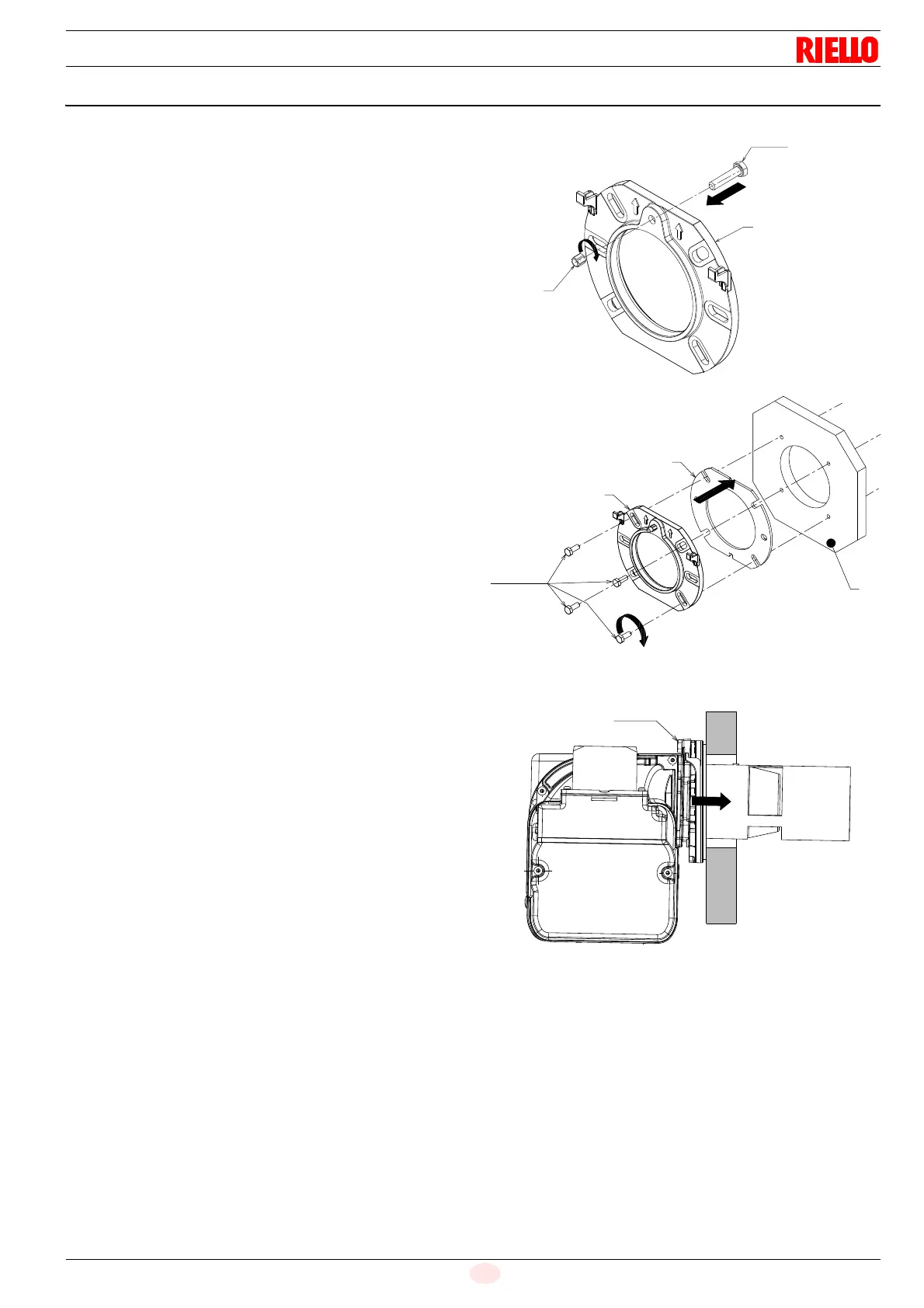

5.7 Securing the burner to the boiler
In order to fix the burner to the boiler, proceed as follows:
 Insert the screw 2) in the flange 1), and tighten the nut
3)(Fig. 7);
 Fix the flange 5) to the boiler door 4) using the screws 6)
placing in between the insulating gasket 7)(Fig. 8);
 Insert the burner, and fix it in place with the nut 8)(Fig. 9).
3
1
2 (M8)
Fig. 7
20138111
6 (M8x20)
4
7
5
20083626
Fig. 8
8 (M8)
Fig. 9
20138114
