ENGLISH: Assembly Instruction Dealer
Cruiser/Swing/Wave FRONT CARRIER (VBK0133)
5. Adjust front carrier and fix it at its clamp by two bolts and washers (see fig. 3).
Tightening torque 5-6 Nm.
6. Install round head bolt M6x20 , washer and self lock nut M6 at light bracket.
Tightening torque 5-6 Nm.
It might be necessary to bend the front carrier a little forward or to add an Aheadset-spacer to install
the bolt .

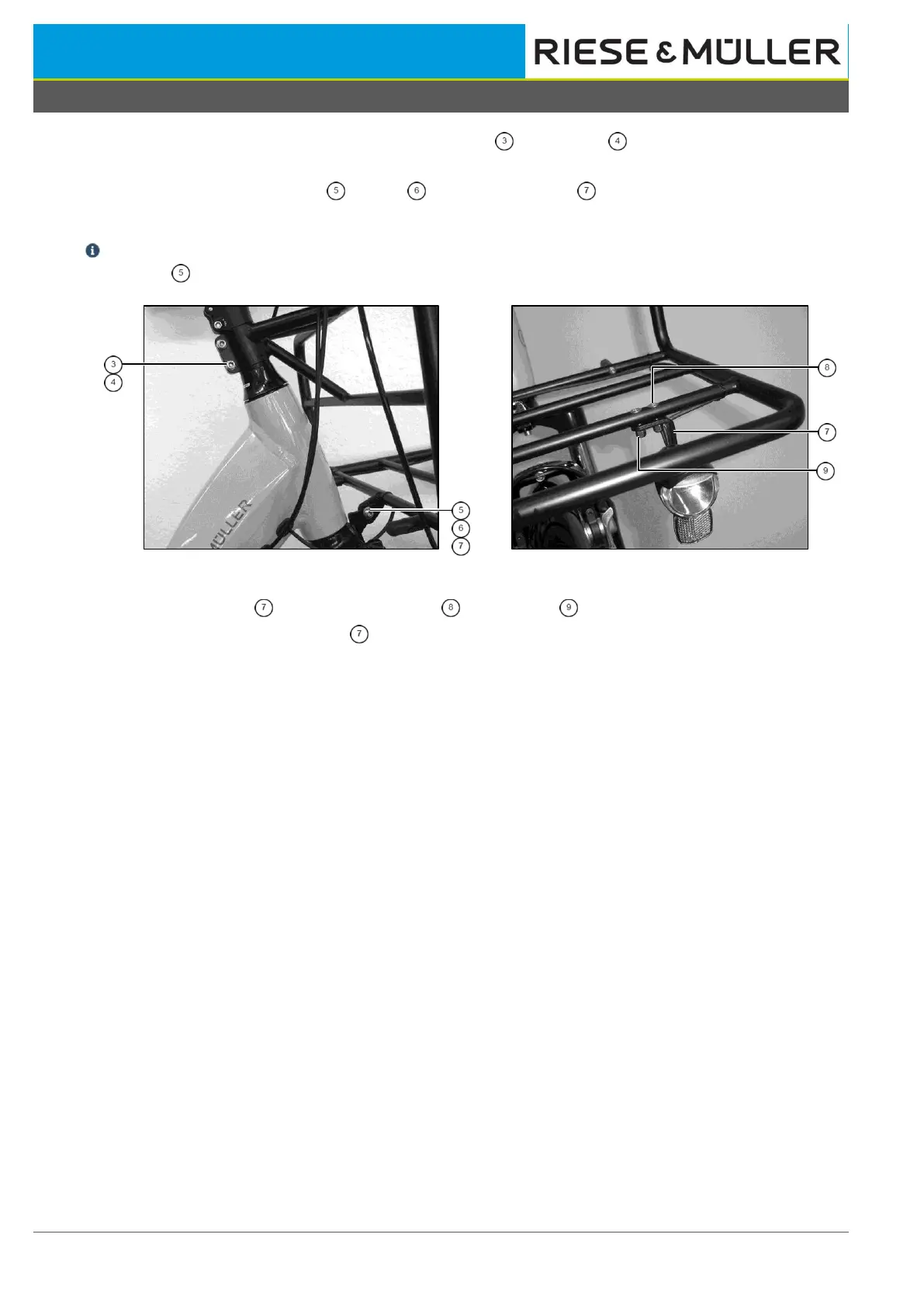

fig. 3: Mounted front carrier
fig. 4: Front light
7. Install light bracket with countersunk bolts and cap nuts at the front carrier.
8. Install front light at light bracket . Carefully pull the light cable a little bit out of the frame until it
fits to the new position. Fix light cable at the front carrier with zip-ties.
