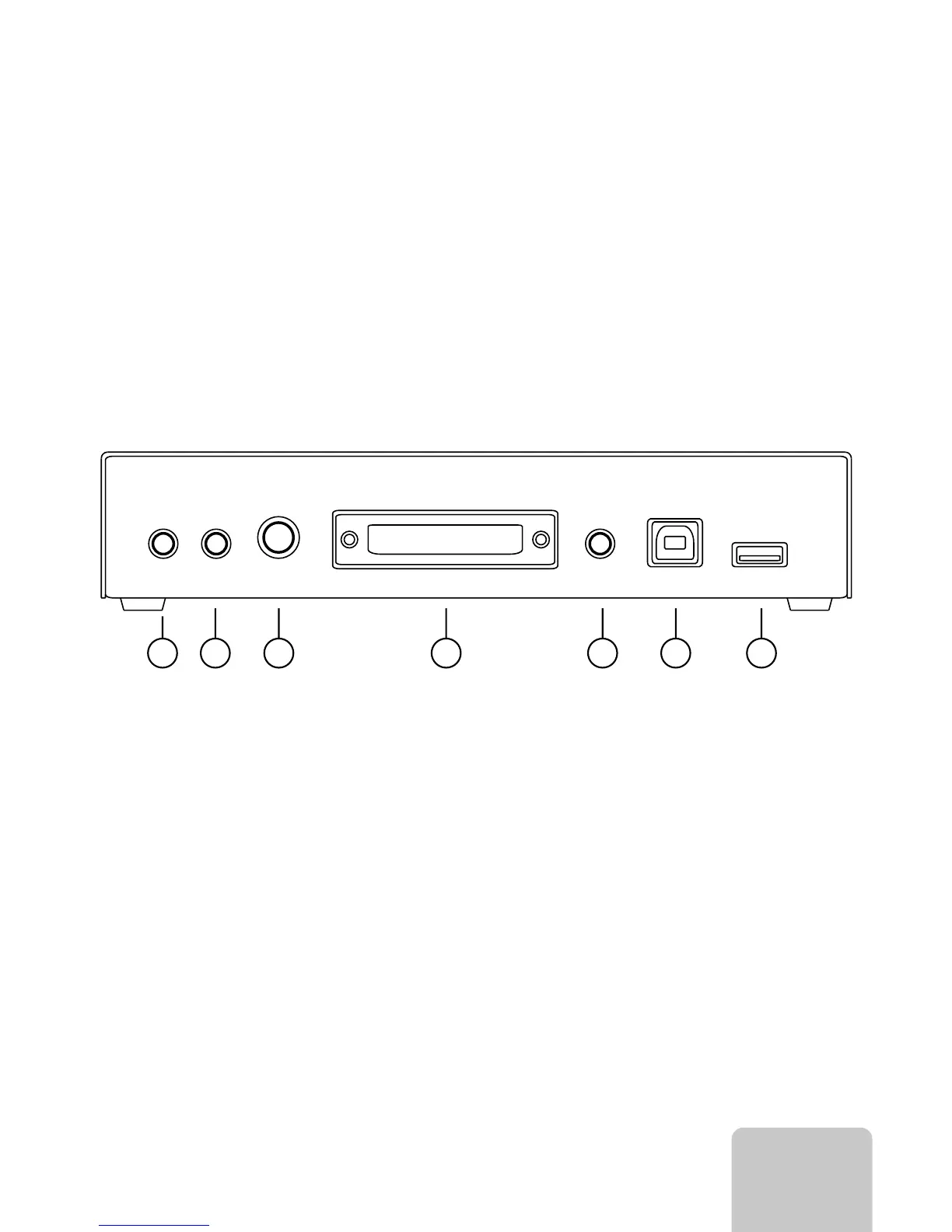

Rear panel:
11. MIC1. Microphone input connector
(3.5 mm).
12. MIC2. Microphone input connector
(3.5 mm).
13. FOOTSW. Foot switch, RCA socket.
14. TRANSCEIVER. 25-pin transceiver
connector.
15. PADDLE. CW paddle input (3.5 mm).
16. USB IN. Connect to the computer
USB port.
17. USB OUT. USB hub output to connect
USB devices such as computer mouse.
TRANSCEIVER
PADDLE
USB IN
11 13 14 15 17
MIC1
FOOTSW
16
MIC2
USB OUT
12
