User’s manual

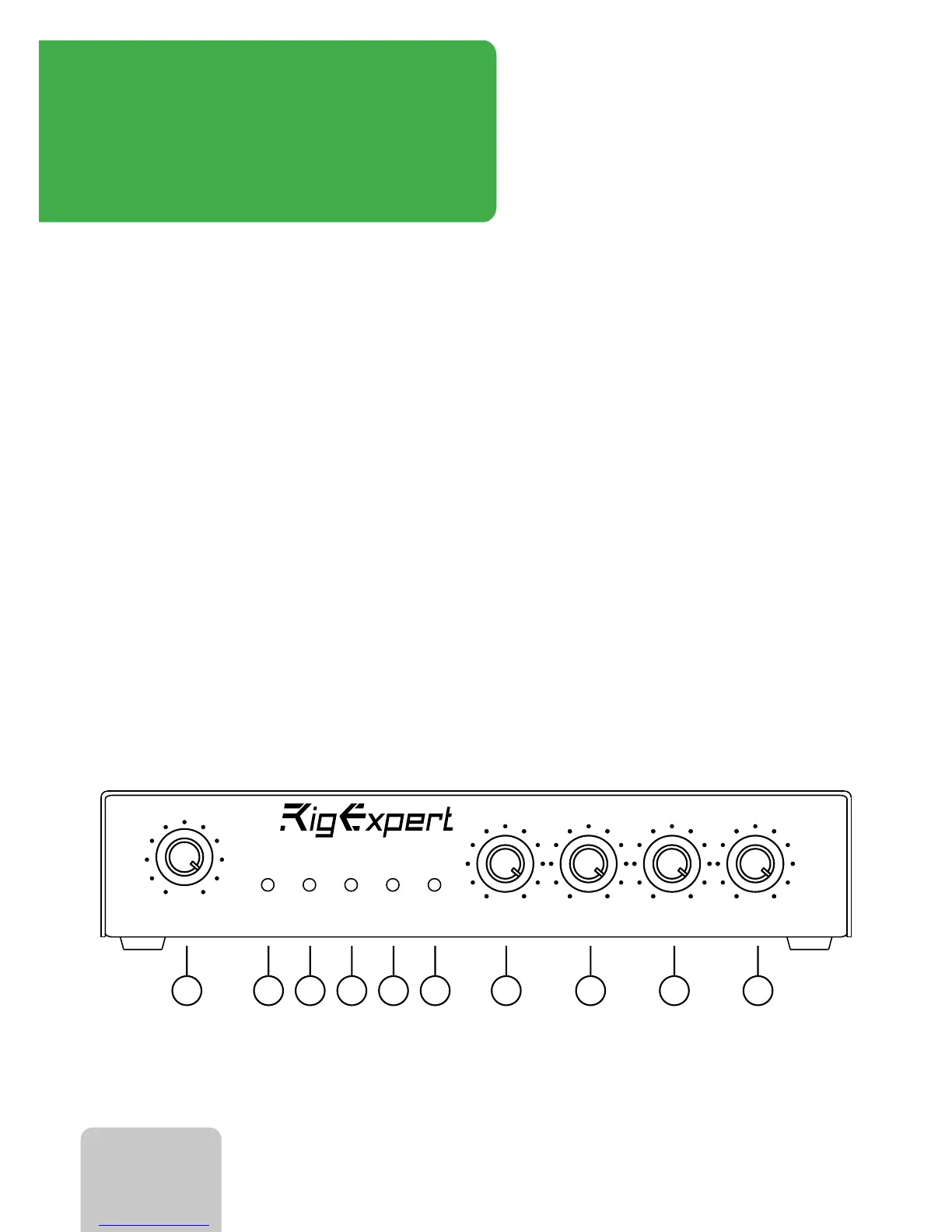

Front panel:
1. Speed. CW speed pot for the WINKEY
keyer. May be deactivated by software.
2. ON. Lights when the RigExpert TI-
5000 device is plugged in and the drivers
are installed.
3. CW. Shows transmissions in CW mode.
4. PTT. Indicates when the transceiver
transmits.
5. CAT. Monitors CAT data exchange
between transceiver and computer.
6. FSK. Lights when RigExpert TI-5000 is
sending FSK data.
7. Main. Input level, channel 1 (main
receiver audio).
8. Sub. Input level, channel 2 (sub-
receiver audio).
9. Mic. Microphone signal level.
10. Out. Output level (audio to the
transceiver).
Front and rear panels
