Rigol DG811 User Manual

RIGOL Chapter 2 Front Panel Operations
2-98 DG800 User's Guide
System Utility Function
To Restore Preset
Press Preset to restore the preset status interface, as shown in the figure below.

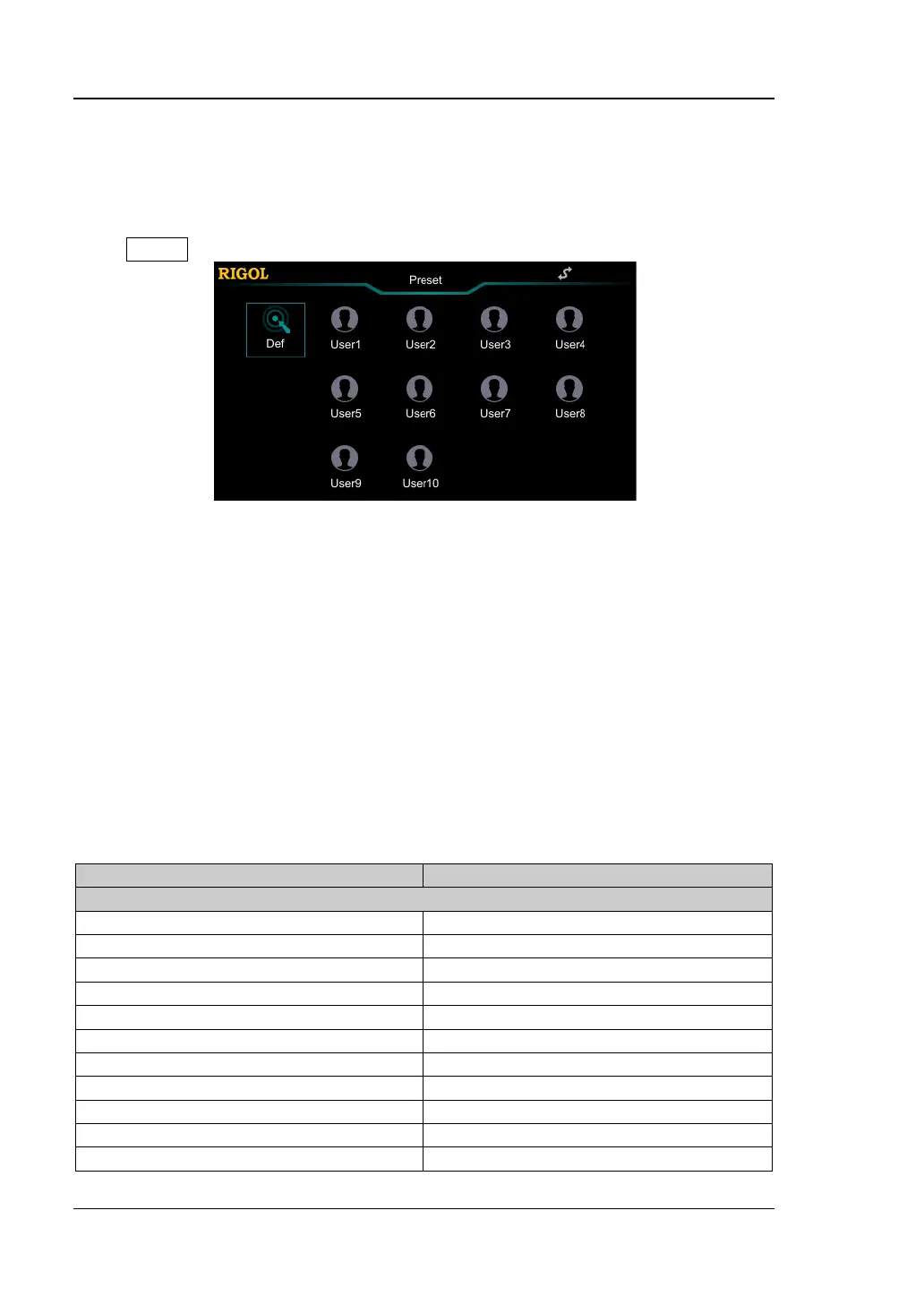

Figure 2-27 Preset Status Restore Interface
 Factory: Tap the Def icon, then a dialog box is displayed, tap "Apply" to restore
the system to its factory defaults.
 User save: Tap any one of the items from "User1" to "User10". Then a dialog
box is displayed. Tap "Save" to save the current system status to the internal
non-volatile memory as user-defined settings. To use the state again, tap the
icon (any one of the items from "User1" to "User10") to quickly recall the
setting. You can store up to 10 system states.
The defaults are shown in the following table. Note that the item with "*" is the
factory default value, and its value is related to the user setting during its usage but
not affected by the factory default restore operation.
Table 2-4 Factory Defaults
Parameter
Factory Settings
Channel Parameter
Current Carrier Waveform
Sine
Output Impedance
HighZ
Output Load
50 Ω
Channel Output
Off
Output Inverted
Off
Level Limit
Off
HighL Limit
0 V
LowL Limit
0 V
SyncState
Off
Sync Polarity
Negative
Freq Cpl
Off
