RIGOL Chapter 1 Test Overview
DL3000 Performance Verification Manual
Test Precautions
Connection methods for the input terminals (see Figure 1-1):

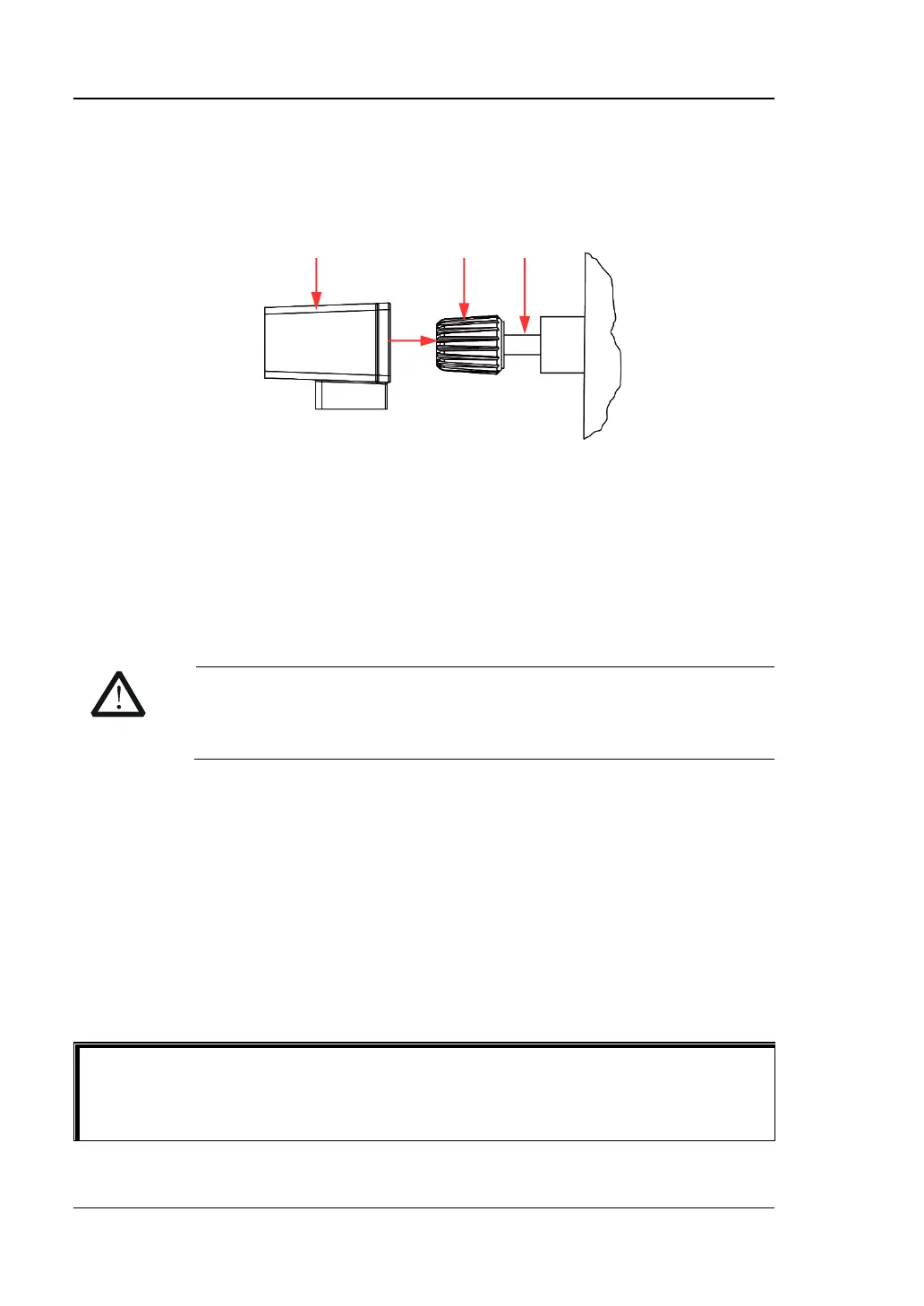

Figure 1-1 Connect Input Terminals
(1) Rotate the outer nut of the input terminal counterclockwise to remove it;
(2) Connect the test lead to Position A of the input terminal.
(3) Fasten the outer nut of the input terminal clockwise.
(4) Secure the shield to the terminal and then tighten the screw.
WARNING
To avoid electric shock, ensure that you have installed the shield
when the DC voltage output from the DUT is equal to or greater
than 70 V.
During the test, please shield the space radiation noise in the test environment to
avoid its impact on the test.
Test Result Records
Please record and save the test results for each test item. The "Appendix A: Test
Record Forms" in this manual provides the test record forms for all the models of
the DL3000 series. The form lists the test item and its corresponding performance
specification limits. You can record the test results in the form.
Tip
RIGOL recommends that you should copy a few pieces of the desired test record
forms before each test. During the test, you can record the test results in the
copied form to ensure that the form can be repeatedly used.
