Rigol DL3021 User Manual

RIGOL Chapter 2 Front Panel Operations
2-76 DL3000 User’s Guide
Input Control
Turn On/Off the Input
Once you power on the load, it will not sink the current immediately, and you need to
press the ON/OFF key to control the input of the load. When the input of the load is
enabled, the ON/OFF key is illuminated. At this time, when the load reaches the
starting voltage (Von), the load starts to sink the current. Then, "LOAD" at the top of
the main interface is highlighted and active. When the input of the load is disabled,
the ON/OFF key is not illuminated. At this time, the load stops sinking the current.
Then, "LOAD" at the top of the main interface is inactive and grayed out.
Von Latch Function
When the load is used to test the power supply product whose voltage rises or falls at
a relatively slow rate, latched protection may occur. The load provides the Von Latch
function. You can set Von to control the sinking function of the load, thus protecting
the DUT. The starting voltage is set in CC, Battery, OCP and OPP modes. The default
unit for Von is V, and it ranges from 0 V to 150 V.
 Enable the Von Latch Function
When the input voltage is greater than the set starting voltage (Von), the load
starts to sink the current. When the input voltage decreases and reaches below
the set starting voltage (Von), the load will not stop sinking the current. As
shown in Figure 2-44.

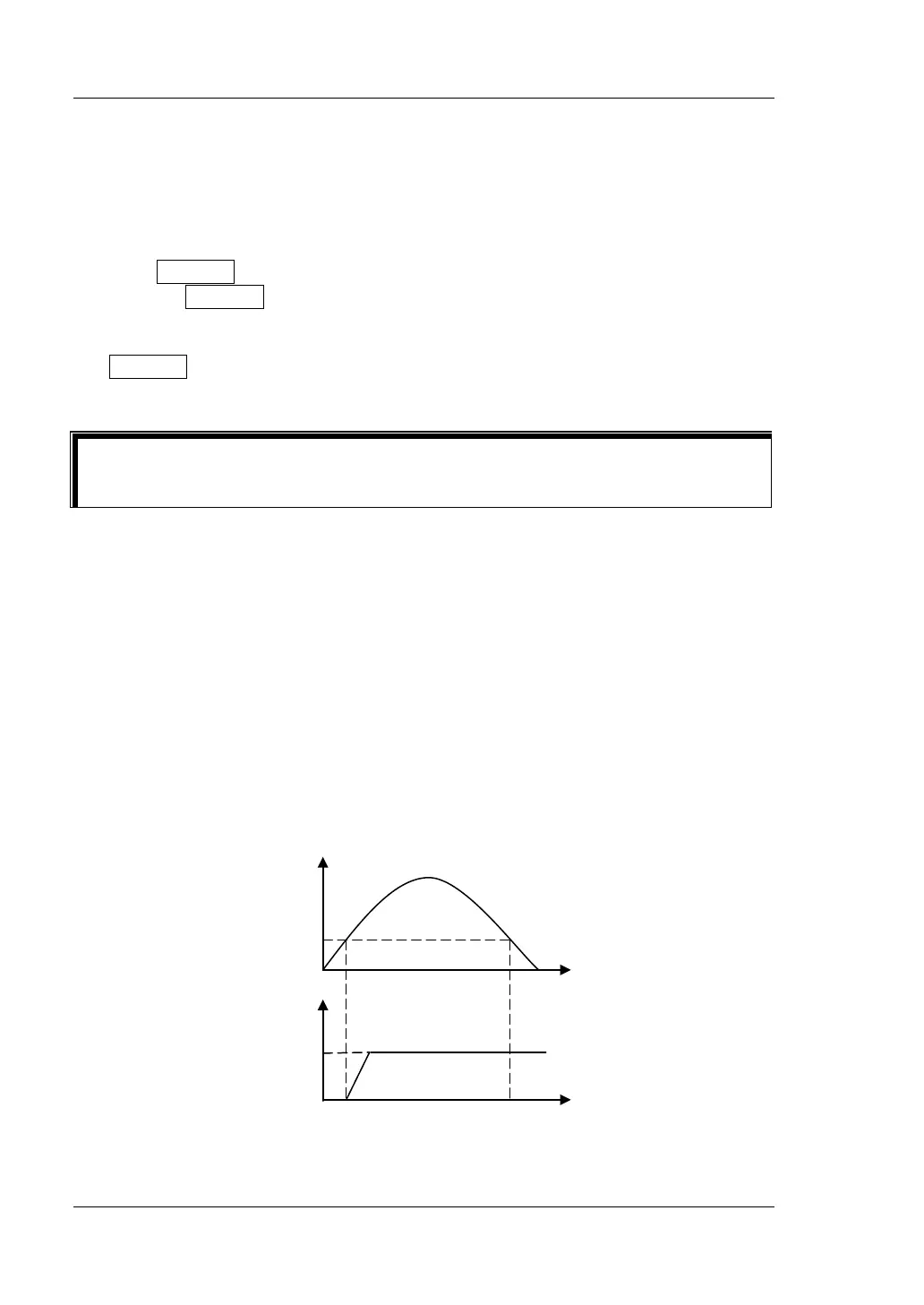

Figure 2-44 Enable the Von Latched Function
Tip
Enabling or disabling the input does not affect the set values of the current
parameters.
V
t
t
I
Von
Load sink current

Rigol DL3021 Specifications

General

Maximum Power	200 W
Maximum Voltage	150 V
Voltage Resolution	1 mV
Current Resolution	1 mA
Load Modes	CC, CV, CR, CP
Channels	1
Voltage Range	0 to 150 V
Display	4.3 inch TFT LCD
Interfaces	USB Host, USB Device
Voltage Accuracy	±(0.03% + 5 mV)
