The front panels of different models of DP800A series are shown in the figures below.
In this section, DP831A (as shown in Figure 3) is taken as an example to introduce
the front panels of DP800A series.

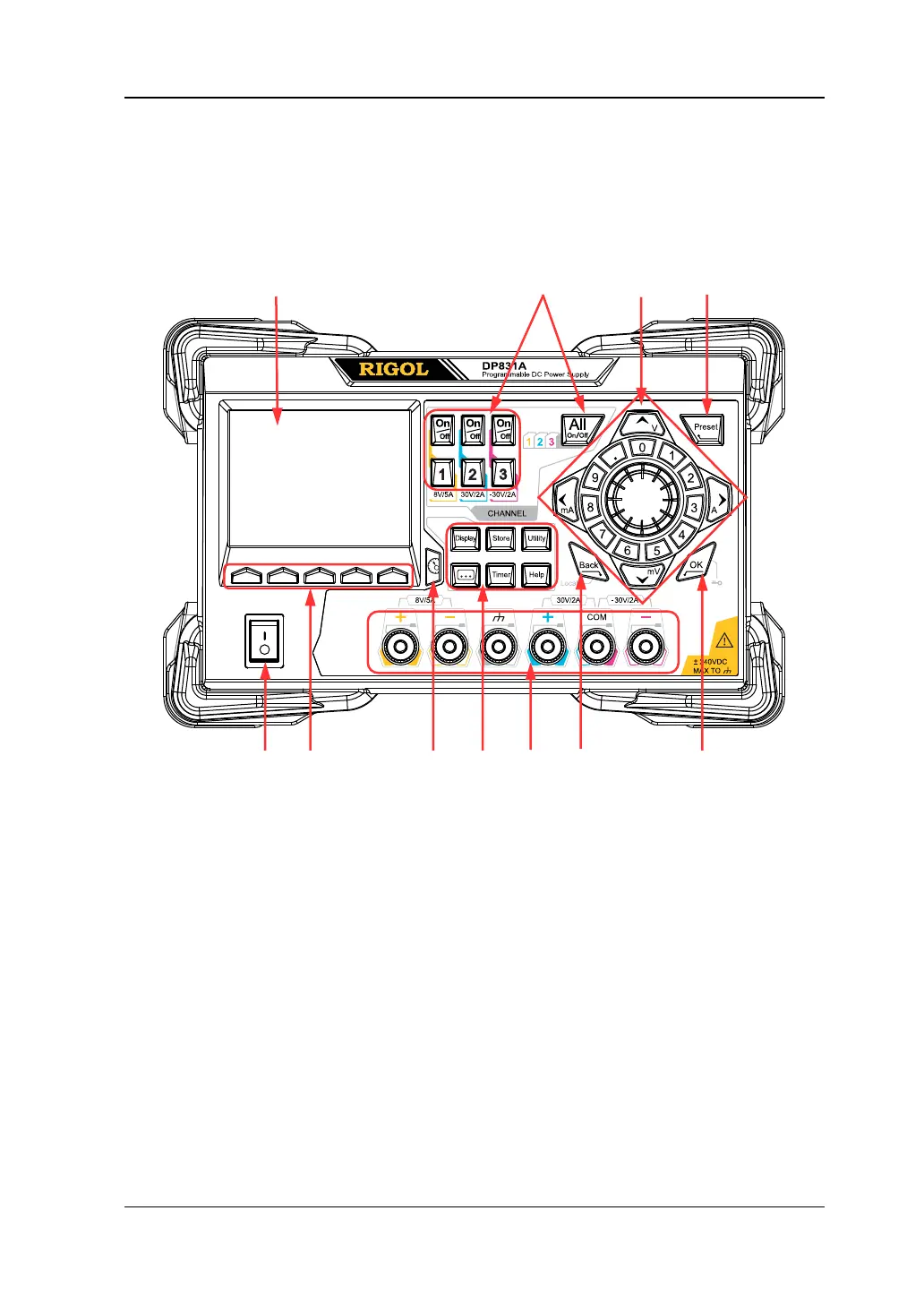

Figure 3 DP831A Front Panel
1 2 3 4
11 10 9 8 7 6 5
