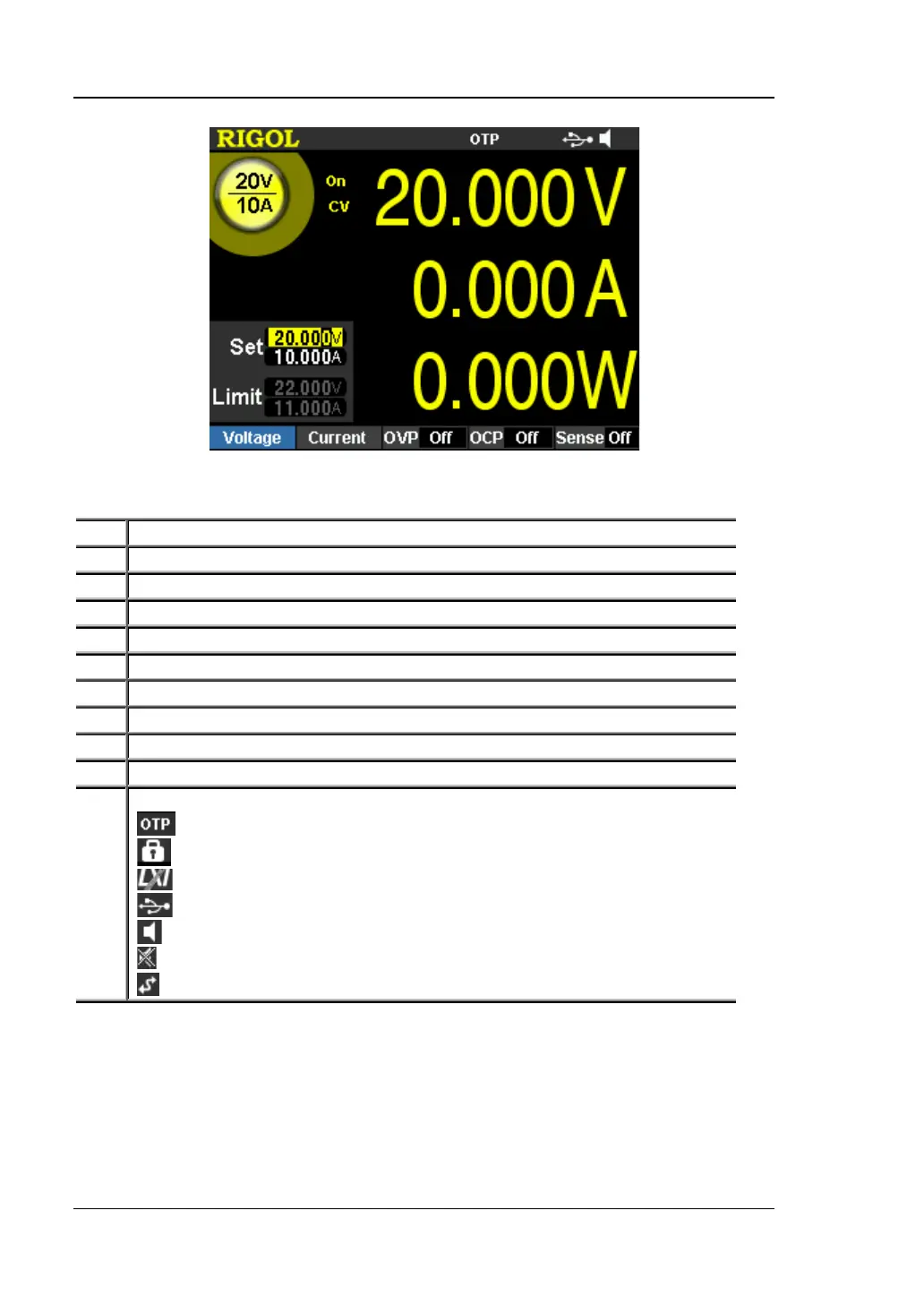

Figure 10 DP811A User Interface (Normal)
Table 2 DP800A User Interface Explanation
1
Voltage and current setting values
2
Overvoltage and overcurrent protection setting values
3
Actual output voltage
4
Actual output current
5
Actual output power
6
Channel output mode
7
Menu bar
8
Channel number
9
Channel output status
10
Channel currently selected
11
Status bar, display the system status indicators.
: over-temperature protection is enabled.
: the front panel is locked.
: LAN is connected successfully.
: USB device is recognized.
: system sound is enabled.
: system sound is disabled.
: remote control is connected
