RIGOL Chapter 2 Front Panel Operations
2-66 DP800 User’s Guide
To Recall the User-defined Setting
In the interface as shown in Figure 2-15, press Preset Key to select the specified
user-defined setting (take user-defined setting 1 as an example) to enter the
user-defined setting interface (the current user-defined setting is displayed in the
interface) as shown in Figure 2-16
. At this point, pressing Preset at the front panel
will recall the corresponding user-defined setting.

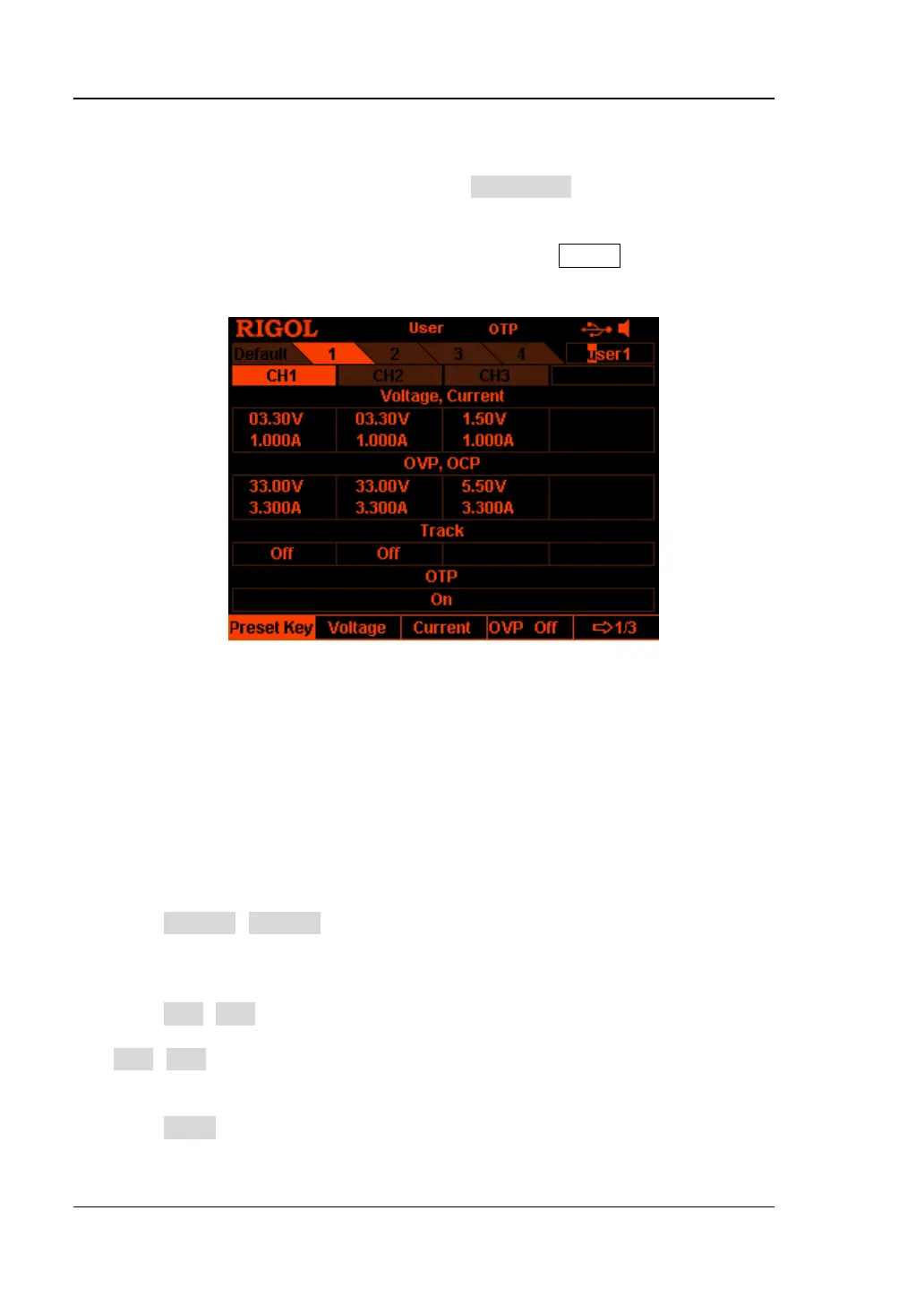

Figure 2-16 User-defined Setting Interface
You can set the user-defined setting currently selected according to the steps below
in the interface as shown in Figure 2-16.
1. Use the left/right direction key and knob to edit the name of the current
user-defined setting (the default names of the 4 user-defined settings are user1,
user2, user3 and user4 respectively).
2. Press the channel selection keys at the front panel to select the desired channel
(the channel currently selected is highlighted).
3. Press Voltage (Current) and use the numeric keyboard or the left/right
direction key and knob to set the voltage (current) of the channel currently
selected.
4. Press OVP (OCP) and use the numeric keyboard or the left/right direction key
and knob to set the OVP (OCP) value of the channel currently selected. Press
OVP (OCP) repeatedly to enable or disable the OVP (OCP) function of the
channel currently selected.
5. Press Track repeatedly to enable or disable the track function of the channel
currently selected.
