Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-25
To Save and Read the Timer File
You can store the timer parameters edited manually or using the templet in internal
or external memory and recall them when required.
1. Save
After editing the timer parameters, press Save to enter the store and recall
interface. The file type is fixed at "*.rtf" and please save the timer file according
to the introduction in "
Save".
2. Read
Press Read to enter the store and recall interface. The file type is fixed at "*.rtf"
and please read the desired file according to the introduction in "
Read". Users
can edit the timer file read.
To Enable the Timer
After setting the timer parameters, return to the timer and delayer interface (as
shown in Figure 2-1). Press Timer to enable the timing output. The timing output
interface is as shown in the figure below.

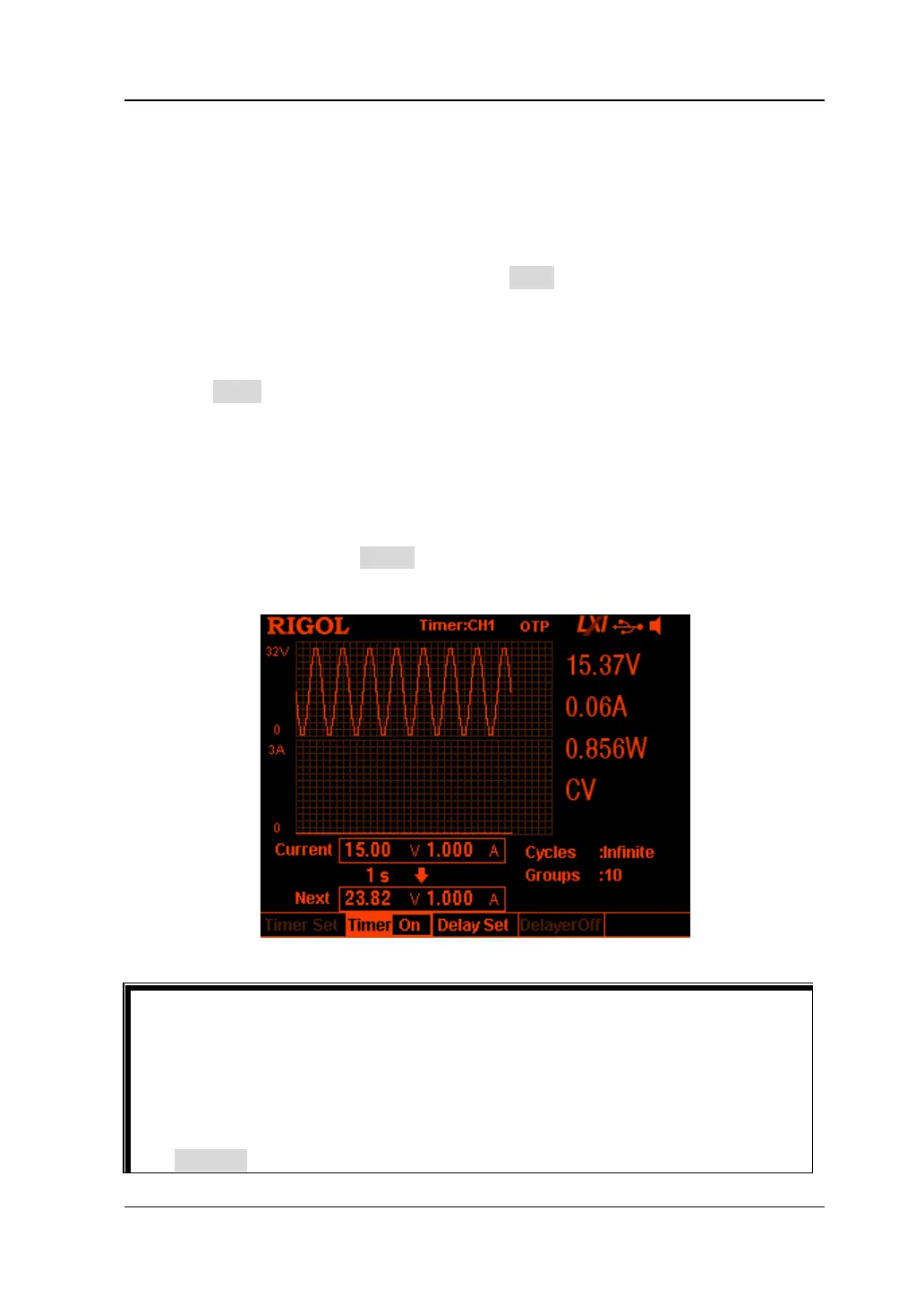

Figure 2-3 Timing Output Interface
Tip
 Enabling the timer will change the output value of the channel; make sure
that the change in the output value will not affect the device connected to
the power supply before enabling the timer.
 The timing output is valid only when both the timer and the channel output
are turned on.
 When the timer is enabled, the timer parameters cannot be modified and
Delayer is grayed out and disabled.
