Rigol DP832 Firmware Upgrade Instructions

Page 4
12. When three elipses (…) are viewed on the display, Press the Help key to
place the unit into Upgrade Mode. This is indicated on the display.
13. Power cycle the DP800.

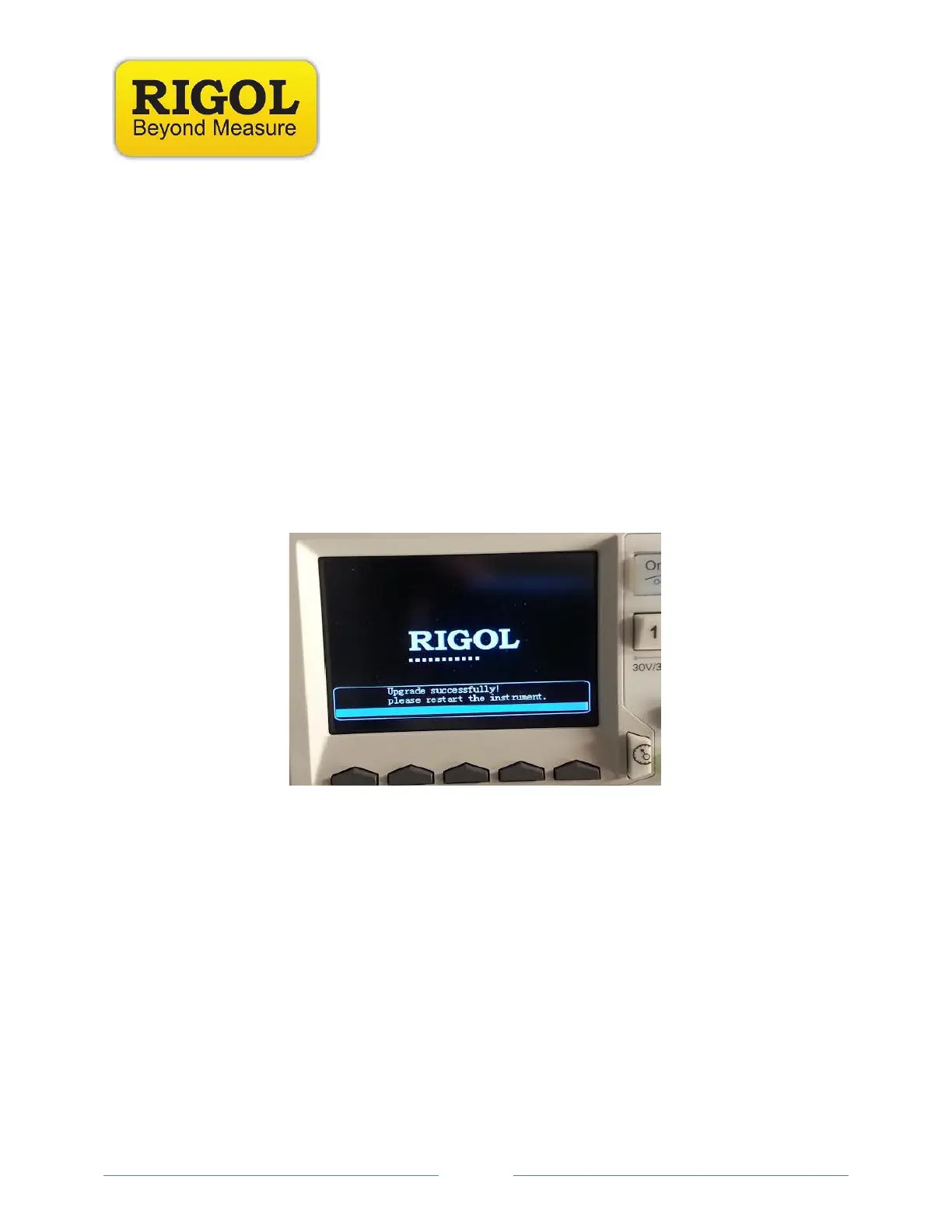

14. After the boot loader program is updated, the instrument will indicate that
you can power cycle.
15. Press the “help” button twice to bring up the help menu screen
16. Press M4>M2>M1 buttons to update analog board 1.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
