Rigol DS1052E - Waveform Recording

1

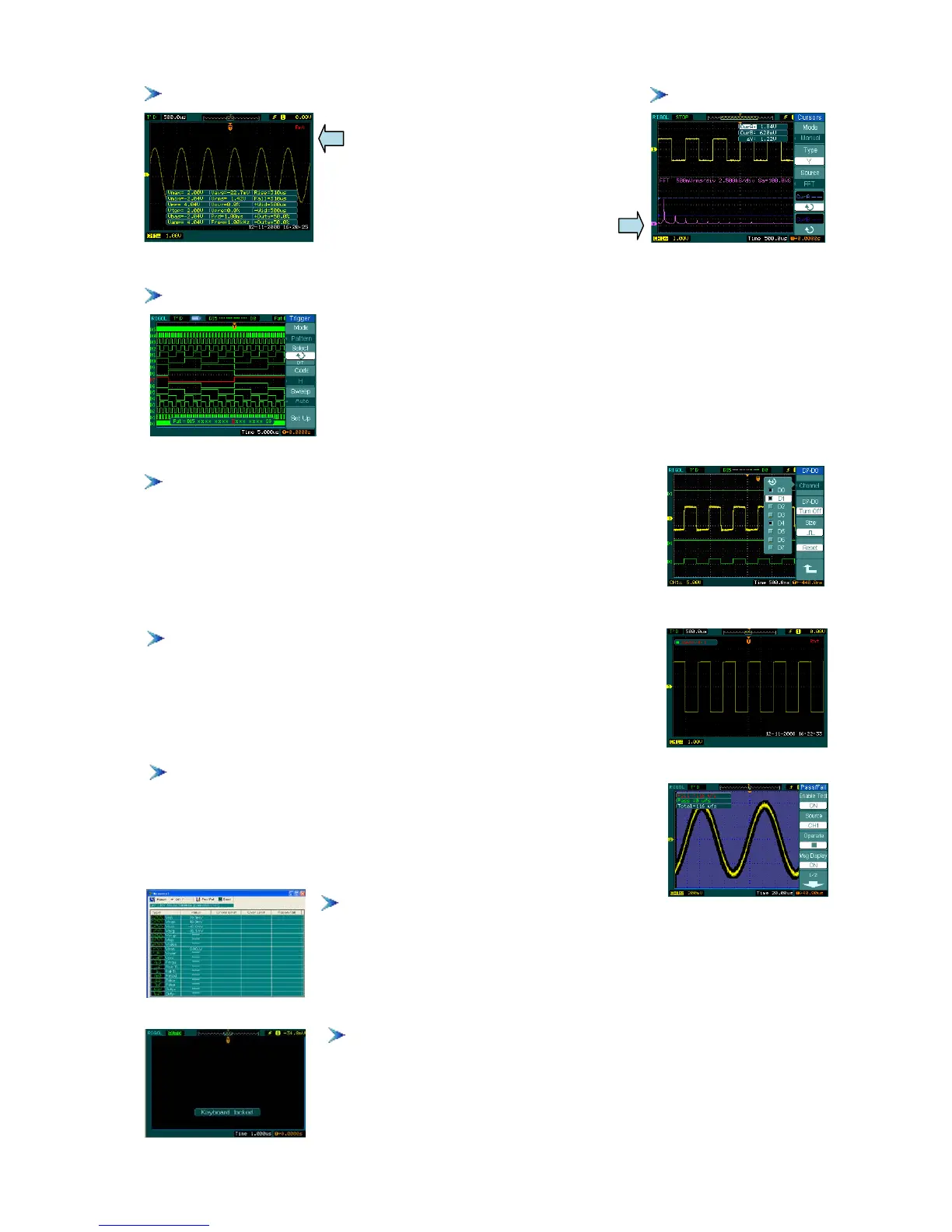

Automatically Measure 20 Wave Parameters
Automatic measure FFT cursor measure
Digital channels setup
Waveform recording
Cursor Measure
Pattern trigger
Key Lock function
This function is widely used in most productions. All keys are locked
except F1 to F5 and MENU ON/OFF in this mode.
To lock the keyboard, use menu; to unlock, correct code has to be input.
Also, you can reset a new code if necessary.
RIGOL provides powerful PC application software: UltraScope, which
enables to: Capture and measure wave; Perform local or remote
operation; Save waves as “.bmp” format; Save files as “.txt” or “.xls”
format; Print waveforms.
Measurement window
UltraScope Software
Key Lock
Pass/Fail testing
16 Channels Logic Analyzer
Being equipped with 16 channels logic analyzer, DS1000D series mixed
signal oscilloscopes achieve mixed signal measure coordinating with 2
analog channels.
Each channel can be turned on or off independently, or in groups of
8(D7-D0 and D15-D8); also, you can set waveform size and threshold
types or change the display position on screen for digital channel.
Waveform Recording
In virtue of waveform recording function from DS1000E and DS1000D, not
only the outputs from two channels could be recorded, but also the waves
outputted by Pass/Fail test could be easily recorded. Totally, up to 1000
frames of waves are available to record. Besides, users can analyze waves
according to reall or save
transient waves so as to get more exact datum.
Pass/Fail Testing
The Pass/Fail function monitors the changes of signals by comparing
whether the input signal is within the pre-defined mask. The testing results
not only can be displayed on screen or output by isolated pass/fail port, but
also can be alarmed according to turn on system sound.
DS1000E, DS1000D series oscilloscopes
provide 20 types of wave parameters for
automatically measuring, which contains
10 Voltage and 10 Time parameters.
Both DS1000E and DS1000D series contain abundant triggers:
 Edge trigger, Pulse Width trigger, Video trigger, Slope trigger
 Alternate trigger, Pattern trigger (DS1000D), Duration trigger
(DS1000D)
Especially the duration trigger is a new type from perfect combination of
patten and pulse width trigger. Unique function of adjustable trigger
sensitivity is good for filtering possible noise from signal in order to avoid
false triggers.
Multiple Trigger
In cursor mode, users can easily
measure by moving cursor. Besides, 3
types of cursor measurement are
optional: Manual, Track and Auto.
