User’s Guide for DS1000E, DS1000D Series
2-101
Auto Mode
Press Cursor→Mode→Auto to display the auto mode menu.

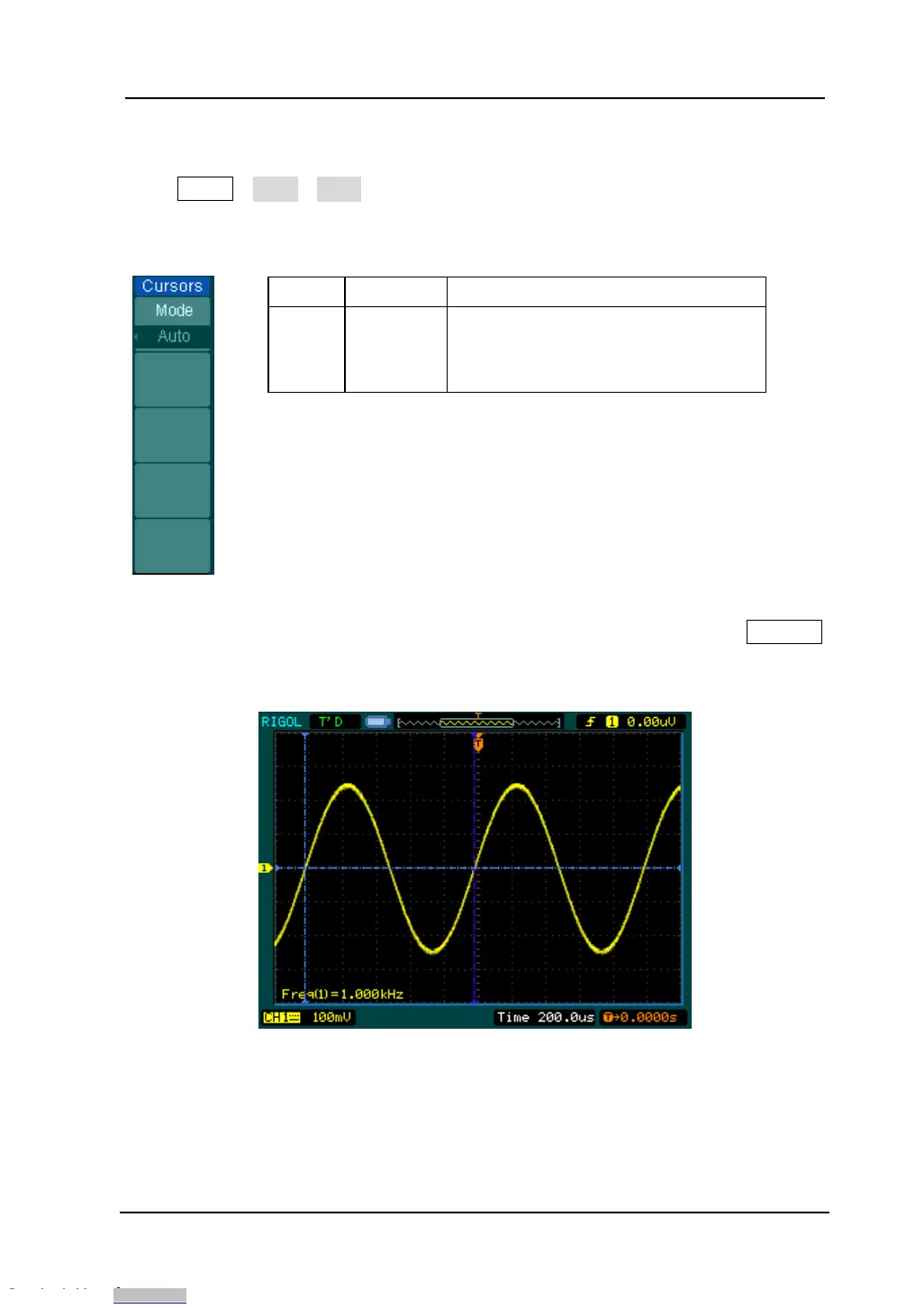

Figure 2- 138 Table 2- 89 The Auto Mode Menu
Menu Settings Comments
Mode Auto
Display the cursors for
the current
automatic measuring. (See the
following figure)
There will be no cursor display if no parameters are chosen in Measure menu. The
oscilloscope could move cursor automatically to measure 22 parameters in Measure
menu.
Figure 2- 139
Auto Measure Mode of Cursor Measurement
