RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series

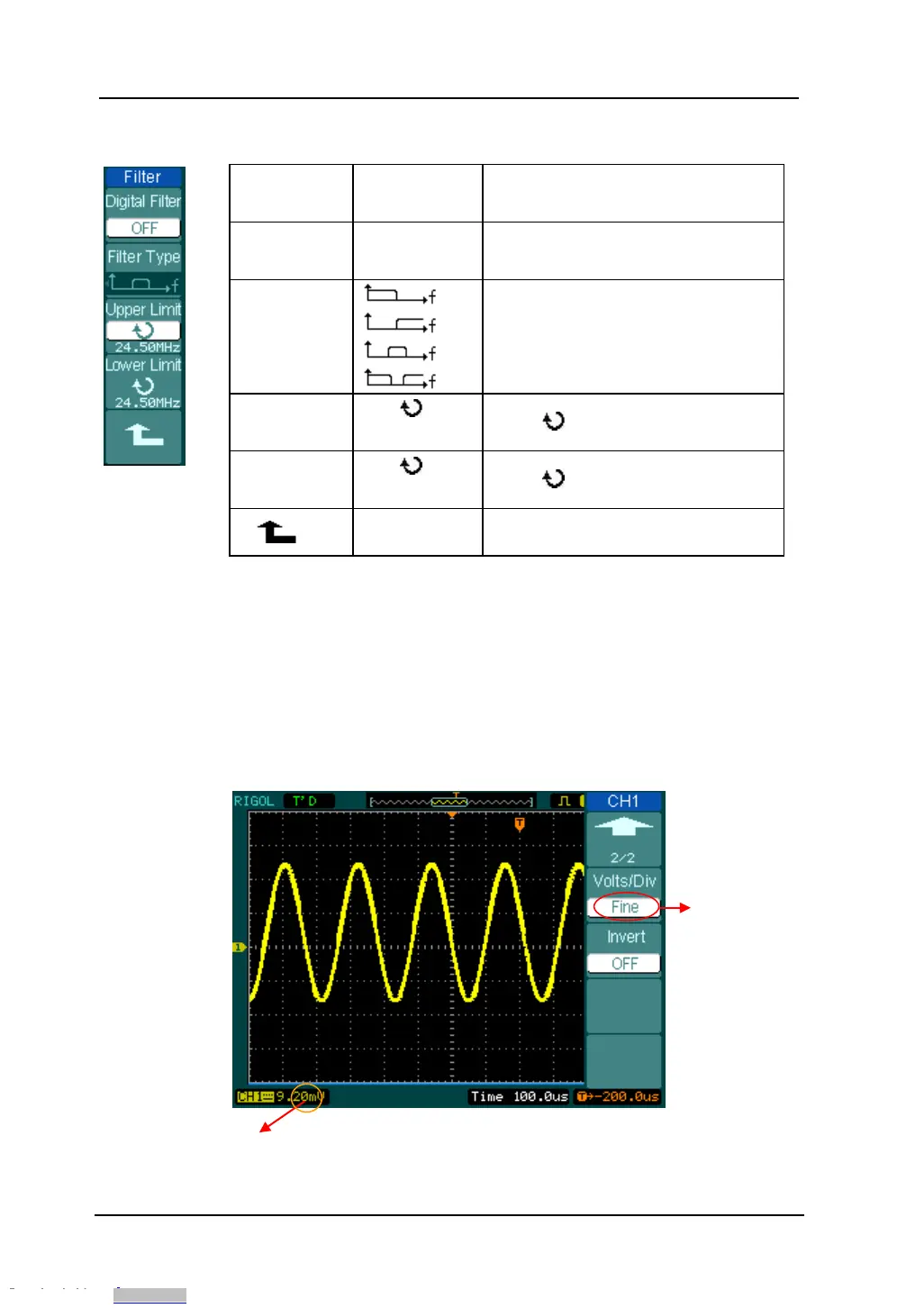

Figure 2- 11 Table 2- 4 The Filter menu
Menu Settings Comments
Digital Filter
ON
OFF
Turn on the digital filter
Turn off the digital filter
Filter Type
Setup as LPF (Low Pass Filter)
Setup as HPF (High Pass Filter)
Setup as BPF (Band Pass Filter)
Setup as BRF (Band Reject Filter)
Upper limit
<frequency>
Turn (
) knob to set high limit
Lower limit
<frequency>
Turn (
) knob to set low limit
Back to higher level menu (The
followings are the same)
5. Volts/Div settings
The Volts/Div control has Coarse or Fine configuration. The Vertical Sensitivity is
2mV/div - 10V/div. Coarse: It is the default setting of Volts/Div in a 1-2-5-step
sequence from 2mV/div, 5mV/div, 10mV/div, 20mV/div……10V/div. Fine: This
setting changes the vertical scale to small steps between the coarse settings. It will
be helpful to adjust the waveform in smooth steps.
Figure 2- 12 Fine configurations
Fine adjustment
Fine adjustment data
