Rigol DS1102D User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-41
NOTE
[1]
: The line number ranges can be set from 1 to 525 under NTSC standard,
and from 1 to 625 under PAL/SECAM.

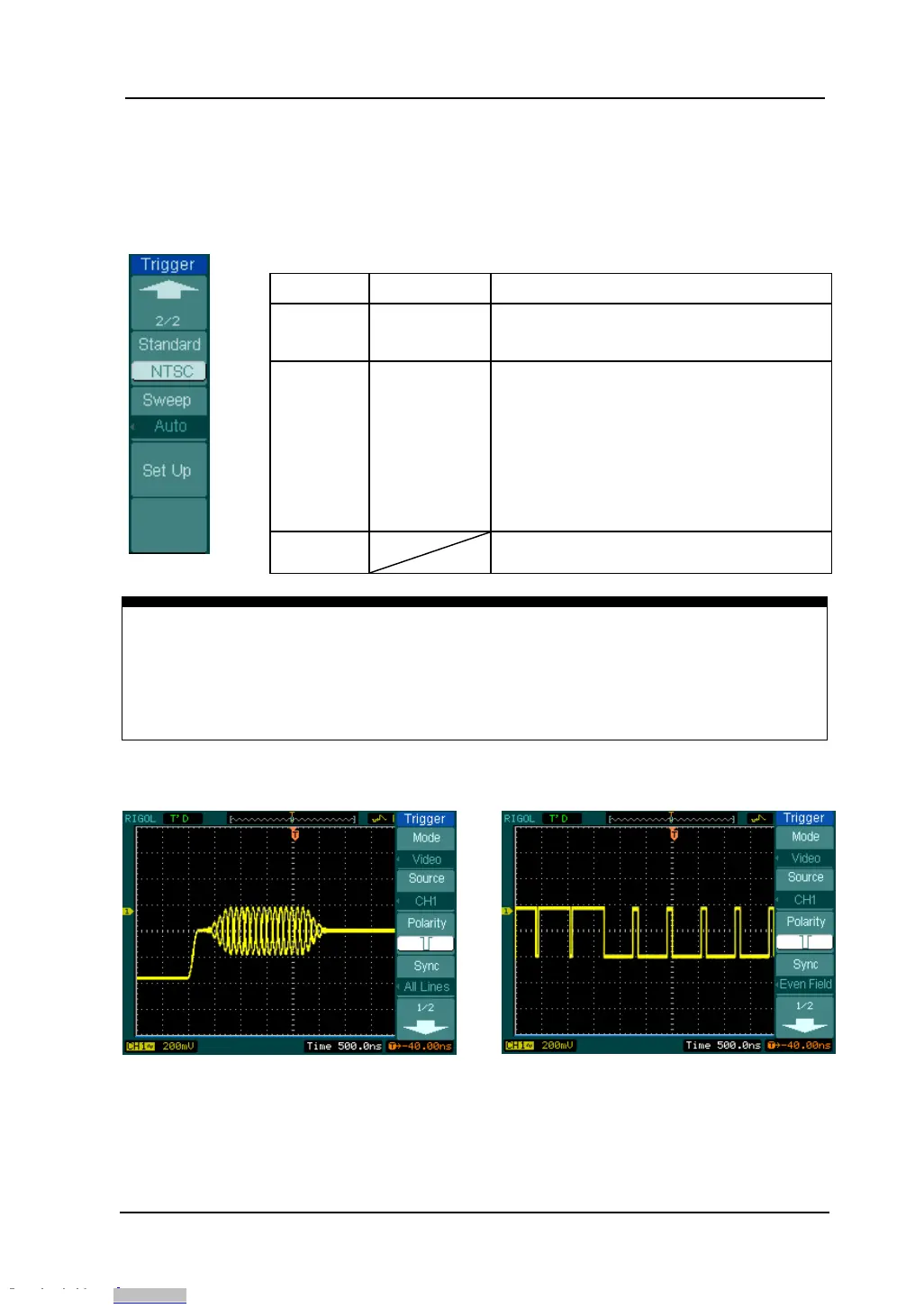

Figure 2- 49 Table 2- 27 The Video Menu (When the Sync is set as All lines, Odd
field and Even field)
Key points
Sync Pulses: When positive polarity is selected, the trigger always occurs on
negative-going sync pulses. If the video signal has positive-going sync pulses,
use the negative polarity selection.
Figure 2- 50 Figure 2- 51
Video Trigger: Line Synchronization Video Trigger: Field Synchronization
Menu Settings Comments
Standard
PAL/SECAM
NTSC
Select Video standard
Sweep
Auto
Normal
Single
Acquire waveform even no trigger
occurred
Acquire waveform when trigger
occurred.
When trigger occurs, acquire one
waveform and then stop
Set Up To go to set up menu, see table 2-39
