Rigol DS1102E Quick Guide

RIGOL
Quick Guide for DS1000E, DS1000D Series
5
How to Connect Logic Analyzer
DS1000D Series Oscilloscopes provide the Logic Analyzer to meet
users’ requirement.
1. Before connect the logic analyzer, please turn off the power
source to avoid any possible damage during the connection.

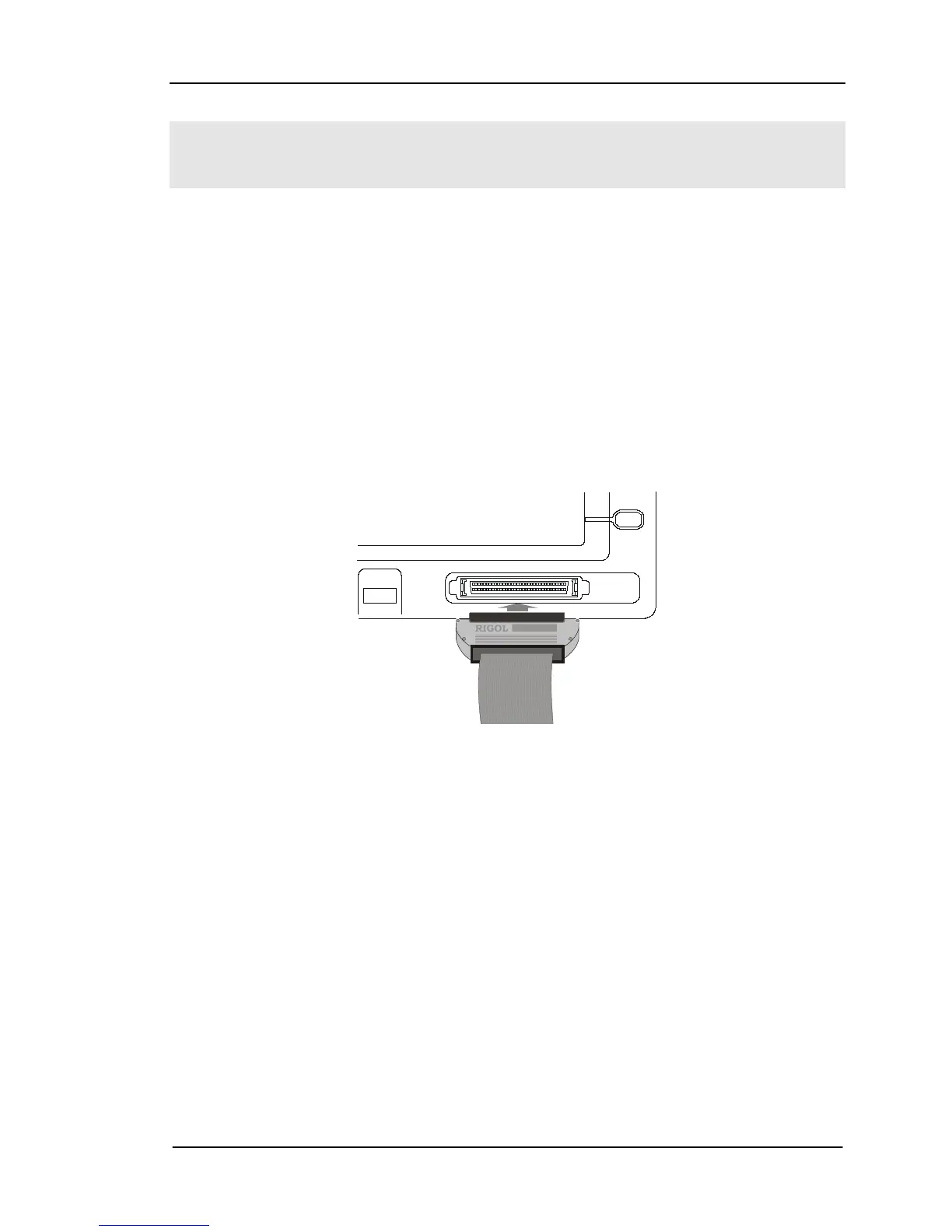

Connect Logic Analyzer
2. Connect the Logic cable to the digital input port on the front
panel of the oscilloscope as shown in the above figure. There is
a sign on the Logic Probe that you can only connect the cable in
the proper direction.

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
