Rigol DS1102E Declassification Guide

RIGOL
Declassification Guide for Digital Oscilloscope
2

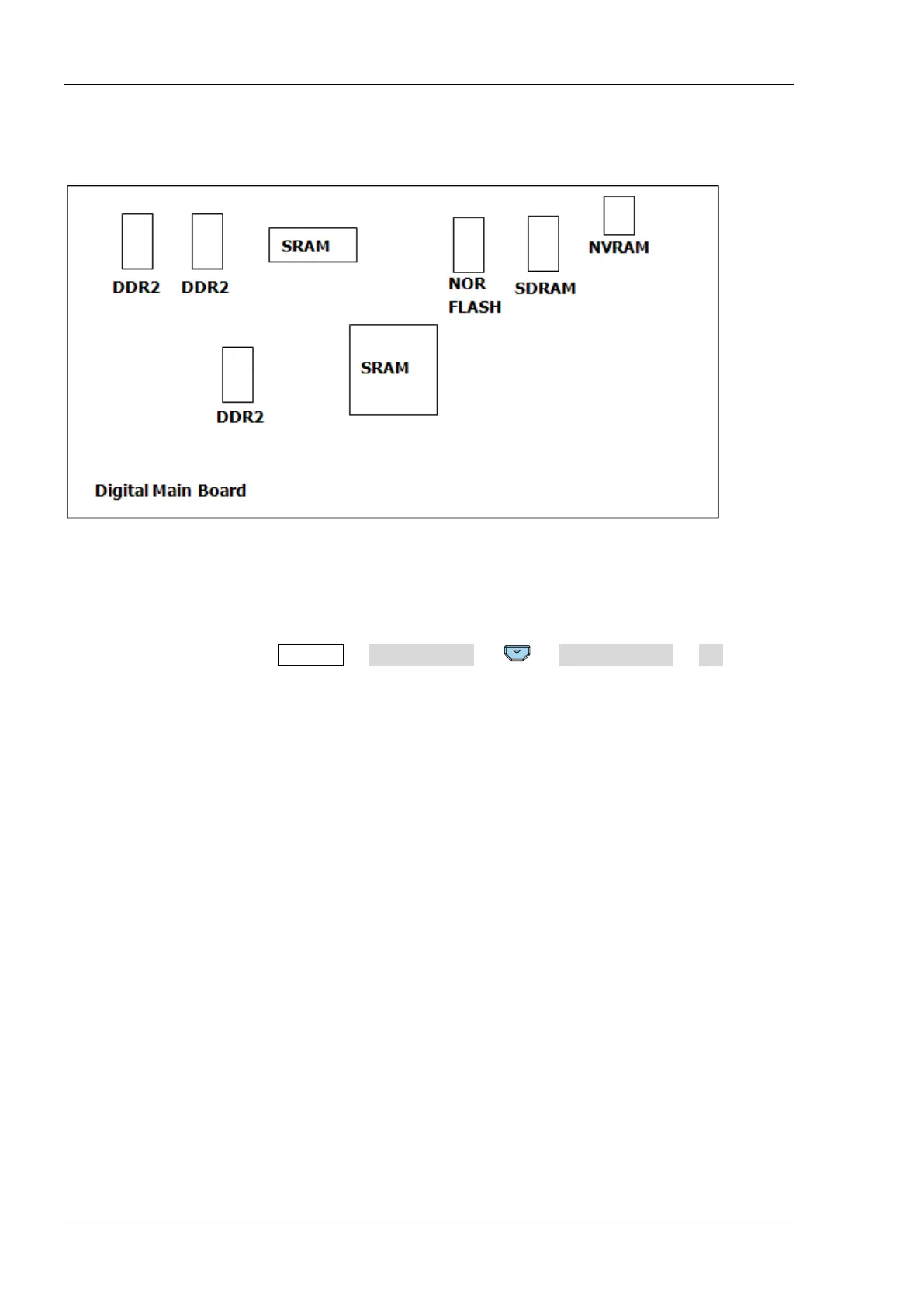

Position of Instrument Memory on Main Board
Security Clear Procedure
To clear the memories, press Storage  Disk.Manage   Security Clear  OK and the
system will be restored to the default settings.

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
