RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series

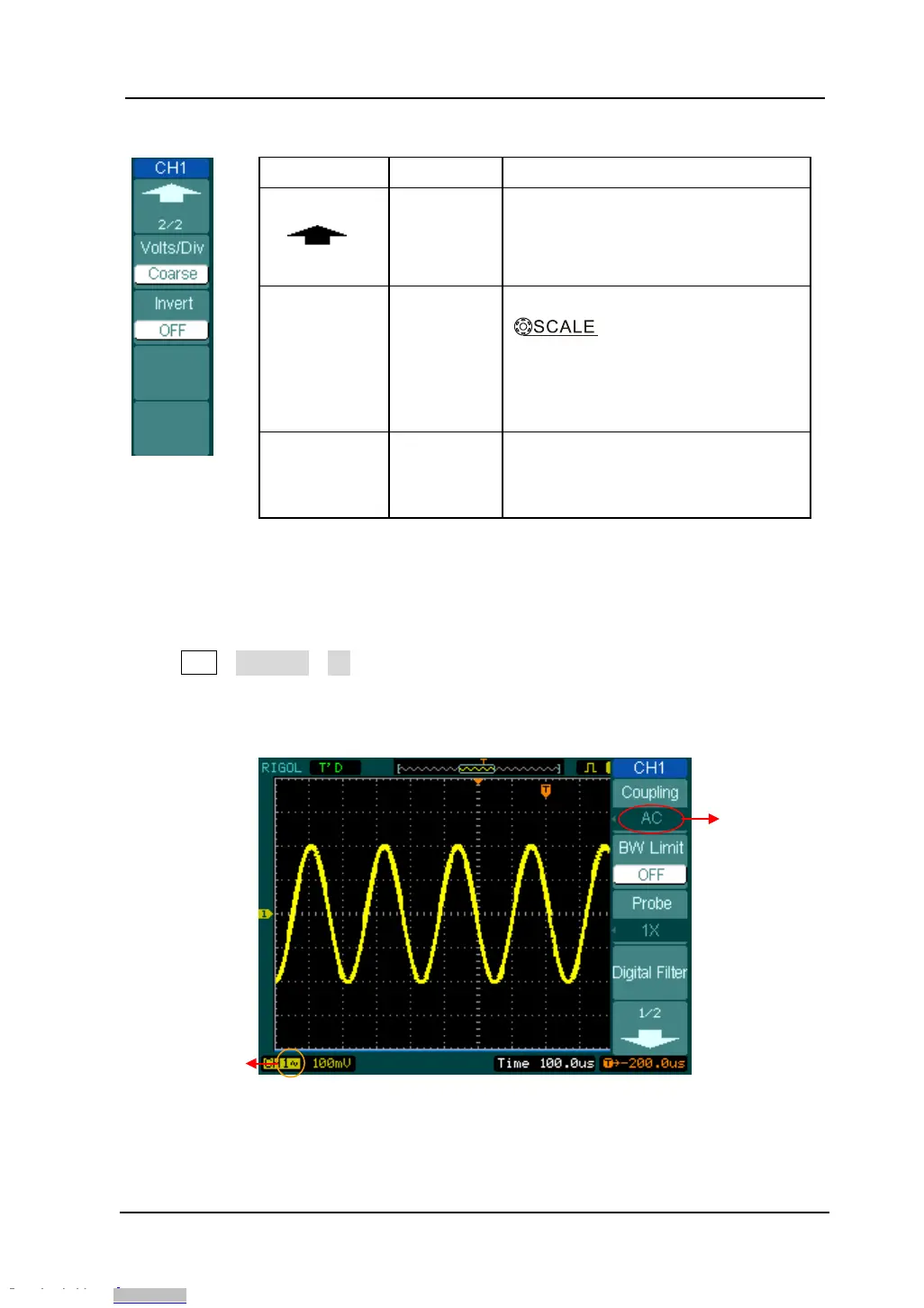

Figure 2- 2 Table 2- 2 The Channel Menu (Page 2/2)
Menu Settings Comments
2/2
Back to the previous menu page
(The followings are the same, no
more explanation)
Volts/Div
Coarse
Fine
Selects the resolution of the
knob
Defines a 1-2-5 sequence.
To change the resolution to small
steps between the coarse settings.
Invert
ON
OFF
Turn on the invert function.
Restore
waveform.
1. Channel coupling
To use Channel 1 as an example, input a sine wave signal with DC shift.
Press CH1→Coupling→AC to set “AC” coupling. It will pass AC component and
blocks the DC component of the input signal. The waveform is displayed as Figure 2-
3:
Figure 2- 3
AC coupling setting
setup
status symbol
