MSO1000Z/DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to Digital Channel Interface
at the front panel of MSO1000Z in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test.
MSO1000Z is provided with the RPL1116 logic probe which provides two
connecting methods to connect to the signal under test to realize convenient
and flexible detection. For the details, please refer to the
RPL1116 Logic Probe
User’s Guide
.

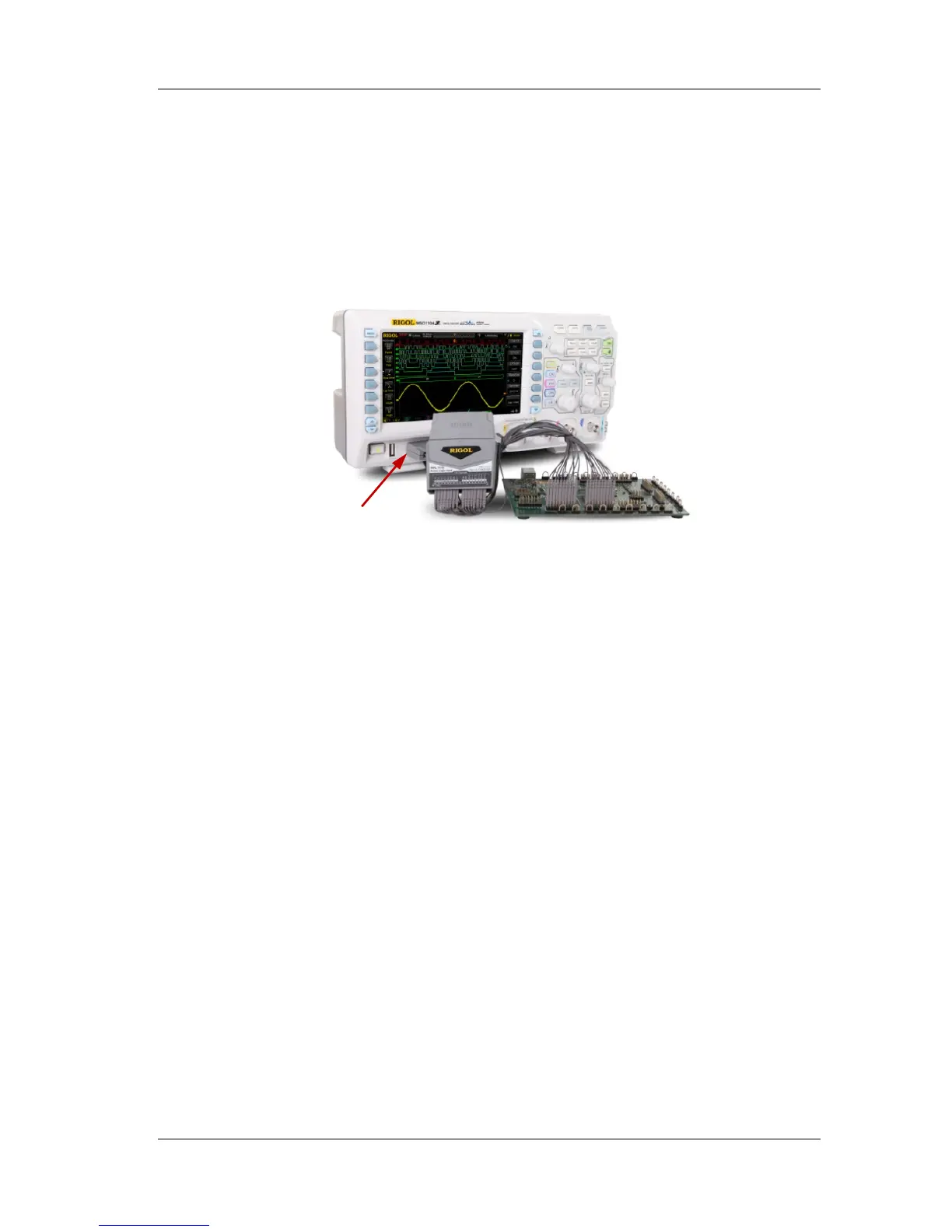

Figure 6 To Connect the Logic Probe
Digital Channel Interface

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
