To Use the Rack Mount Kit
This oscilloscope can be mounted in a standard 19-inch rack cabinet that conforms to
the Electric Industrial Association (EIA) standard. If needed, please buy and install
the corresponding option.

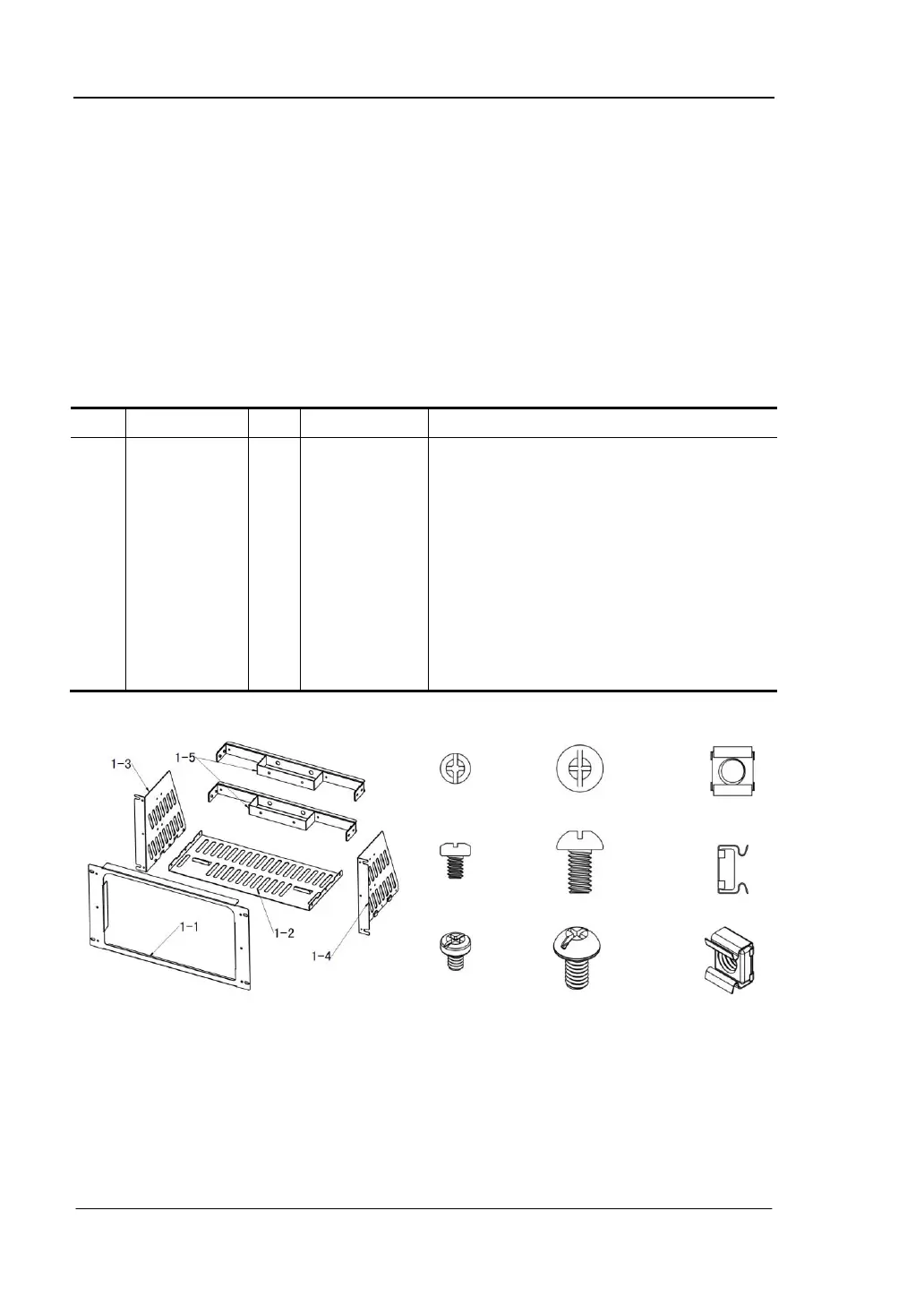

Kit Parts List
NO.
Name
Qty
Part No.
Description
1-1
Front Panel
1
RM-DS-6-01
1-2
Support Board
1
RM-DS-6-02
1-3
Left Plate
1
RM-DS-6-03
1-4
Right Plate
1
RM-DS-6-04
1-5
Fixed Figure
2
RM-DS-6-05
2-1
M4 Screw
24
RM-SCREW-01
M4 x 6 Phil-Slot Pan Head Machine Screw Nail
2-2
M6 Screw
4
RM-SCREW-02
M6 x 16 Phil-Slot Pan Head Machine Screw Nail
2-3
M6 Screw
4
RM-SCREW-03
M6 x 5 Square Machine Female Screw Contain
Lock Blade
2-1 2-2 2-3
Installation Tool
