MSO1000Z/DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to Digital Channel Interface
at the front panel of MSO1000Z in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test.
MSO1000Z is provided with the RPL1116 logic probe which provides two
connecting methods to connect to the signal under test to realize convenient
and flexible detection. For the details, please refer to the
RPL1116 Logic Probe
User’s Guide
.

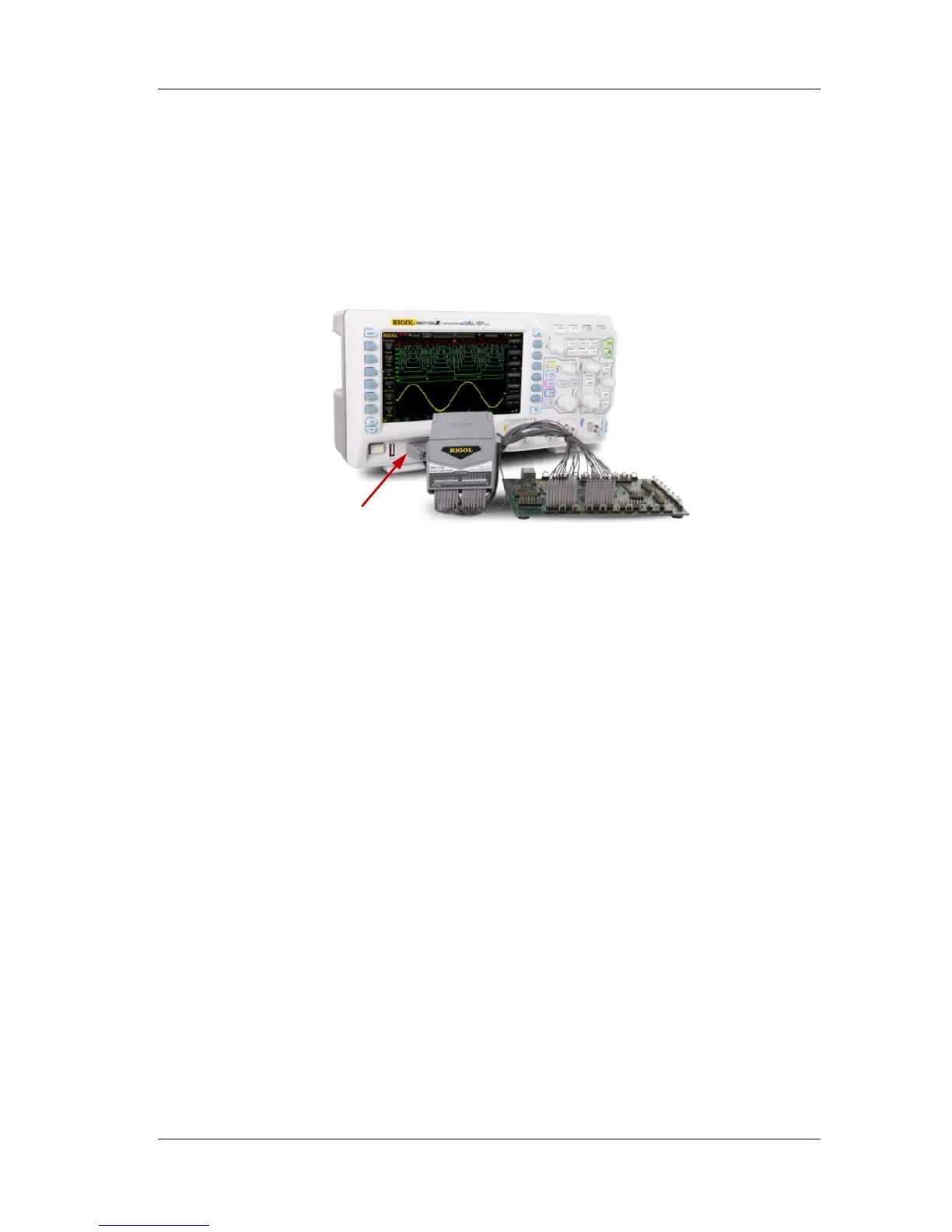

Figure 6 To Connect the Logic Probe
Digital Channel Interface
