MSO1000Z/DS1000Z Quick Guide
13

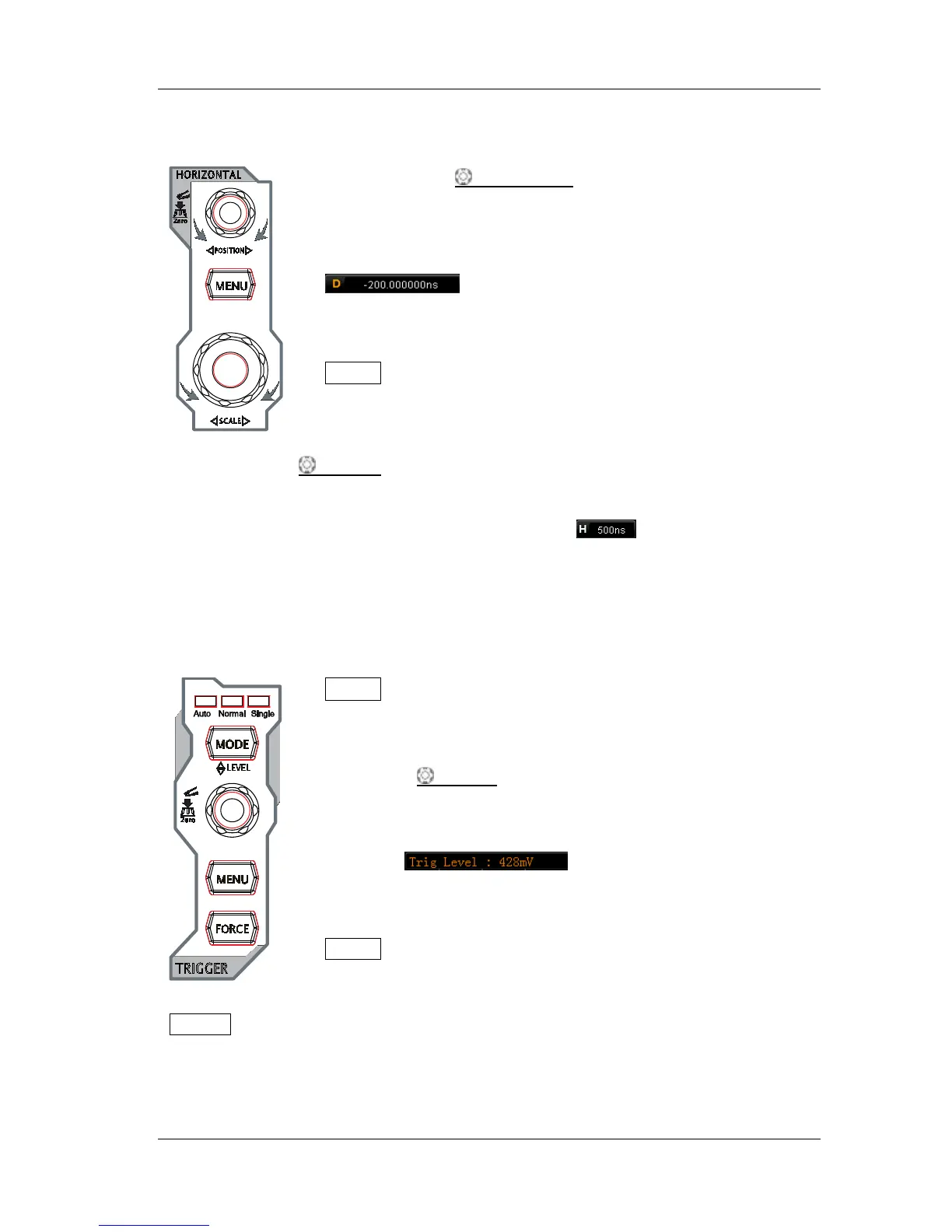

HORIZONTAL
HORIZONTAL POSITION: modify the horizontal
position. The trigger point would move left or right relative to
the center of the screen when you turn the knob. During the
modification, waveforms of all the channels would move left or
right and the horizontal position message (e.g.
) at the upper-right corner of the screen
would change accordingly. Press down this knob to quickly
reset the horizontal position (or the delayed sweep position).
MENU: press this key to open the horizontal control menu
where you can turn on or off the delayed sweep function and
switch between different time base modes.
HORIZONTAL SCALE: modify the horizontal time base. Turn clockwise to
reduce the time base and turn counterclockwise to increase the time base. During
the modification, waveforms of all the channels will be displayed in expanded or
compressed mode and the time base message (e.g.
) at the upper side of
the screen would change accordingly. Press down this knob to quickly switch to
delayed sweep state.
TRIGGER
MODE: press this key to switch the trigger mode to Auto,
Normal or Single and the corresponding state backlight of
the current trigger mode would be illuminated.
TRIGGER
LEVEL: modify the trigger level. Turn clockwise
to increase the level
and turn counterclockwise to reduce the
level. During the modification, the trigger level line would
move up and down and the
value in the trigger level message
box (e.g. ) at the lower-left corner of the
screen would change accordingly. Press down the knob to
quickly reset the trigger level to zero point.
MENU
: press this key to open the trigger operation menu.
This oscilloscope provides various trigger types, please refer to
the introduction in
MSO1000Z&DS1000Z User Guide.
FORCE: press this key to generate a trigger signal forcefully.
