Chapter 1 Disassemble and Assemble RIGOL
MSO4000/DS4000 Service Guide 1-5
To Disassemble the Rear Metal Cover

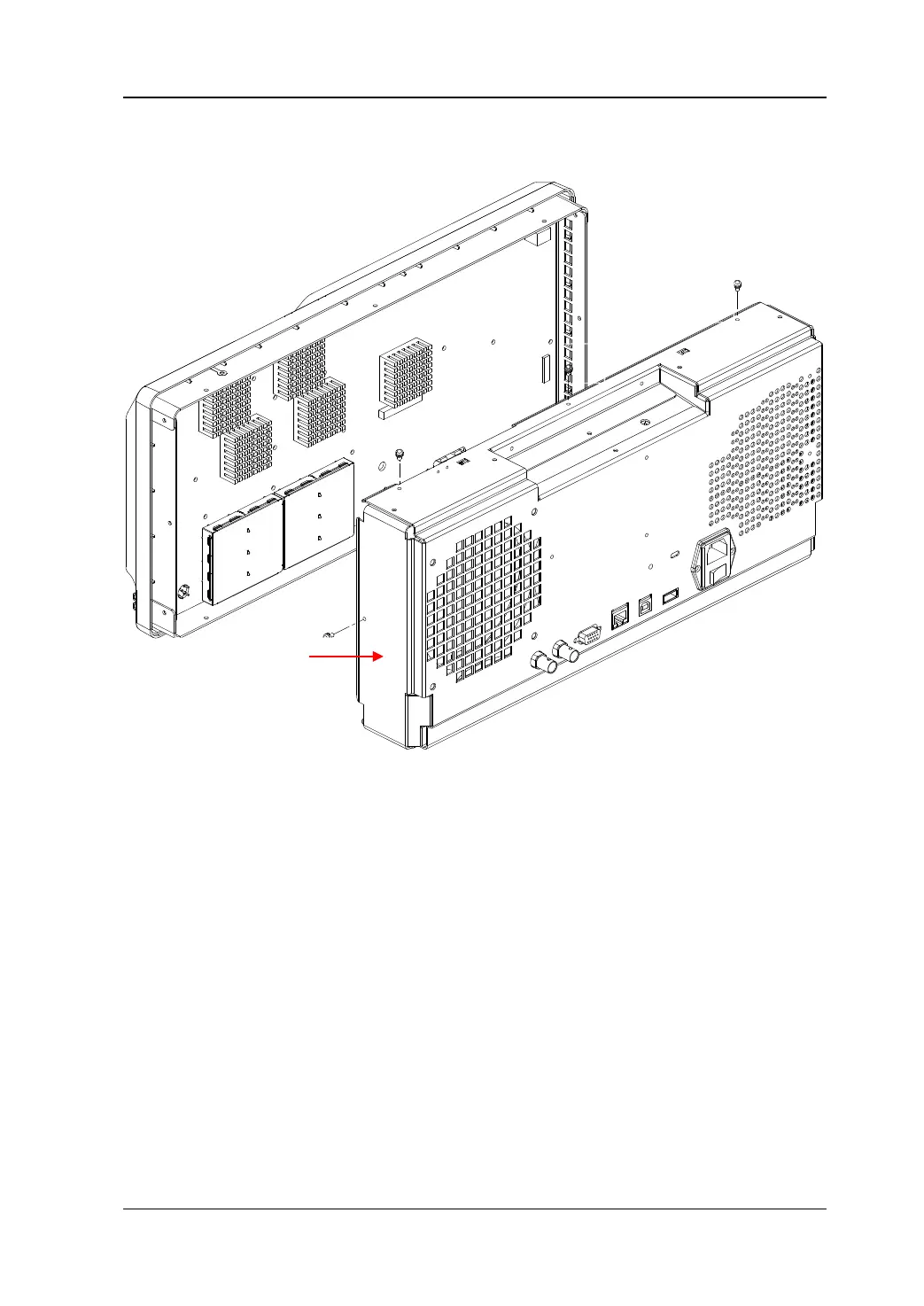

Figure 1-3 To Disassemble the Rear Metal Cover
Part Explanation:
① 8 screws (torx countersunk head screw #FM3*6) fixing the front metal plate and
rear metal cover (the positions of some of the screws are not marked out in the
figure above and please disassemble them according to their actual positions).
Disassemble Steps:
1. Remove the 8 screws (①, 3 on the top and bottom respectively and 1 on the left
and right respectively) fixing the front metal plate and rear metal cover using the
screwdriver (T10).
2. Remove the AC power cable, rear interface board power cable and data cable
connected to the main board. Then, take off the rear metal cover gently.
①
①
①
①
To Next Page
