RIGOL
6 MSO5000 Quick Guide
English

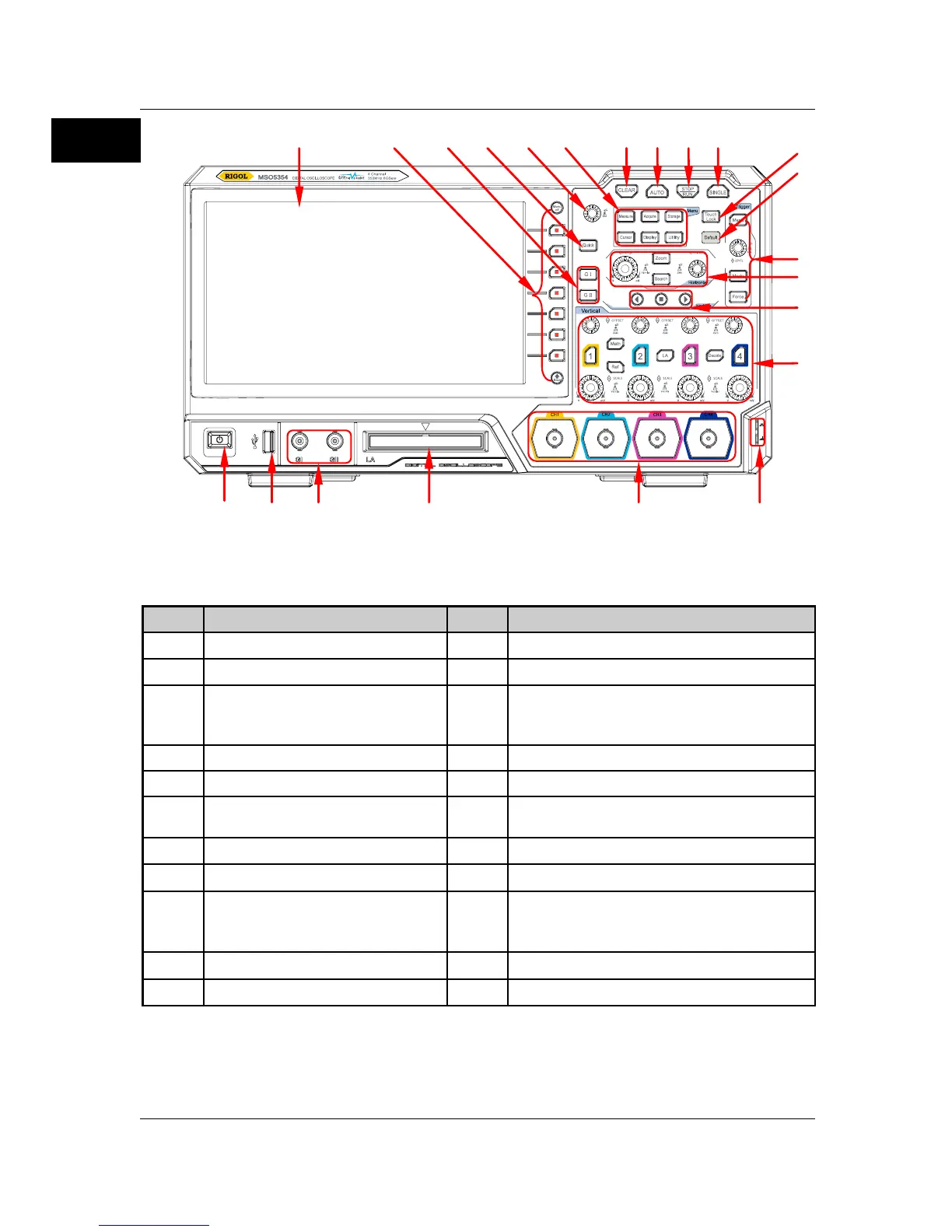

Figure 1 Front Panel
Table 1 Front Panel Description
No.
Description
No.
Description
1
Capacitive Touch Screen
12
Default Setting Key
2
Function Menu Operation Keys
13
Trigger Control System
3
Dual-channel
Function/Arbitrary Waveform
Generator Setting Key
[1]
14
Horizontal Control System
4
Quick Key (Shortcut Key)
15
Navigation Control key
5
Multifunction Knob
16
Vertical Control System
6
Common Operation Keys
17
Probe Compensation Signal Output
Terminal/Ground Terminal
7
CLEAR Key
18
Analog Channel Input Terminals
8
Auto Waveform Display Key
19
Digital Channel Input Interface
[2]
9
RUN/STOP Key
20
Dual-channel Function/Arbitrary
Waveform Generator Output
Terminals
[1]
10
Single Trigger Control Key
21
USB HOST Interface
11
Touch Lock Key
22
Power Key
Note:
[1]
This function is only available for the model installed with the MSO5000-AWG option.
Note:
[2]
PLA2216 active logic probe option is required to be ordered.
22 21 20 19 18 17
1 2 3 4 5 6 7 8 9 10
11
12
13
14
15
16
