RIGOL Chapter 11 Protocol Decoding

11-28 MSO7000/DS7000 User Guide

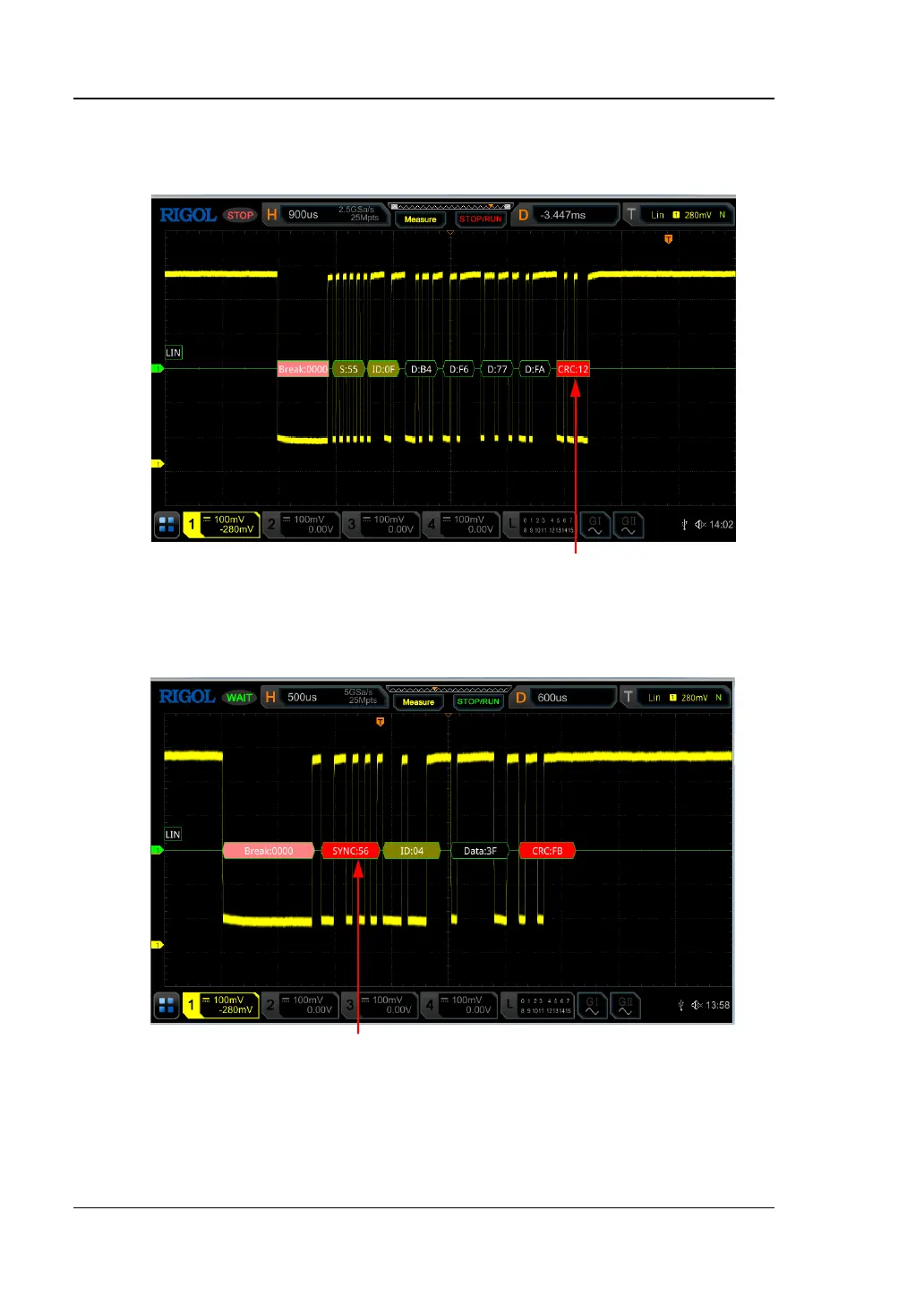

⚫ Checksum Error

If the checksum error is detected, CRC is displayed in red, as shown in the

figure below.

⚫ Sync Error

If the sync error is detected, SYNC is displayed in red, as shown in the

figure below.

Checksum Error

Sync Error
