Mode Setting
Mode

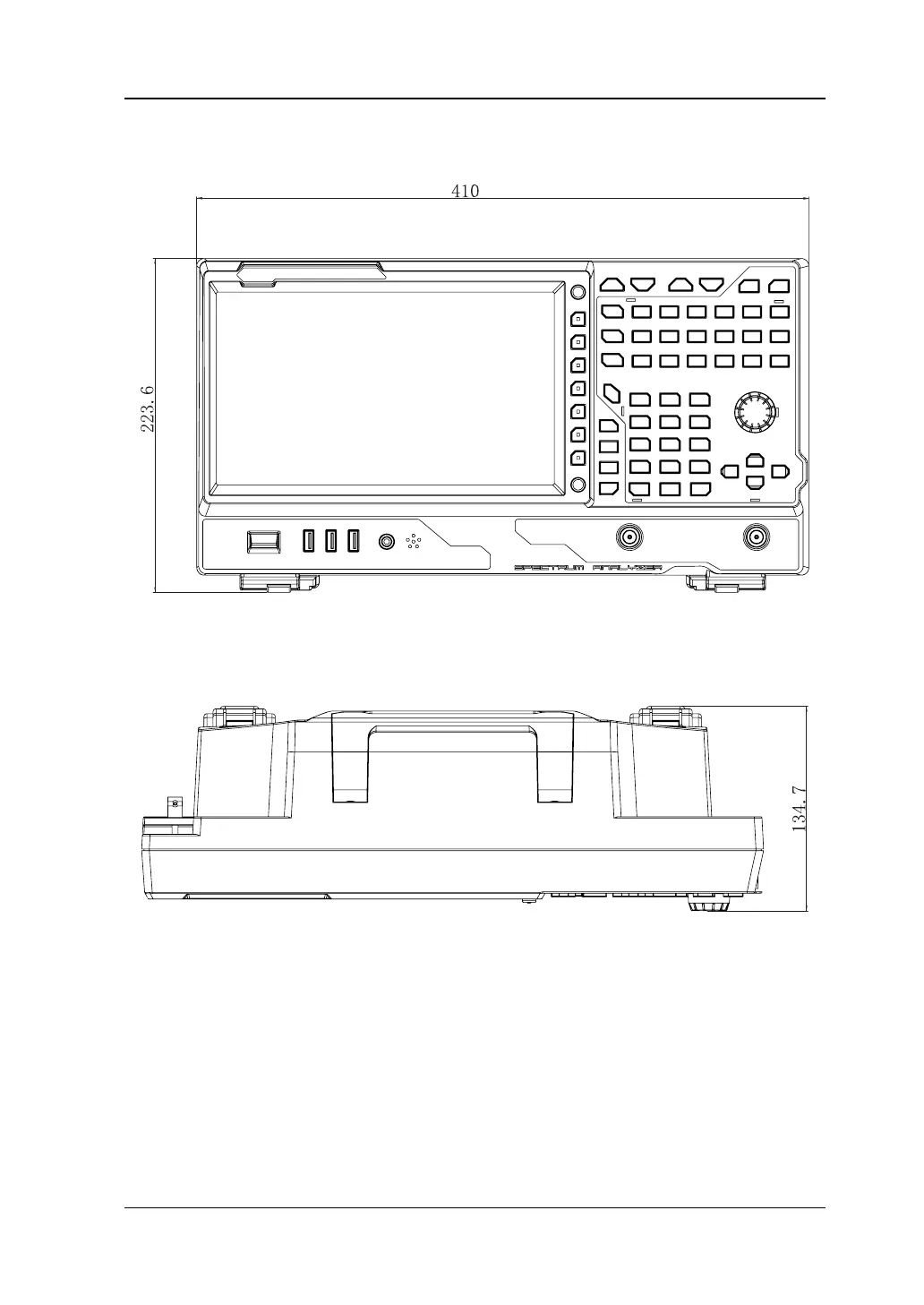

RSA provides five working modes: GPSA, RTSA, VSA (option), EMI (option), and VNA.
Press Mode or to select the working mode. You can also tap the function keypad to
select the desired mode.
Note: In different working modes, the functions of the keys on the front panel may
be different. Press Help to display the help information of the current working mode.
If you need help information for other modes, exit the help interface first. Then
select the desired working mode and obtain the corresponding help information.
1. GPSA
GPSA adopts two analysis methods: swept and FFT. GPSA can not only carry out
frequency domain analysis, but also time domain (zero span) analysis.
Select GPSA. In this working mode, press Meas to select multiple
measurements. For details, refer to Chapter 2 of
RSA5000 User Guide
or
RSA3000 User Guide.
2. RTSA
RTSA provides the analysis function for the real-time signal, which can capture
the complex signal seamlessly.
Select RTSA. In this working mode, you can also press Meas to select multiple
measurements. For details, refer to Chapter 3 of
RSA5000 User Guide
or
RSA3000 User Guide.
3. VSA
VSA mode provides the standard vector signal analysis measurement function. If
you need this function, please purchase this option (order No. RSA5000-VSA) to
install it. For installation methods, refer to "Install the Option".
4. EMI
EMI mode provides the EMI pre-compatibility measurement function. If you
need this function, please purchase this option (order No. RSA5000-EMI/
RSA3000-EMI) to install it. For installation methods, refer to "Install the
Option".
5. VNA
VNA mode provides the vector network analyzer function. It provides S11, S21,
and DTF measurements. In this working mode, you can press Meas to select
the desired measurement.
