GENERAL
CAUTION: Only work on the stove when the mains
plug has been removed from the socket.

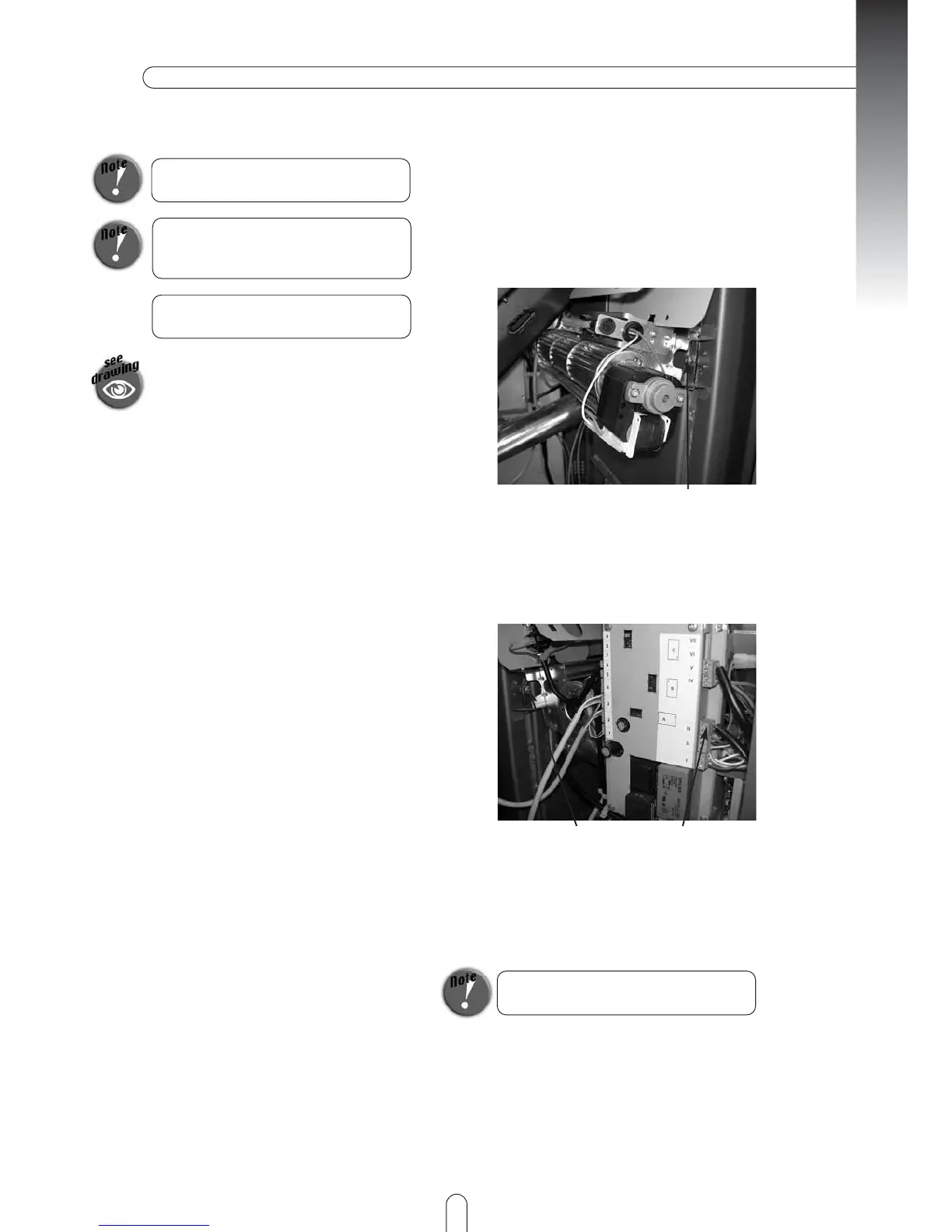

ASSEMBLY OF CONVECTION FAN
(OPTIONAL)
(Fig. 6)
Dismantle the rear side panels (Fig 6, 45.51)
left and right by removing the hexagonal
screws in the pellet container and at the
back in the rear panel. Be careful of the
cable to the internal operating unit.
15
ENGLISH
6. ASSEMBLY, PANELLING, OPTIONS
During assembly do not drop any items (screws)
etc. into the fuel container - they can block the
conveyor auger and damage the stove.
Your stove must be switched off and have coo-
led down before work is carried out.
FITTING THE STEEL OR CERAMIC
PANELS (Fig. 6)
1. Remove the cover insert (Fig 7, 63) from
the cast cover and remove the two
hexagonal screws (Fig 7, 66).
Now remove the cast cover from the
pellet stove.
2. From above push the side panels (Fig 6,
44 and 49) into the holders (upper and
lower) provided on the stove.
3. Check the position of the side panel in
the lower area of the cast base. If
re-positioning is necessary this can be
done by appropriate adjustment of the
hexagonal screw (Fig 6, part 48)
4. The side panel is then additionally
secured with the hexagonal screw (Fig 6,
part 50).
5. The procedure for both sides is the
same.
6. Now position the cast cover on the
pellet stove and secure it with the two
Allen screws as per step 1.
The cover insert can now be re-fitted.
Nut
Fig 1
Attach the convection fan by screwing the
two nuts supplied to the two bolts incor-
porated into the combustion chamber rear
wall (Fig 1). Place a serrated washer under
one of the nuts.
Nut
Fig 2
Convection fan connector
Lay the mains cable in the holders on the
control PCB housing and insert the two-pin
plug into position III.
Re-fit the rear side panels on the left and
right side.
CAUTION! Installation of the convection fan
must be carried out by an authorised dealer.
