- 14 -
3
3

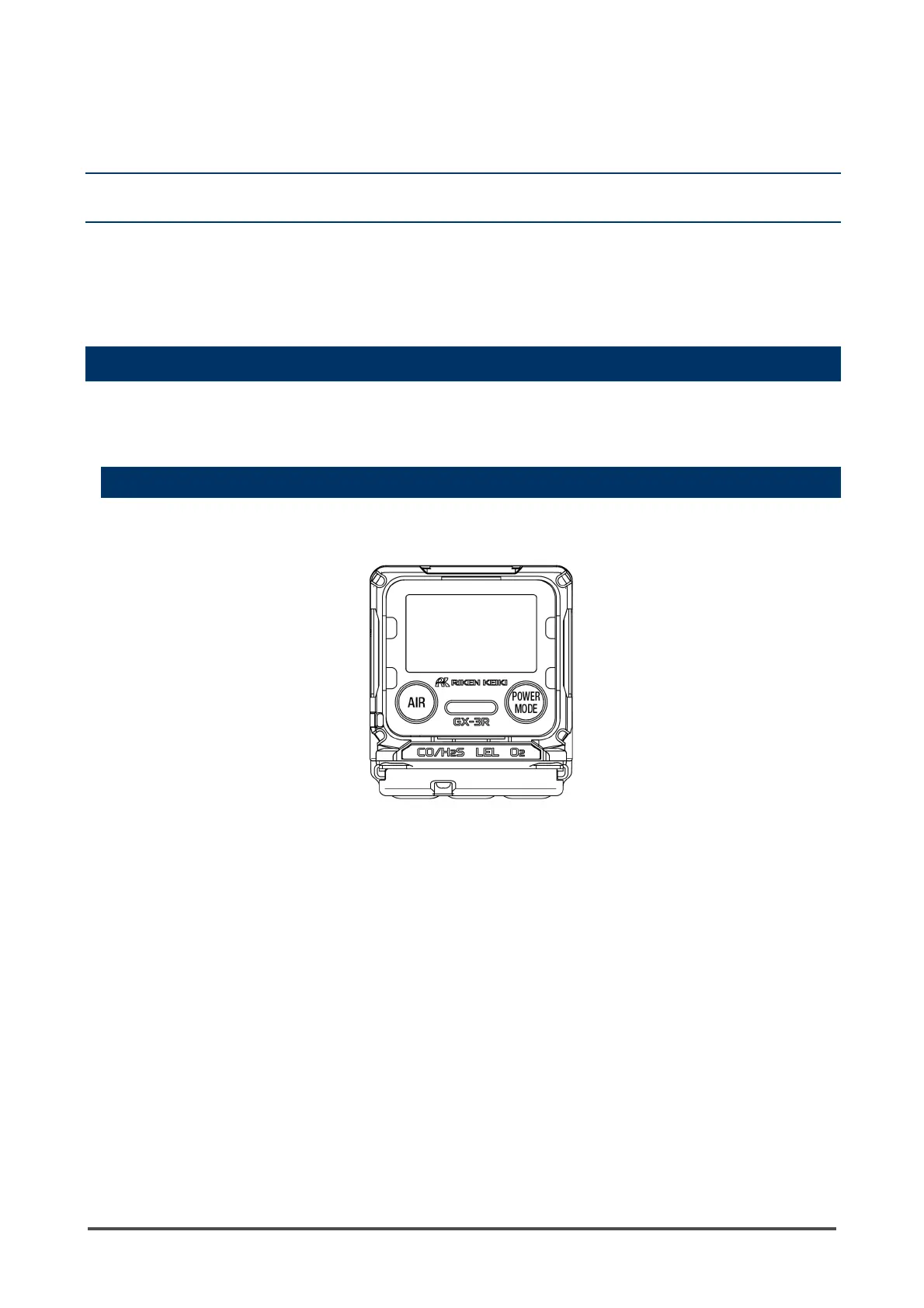

Product
Configuration
3-1. Main unit and standar
d accessories
Open the bo
x and packaging and
inspect the product an
d accessories.
If anything is missing, contact Riken Keiki.
Main unit
For detailed infor
mation on the
names and functions
of product parts
and the LCD display
, see “3-2
. Part
names and functions”
on page 16.
GX-3R main unit
13
15
Table of Contents
Default Chapter
2
Table of Contents
2
1 Product Overview
4
Introduction
4
Intended Use
4
DANGER, WARNING, CAUTION, and NOTE
6
Checking Standards and Explosion-Proof Specifications
6
2 Important Safety Information
7
Danger Information
7
Warning Information
8
Caution Information
9
Safety Information
11
3 Product Configuration
14
Main Unit and Standard Accessories
14
Main Unit
14
Standard Accessories
15
Part Names and Functions
16
Main Unit
16
LCD Display
17
4 Alarm Activation
18
Gas Alarm Activation
18
Fault Alarm Activation
20
5 Usage Instructions
21
Before Using the Product
21
Preparing Startup
21
Charging the Lithium Ion Battery
21
Startup
23
Turning on the Power
23
Screen Transition from Powering on to Displaying Measurement Screen
24
Air Calibration
27
Air Calibration Procedure
27
Gas Detection
28
Basic Operating Procedures
28
Measurement Mode
29
Turning off the Power
31
6 Setting Procedure
32
Display Mode
32
Displaying Display Mode
32
Display Mode Display Details
32
Mode Screen
32
Display Mode Settings
34
Clearing PEAK Value Display
34
Combustible Conversion Gas Selection
35
Long-Life Battery Setting
37
Calibration Data Display
38
Bump Data Display
39
Alarm Setpoint Display
40
User Mode
41
Displaying User Mode
41
User Mode Settings
42
User Mode Settings
44
Bump Test
44
Calibration
44
Calibration Expiration Date Setting
44
Bump Test Setting
47
Alarm Setpoint Setting
52
Lunch Break: ON/OFF
54
Confirmation Beep Setting
55
LCD Lighting Time Setting
57
Key Tone: ON/OFF
57
Display Mode Item Display: ON/OFF
58
Date and Time Setting
58
User Password Setting
59
ROM/SUM Display
60
7 Maintenance
61
Maintenance Intervals and Maintenance Items
61
Maintenance Service
62
Calibration
63
Preparation for Calibration
63
Calibration Setting Menu
65
Air Calibration
66
Auto Calibration
67
Switch from AUTO Calibration to Measurement Start Screen
69
Auto Calibration Cylinder Setting
70
Auto Calibration Gas Concentration Selection
71
Bump Test
72
Perform Bump Test (BUMP TEST)
72
Switching from Bump Test (BUMP TEST) to Measurement Start Screen
73
Cleaning Instructions
74
Parts Replacement
75
Periodic Replacement Parts
75
Filter Replacement
76
8 Storage and Disposal
79
Procedures for Storage or When Not in Use for Extended Periods
79
Procedures for Use after Storage
79
Product Disposal
80
9 Troubleshooting
81
Product Abnormalities
81
Reading Abnormalities
83
10 Product Specifications
84
Specifications List
84
Accessory List
87
11 Appendix
88
Data Logger Function
88
100 %LEL = Ppm Conversion List
90
Revision or Abolition History
91
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Riken Keiki GX-3R and is the answer not in the manual?
