Rinnai EX DT Series User Manual

EX17DT and EX22DT Installation and Operation Manual 7
3. About the Direct Vent Furnace
3.1 Main Components
Topics in this section
 Main Components
 Specifications
 Dimensions

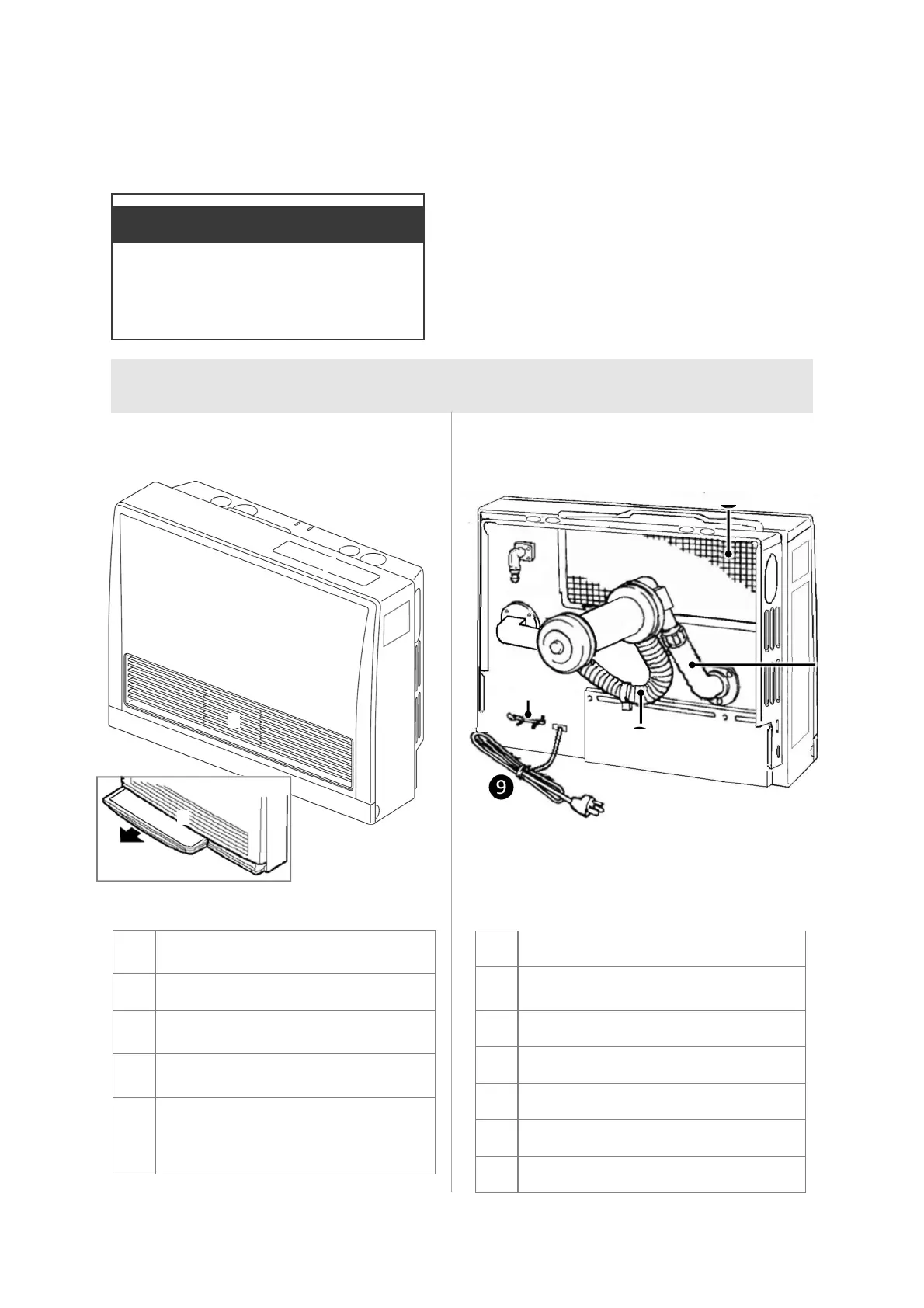

Front View
Back View
❾
Figure 1: Front View
Figure 2: Back View
⓬
⓫
❿
❽
❼
❶
Control Panel
❷
Warm Air Outlet
❸
Bottom Cover (to remove, hold both
sides and pull toward you)
❹
Humidifier (to access, remove bottom
cover and pull out)
❺
Rating plate (includes model number,
serial number, gas type, etc.). English
is on the right side; French is on the
left side.
❺
❻
Air Filter
❼
Gas Connection
(
1/2 in. / 13 mm Male NPT)
❽
Room Temperature Sensor/Thermistor
❾
Power Cord and Plug
❿
Combustion Air Intake Hose
⓫
Exhaust Pipe
⓬
Flue Manifold (Combustion/Exhaust)
❻
❶
❷
❹
❸
