COMMON FLUE SYSTEM FOR INTERNAL MODELS
The Rinnai Commercial Common Flue System is suitable for the Rinnai Internal Commercial Gas Continuous
Flow Water Heaters in accordance with the ue design options outlined in the AS/NZS 5601.1 Appendix titled
"Flue Design". Figure 1 and Figure 2 below, illustrate typical application principles.

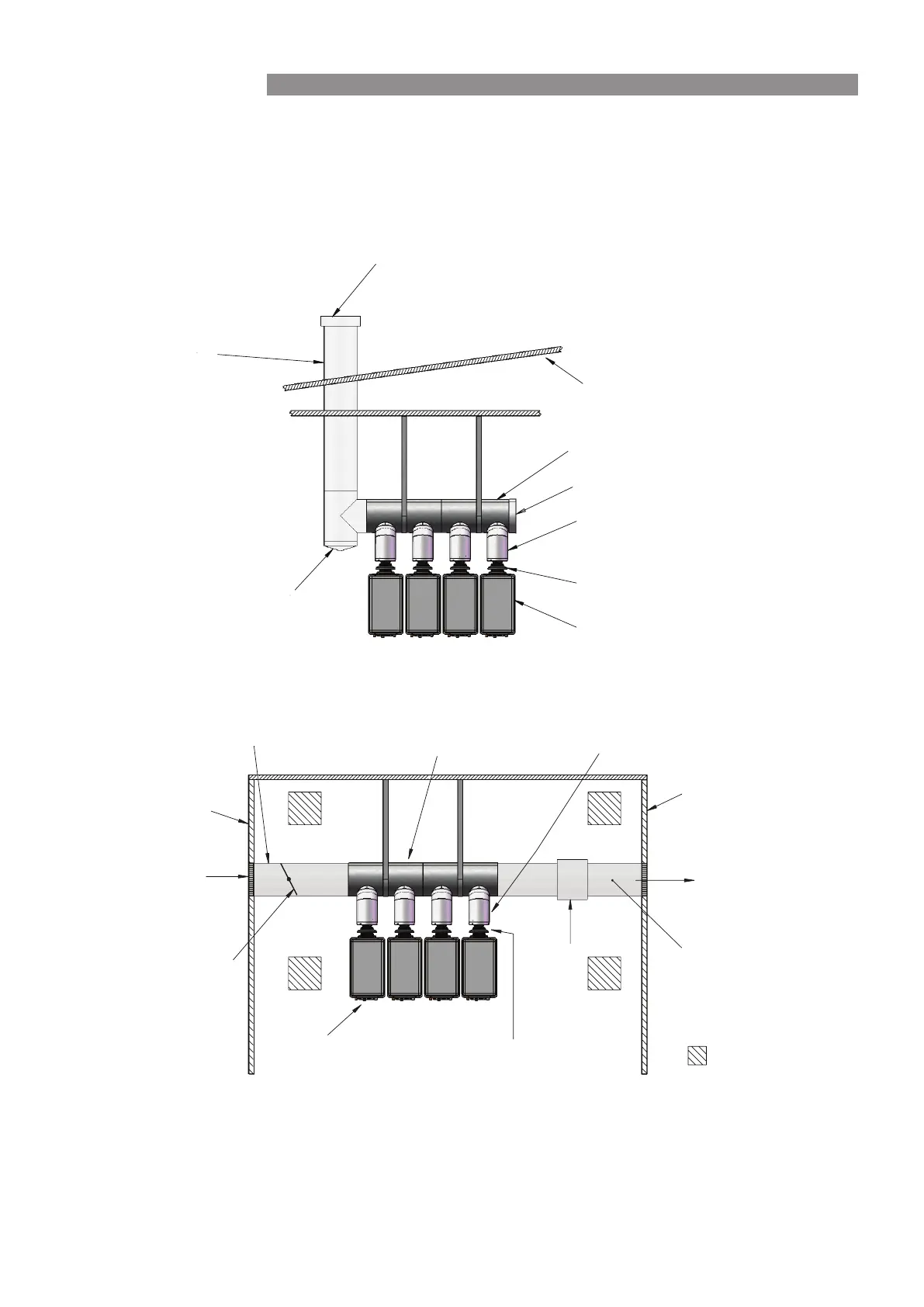

Figure 1. Typical Natural Draft Flue Installation - VRM/VCM-Series ONLY
Figure 2. Typical Power Flue Installation - Both N-Series & VRM/VCM-Series
RINNAI FLUE HEADER(S)
NATURAL DRAFT FLUE PIPE
SUPPLIED BY OTHERS/
ALREADY INSTALLED
CERTIFIED FLUE COWL
CONDENSATE DRAIN
WHERE NECESSARY
RINNAI ADJUSTABLE SLEEVE/OR EQUIVALENT
BEND DDADJSLV
OR EQUIVALENT
MULTIPLE RINNAI
WATER HEATERS
ROOF
RINNAI COMMON FLUE
INSERT TERMINAL
ENDCAP
FAN FAILURE SENSING
DEVICE INTERLOCKED WITH
GAS SUPPLY TO APPLIANCES
FAN
DAMPER ADJUSTING
DILUTION AIR
MULTIPLE RINNAI NON
CONDENSING WATER HEATERS
EXTERNAL WALL
EXTERNAL WALL
FLUE PIPE SUPPLIED BY
OTHERS / ALREADY INSTALLED
RINNAI FLUE HEADER(S)
EXHAUST OF DILUTED
COMBUSTION AIR
INTAKE OF FRESH AIR
PLANT ROOM VENTILATION
AND COMBUSTION AIR
RINNAI COMMON
FLUE INSERT TERMINAL
RINNAI ADJUSTABLE
SLEEVE / BEND
OR EQUIVALENT
(Note 1)
INTERNAL FLUEING
