Rinstrum 300 Series - RS-232 Connection; RS-232 Communications Settings

Communications Manual Rev 3.10 Software Versions 3.xx
003R-618-310 Page 7
2.2. RS-232 Connection
2.2.1. RS-232 Communications Settings
The communications settings for RS-232 are configured using the SERIAL:BAUD
and SERIAL:BITS items in the instrument setup menus.
Network: One Instrument to PC (RXD, TXD, GND)

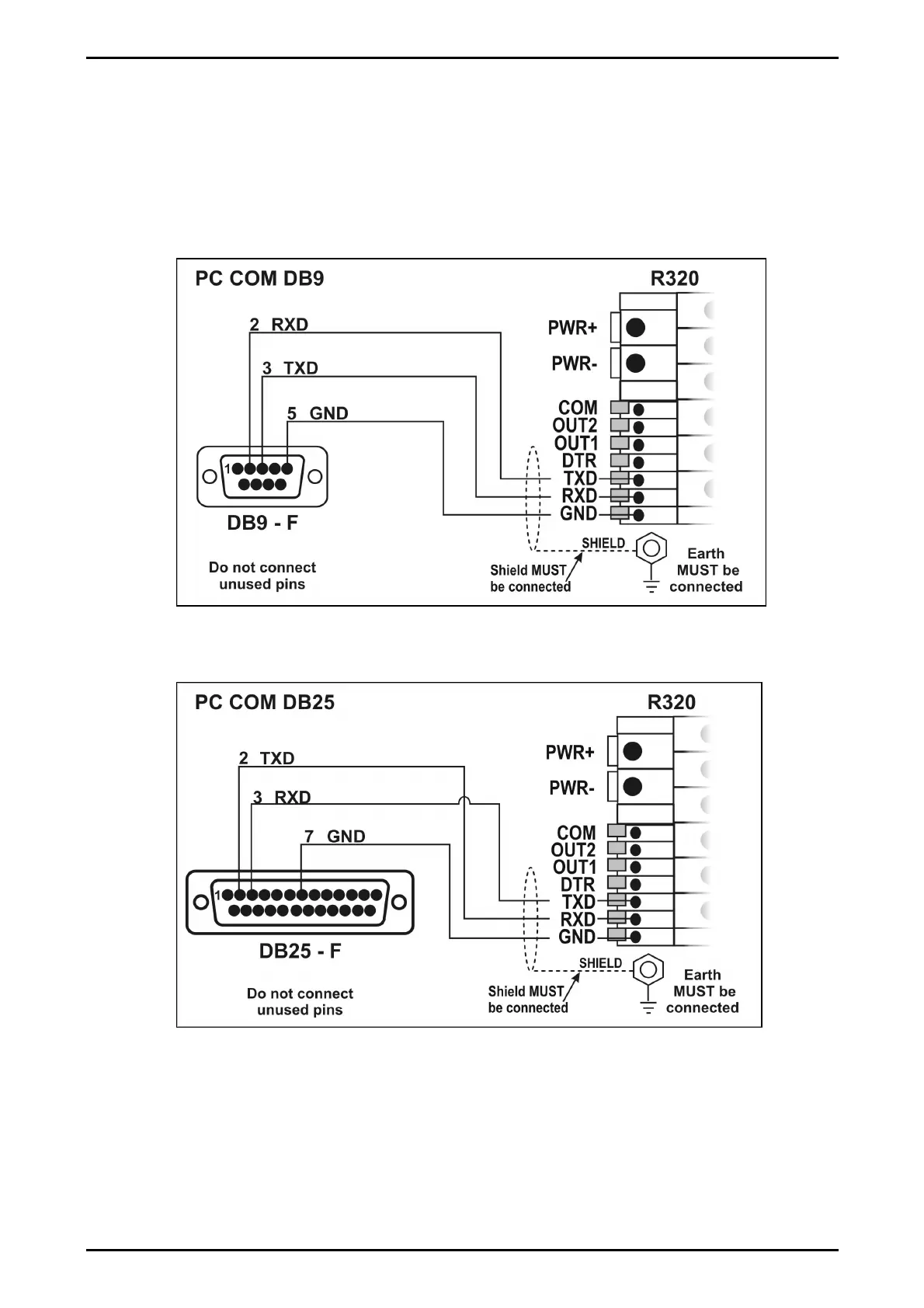

Figure 2: RS-232 -– One Instrument to PC using COM Port (DB9)
Figure 3: RS-232 – One Instrument to PC using COM Port (DB25)
