Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5
Page 10

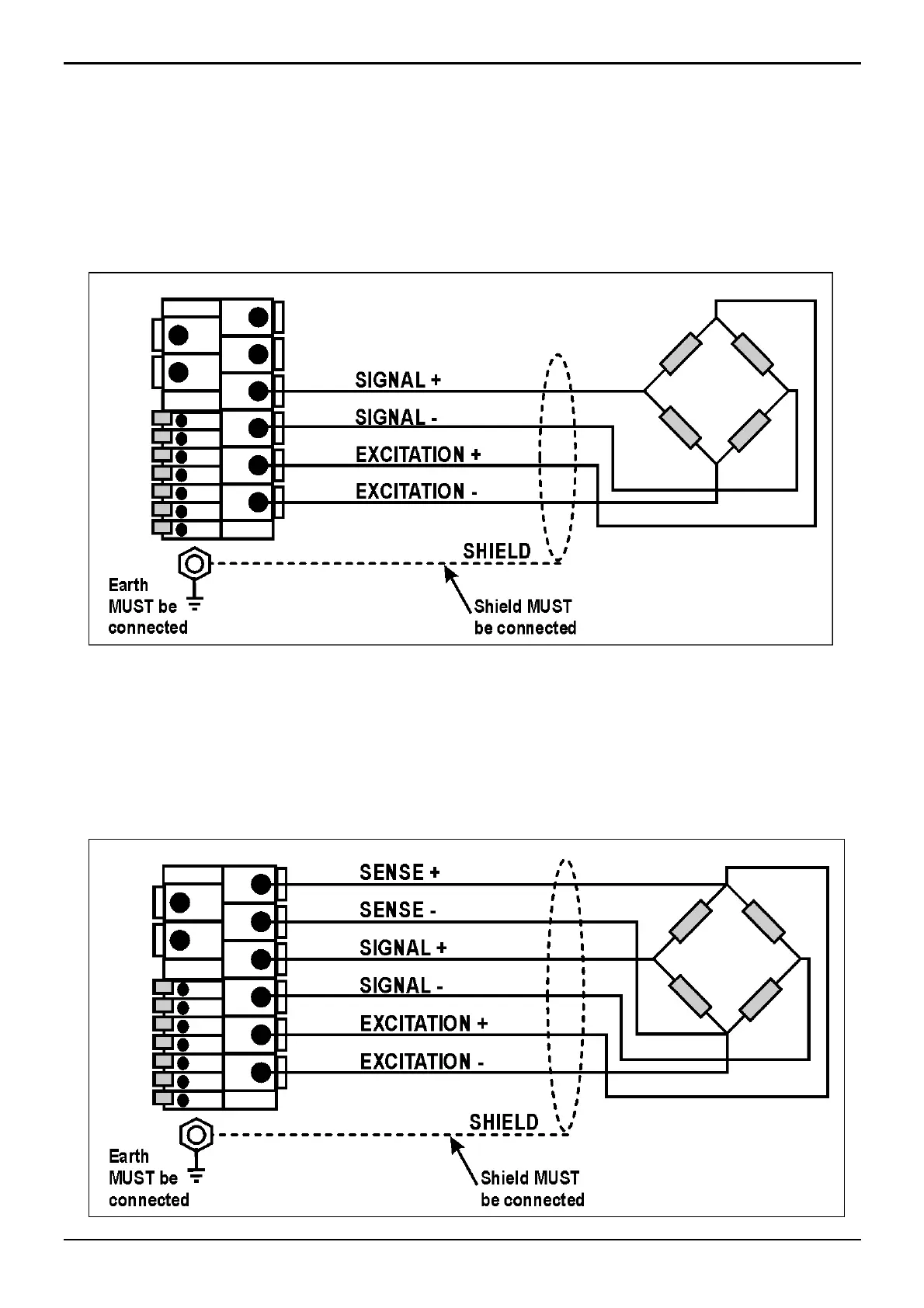

6.3.1. 4-Wire Connection
The minimum connectivity requirements are the connection of
four wires (ie. Excitation + and – along with Signal + and –).
The BUILD:CABLE option must be set to 4 to allow for 4-wire
connection.
6.3.2. 6-Wire Connection
The excitation and signal lines are connected the same as for a
4-wire installation.
The BUILD:CABLE option must be set to 6 (the default) to allow
for 6-wire connection.
