Risco Beyond Wireless DT - Coverage Patterns

5

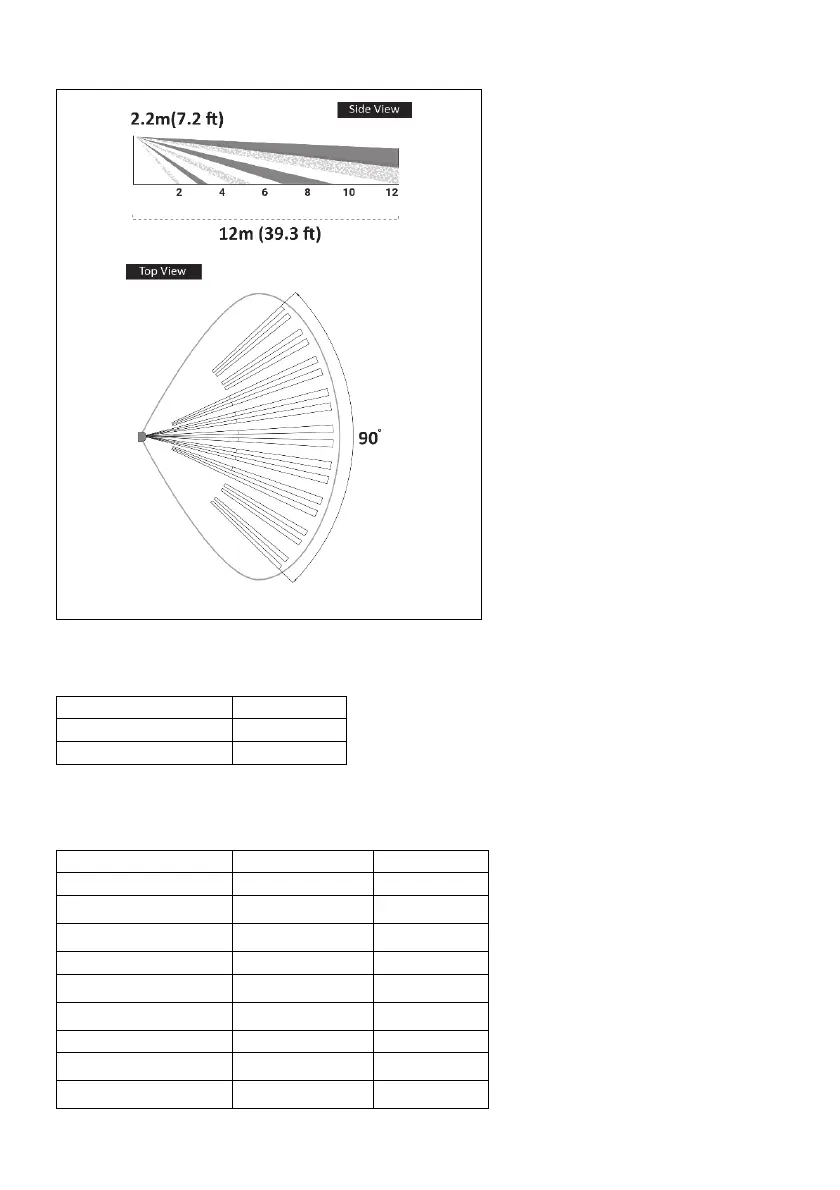

Step 2: Coverage Patterns
Figure 4
Step 3: Coverage
PIR Coverage
Mounting height [m] Distance [m]
1.8 10
2.2 (optimal) 12
Note For pet immunity, install the detector at the optimal height of 2.2 meters.
PIR Coverage - Using Swivel
Note The table below is relevant when using the Swivel/Solar Swivel Bracket (Model: RA350S).
Mounting height [m]
Swivel Angle [°] Distance [m]
1.8 0 10
5 7
10 5
2.2 (optimal) 0 12
5 8
10 6
2.5 – 2.7 0 N/A
5 10
10 7
NA = Avoid such installation
