Riso RP-255 - Removing the Master Removal Roller (Bottom)

MASTER REMOVAL SECTION
[ 10 - 15 ]

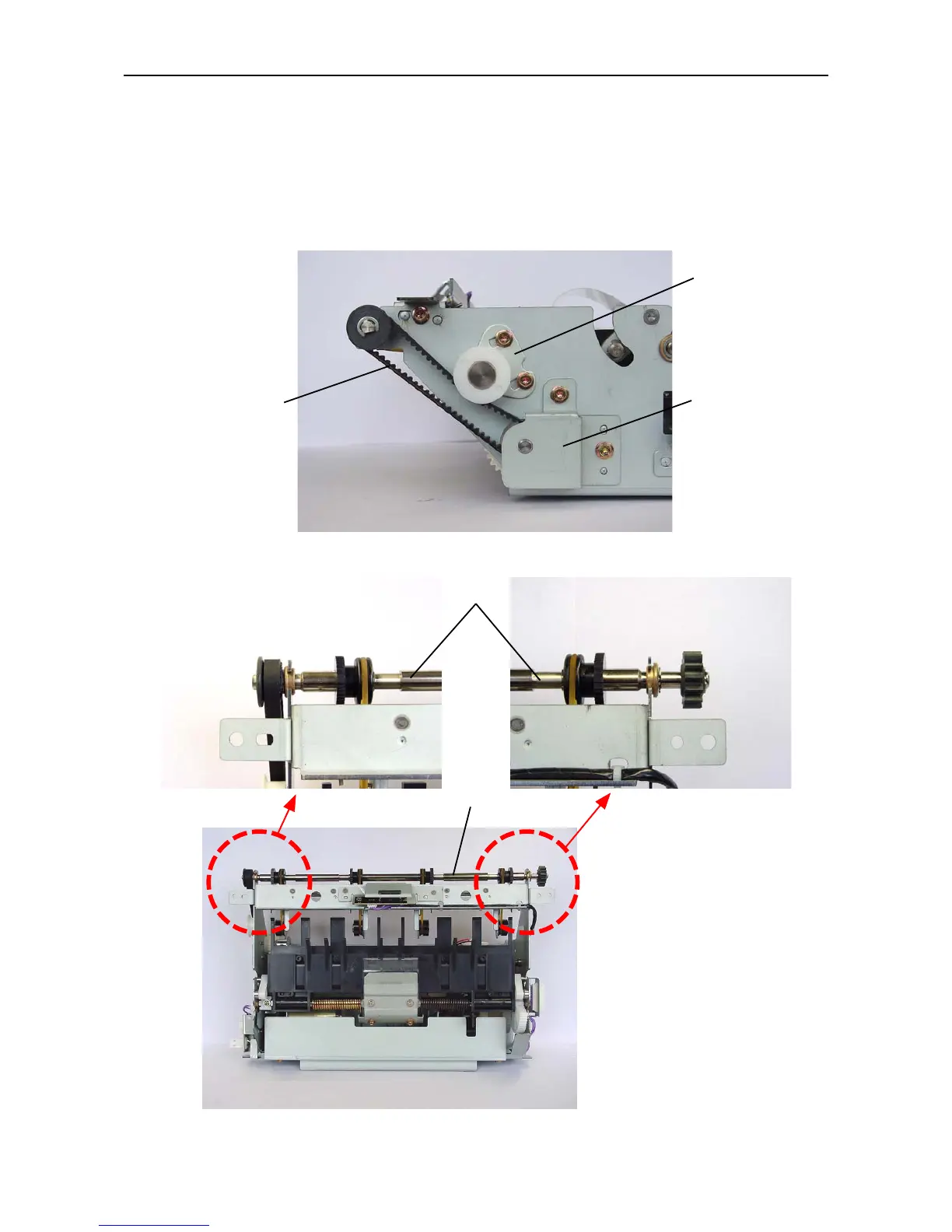

4. Removing the Master Removal Roller (Bottom)
(1) Remove the belt retainer [A] (RS tight, M3 x 6: 2 pcs).
(2) Loosen the two screws on the H tensioner ass’y [B], and remove the timing belt [C].
(3) Remove the E-rings, bearings, gears, and pulleys from both sides of the master removal roller
(bottom) [D], and detach the master removal roller (bottom).
A: Belt retainer
B: H tensioner ass’y
C: Timming belt
D: Master removal roller
(bottom)
1032
1033 1034
1035
A
B
C
D
D
