FasTrax
®
XL Installation/Service/Owner's Manual Rite‑Hite
®
12 Publication: AMEN00316 2020-07-06
INSTALLATION
Mounting Methods
Continued
NOTICE
Wall material and mounting surface must be strong
enough to support the weight of the door assembly in
addition to lateral loads that the door assembly may be
subjected to.
Through bolts must be used with concrete block and
brick walls. Do not use anchors.

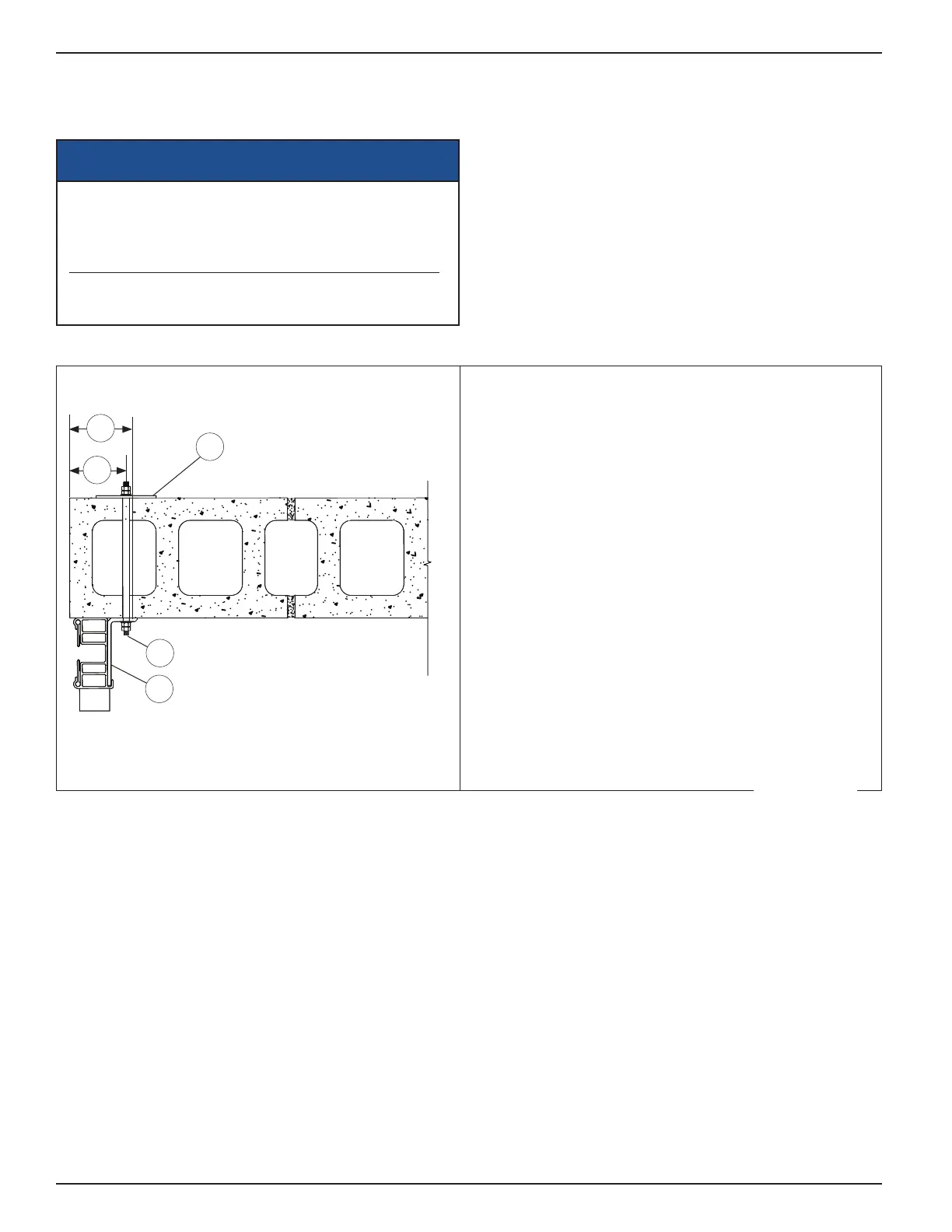

Concrete Block or Brick Wall
A. Flat space required:
Lower track
4 9/16in [115mm] - Standard Projection
5 7/16in [138mm] - Extended Projection
Header (above opening)
6 5/8in [168mm] - Standard Projection
7in [178mm] - Extended Projection
B. Lower track hole location
3 13/16in [97mm] - Standard Projection
3 7/8in [98mm] - Extended Projection
Header hole location
5 1/4in [133mm] - Standard Projection
5 1/8in [130mm] - Extended Projection
C. Minimum backer plate (supplied by others)
1/8in x 6in ø [6mm x 152mm]
D. Minimum fasteners required (supplied by others):
3/8in [M10]
E. Lower track
D
C
E
A
B
Through bolt fastening is required if the mortar joint will not
support the members. Bore a hole through the wall. Use
a 3/8in [M10] diameter threaded rod with a washer, nut,
and jam nut on each end. It may be necessary to install
a back-up plate (steel or wood) when the wall will not
support the bolt.
Install through bolts with 3/8in [M10] fasteners a minimum
of every 4ft [1.2m] with appropriate fasteners lling in the
remaining holes.
Figure 7
