PARTS

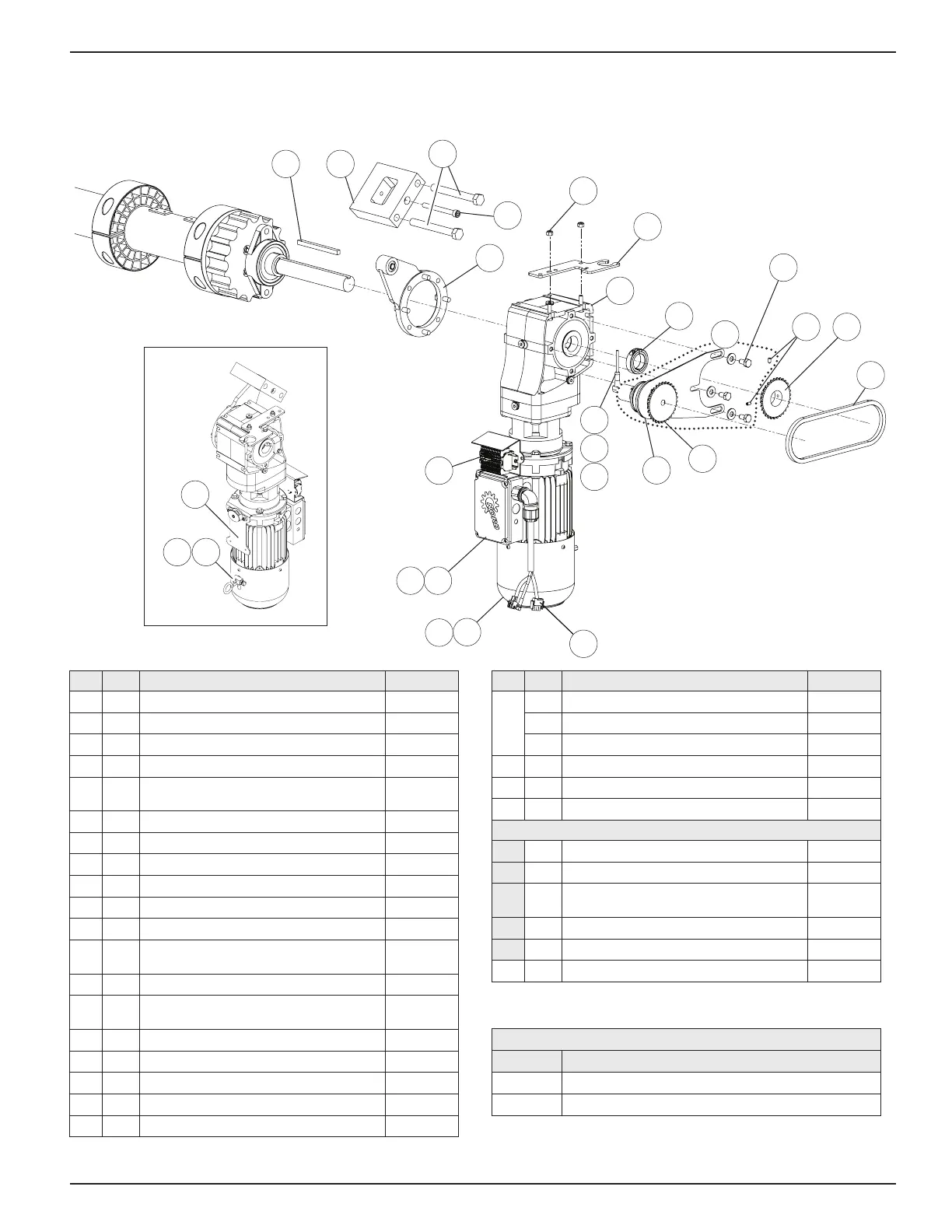

Drive System
4
5
6
12
13
16
17
18
22 21
23
26
7
20
19
8
1 2
3
24 25
27
9
10
11
8
15
14
# QTY DESCRIPTION PART #
1 1 Key, Square, 3/8in x 3/8in x 5in –
2 1 Block, Mount, Torque Arm 13000079
3 2 Screw, HHMS, 5/8-11 x 5.5, GR8 67910034
4 1 Screw, SHCS, M10-1.5 x 100mm, Black 67930024
5 1 Arm, Torque, Gearbox, Nord
®
, Bevel,
92372.1TRXXL
11500139
6 1 Gearbox (see table for ratios) 5542
7 1 Bracket, Conduit, TRXXL 14501418
8 6 Screw, HHMS, M8-1.25 x 16mm, Gr8 67930016
9 1 Collar, Lock, Split, 1-7/16in Bore 16850029
10 1 Kit, FSTXXL, Encoder, 92372.1 53701003
11 4 Screw, Set, Socket, Cone, 1/4-20 x 1/2 67860098
12 1 Sprocket, Encoder, Drive, TRXXL, 30
Tooth, 1.438in ID
70800070
13 1 Chain, #35, Roller, 24.38, Nyltron, GS 16600075
14 1 Sprocket, Encoder, Idle, TRXXL, 30 Tooth,
1/2in ID
70800071
15 1 Plate, Mounting, Encoder, 372.1, TRXXL 65000913
16 1 Encoder Cable 4M 15650256
17 1 Encoder Cable 8M 15650257
18 1 Encoder Cable 17M 15650258
19 1 Motor/Brake/Gearbox Assembly 5542
# QTY DESCRIPTION PART #
20 1 Motor/Brake, 2HP, 400V, WE, Bolt 55250235
2 Motor/Brake, 2HP, 575V, WE, Bolt 55250236
2 Motor/Brake, 2HP, 230/460V, WE, Bolt 55250234
21 1 Brake Rectier, 230/460V 66270009
22 1 Brake Rectier, 575V 66270012
23 1 Terminal Assembly 73100093
NORD BRAKE RELEASE (OPTIONAL)
24 1 Hex Nut, Metric, 6m-1 55680001
25 1 Eye Bolt, Metric, 6m x 30, Zinc 67930001
26 1 Cable, Assembly, Motor/Bracket,
TRAXXL, Nord
15650319
27 1 Kit, FSTXL, Pulley Ass'y, N.P.O. 53701035
28* 1 Kit, Gearbox Conversion, 92372.1 53701012
29* 1 Aero Lubriplate 54650001
*Not Shown
GEARBOX RATIOS
RATIO QUALIFICATION
18.33/1 O.D.W. <= 12 ft & O.D.H. <= 12 ft
28.11/1 O.D.W. > 12 ft & O.D.H. > 12 ft
