Installation/Service/Owner's Manual FasTrax
®
XL
Publication: AMEN00316 2020-07-06 77

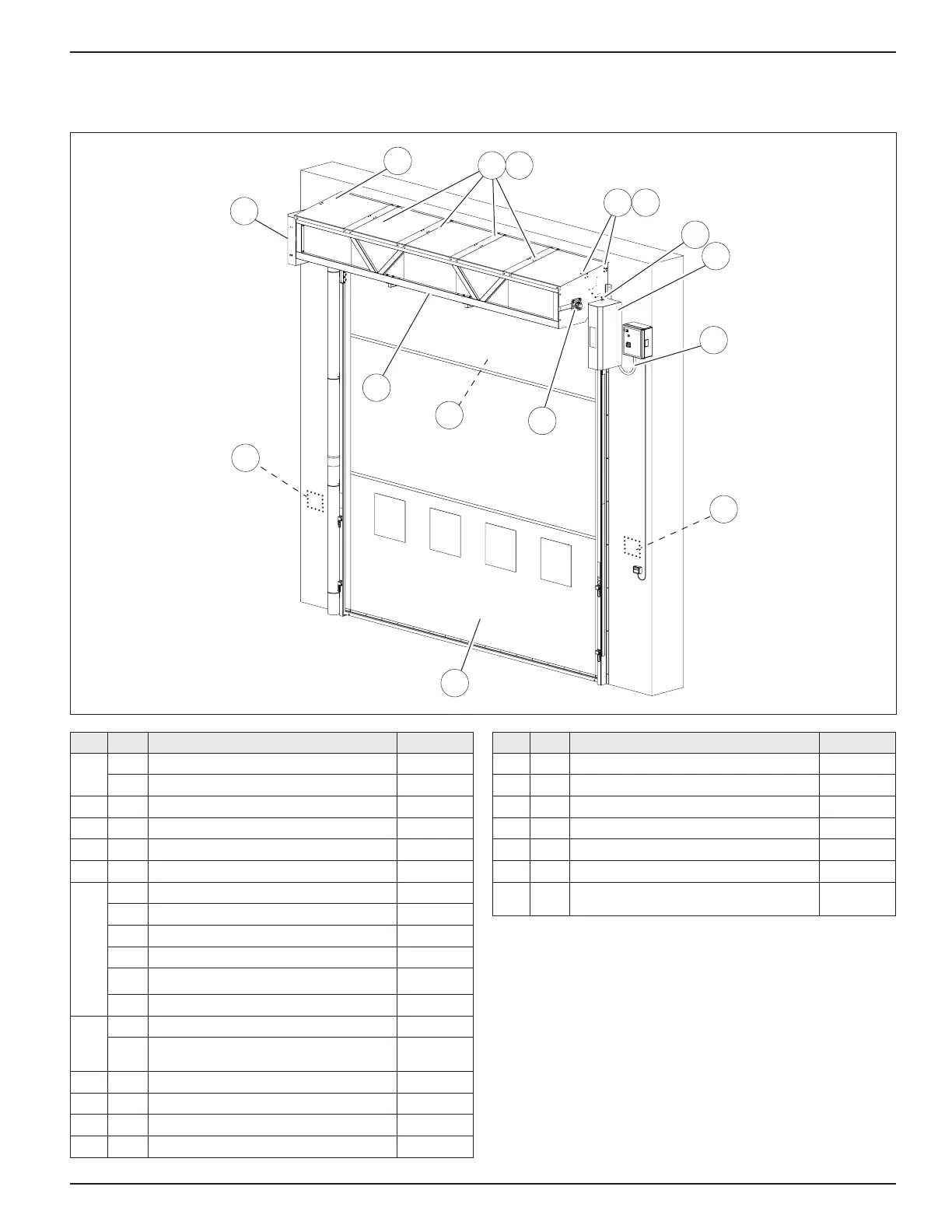

PARTS
Standard Projection
1
2
4 5
6
7
8
10
10
13
12
11
9 3
14
# QTY
DESCRIPTION
PART #
1 1 Shroud, TRXXL, Counterweight, SP, Left 69200154
1 Shroud, TRXXL, Counterweight, SP, Right 69200153
2 a/r Screw, HWH, Self-Drill/Tap, #14 x 3/4, Zinc 67860094
3 a/r Trim, Shroud, SLPD, SP, TRXXL 73820012
4 12 Screw, HHMS, 3/8-16 x 1-1/4, GR5 Zinc 67880004
5 16 Nut, Hex, Nylon Lock, 3/8-16, Zinc 55630005
6 1 KIT, TRAXXL, SHRD, MTR, SP, RH 53701018
1 KIT, TRAXXL, SHRD, MTR, SP, LH 53701019
1 KIT, TRAXXL, SHRD, MTR, SP, N.P.O., RH 53701022
1 KIT, TRAXXL, SHRD, MTR, SP, N.P.O., LH 53701023
1 KIT, TRAXXL, SHRD, MTR, SP, SLTD, RH 53701026
1 KIT, TRAXXL, SHRD, MTR, SP, SLTD, LH 53701027
7 1 Control Box Cable Assembly 1603
1
Assembly (C-Box, Back Panel, Enclosure
with Labels)
1759
8 1 Curtain Assembly 2892
9 a/r Trim, Shroud, Flat, SP, TRAXXL 73820014
10 2 Label, Warning, Stand Clear, 2 x 9in 53850516
11 1 Collar, Lock, Split, 2in Bore 16850027
# QTY
DESCRIPTION
PART #
12 1 Brace, Front, Weldment, TRXXL 1491
13 a/r Kit, Trax, Lintel Roller 53700654
14 1 KIT, TRAXXL, BRKT, SHRD, MTR, TOP 53701030
* 4 Screw, HHMS, 1/2-13 x 1in, GR5 Zinc 67900003
* 4 Washer, Lock, Ext. 1/2in, Zinc 74150019
* 4 Screw, HHMS, 3/8-16 x 5in, GR5, Zinc 67880149
* a/r
Touch and Hold Fastener, PSA, Loop,
Black, 2in
74000019
*Not Shown
