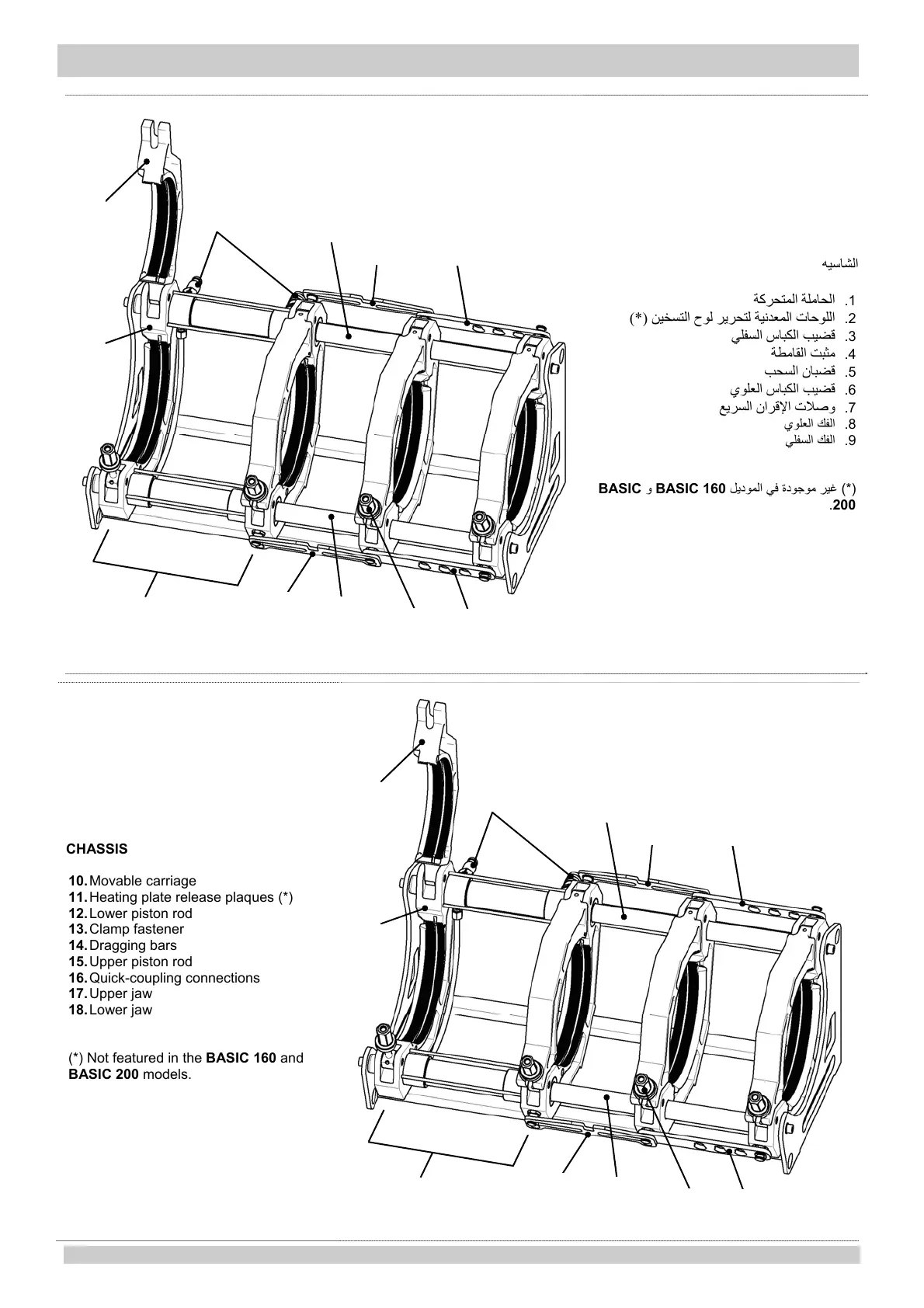

Ritmo BASIC 160 V1 - Parts Description; Chassis Components

3. PARTS DESCRIPTION ﻊﻄﻘﻟا ﻒﺻو
3./1
ﻪﻴﺳﺎﺸﻟا
1. ﺔآﺮﺤﺘﻤﻟا ﺔﻠﻣﺎﺤﻟا
2. ﻦﻴﺨﺴﺘﻟا حﻮﻟ ﺮﻳﺮﺤﺘﻟ ﺔﻴﻧﺪﻌﻤﻟا تﺎﺣﻮﻠﻟا(*)
3. ﻲﻠﻔﺴﻟا سﺎﺒﻜﻟا ﺐﻴﻀﻗ
4. ﺔﻄﻣﺎﻘﻟا ﺖﺒﺜﻣ
5. ﺐﺤﺴﻟا نﺎﺒﻀﻗ
6. يﻮﻠﻌﻟا سﺎﺒﻜﻟا ﺐﻴﻀﻗ
7. ﻊﻳﺮﺴﻟا ناﺮﻗﻹا تﻼﺻو
8. يﻮﻠﻌﻟا ﻚﻔﻟا
9. ﻲﻠﻔﺴﻟا ﻚﻔﻟا
(*) ﻞﻳدﻮﻤﻟا ﻲﻓ ةدﻮﺟﻮﻣ ﺮﻴﻏBASIC 160 وBASIC
200.
CHASSIS
10. Movable carriage
11. Heating plate release plaques (*)
12. Lower piston rod
13. Clamp fastener
14. Dragging bars
15. Upper piston rod
16. Quick-coupling connections
17. Upper jaw
18. Lower jaw
(*) Not featured in the BASIC 160 and
BASIC 200 models.
7
1
3
2
6
4
5
5
2
8
9
7
1
3
2
6
4
5
5
2
8
9
