Ritmo BASIC 160 V1 - Parts Description (Continued); Hydraulic Gearcase Components

3. PARTS DESCRIPTION ﻊﻄﻘﻟا ﻒﺻو
3./6
ﺔﻴﻜﻴﻟورﺪﻴﻬﻟا سوﺮﺘﻟا ﺔﺒﻠﻋ
1.
ﺖﻳﺰﻟا ناﺰﺧ ةداﺪﺳ
2.
ﻂﻐﻀﻟا ﻒﻳﺮﺼﺗ مﺎﻤﺻ
3.
ﻂﻐﻀﻠﻟ ىﻮﺘﺴﻣ ﻰﺼﻗأ مﺎﻤﺻ
4.
عزﻮﻤﻟا عارذ
5.
ﺖﻳﺰﻟا ﻂﻐﺿ ﺮﺘﻣﻮﻧﺎﻣ
6.
ﺔﻴﻜﻴﻟورﺪﻴﻬﻟا ﻢﻴﻃاﺮﺨﻟا
7.
ﻊﻳﺮﺴﻟا ناﺮﻗﻹا تﻼﺻﻮﻣ

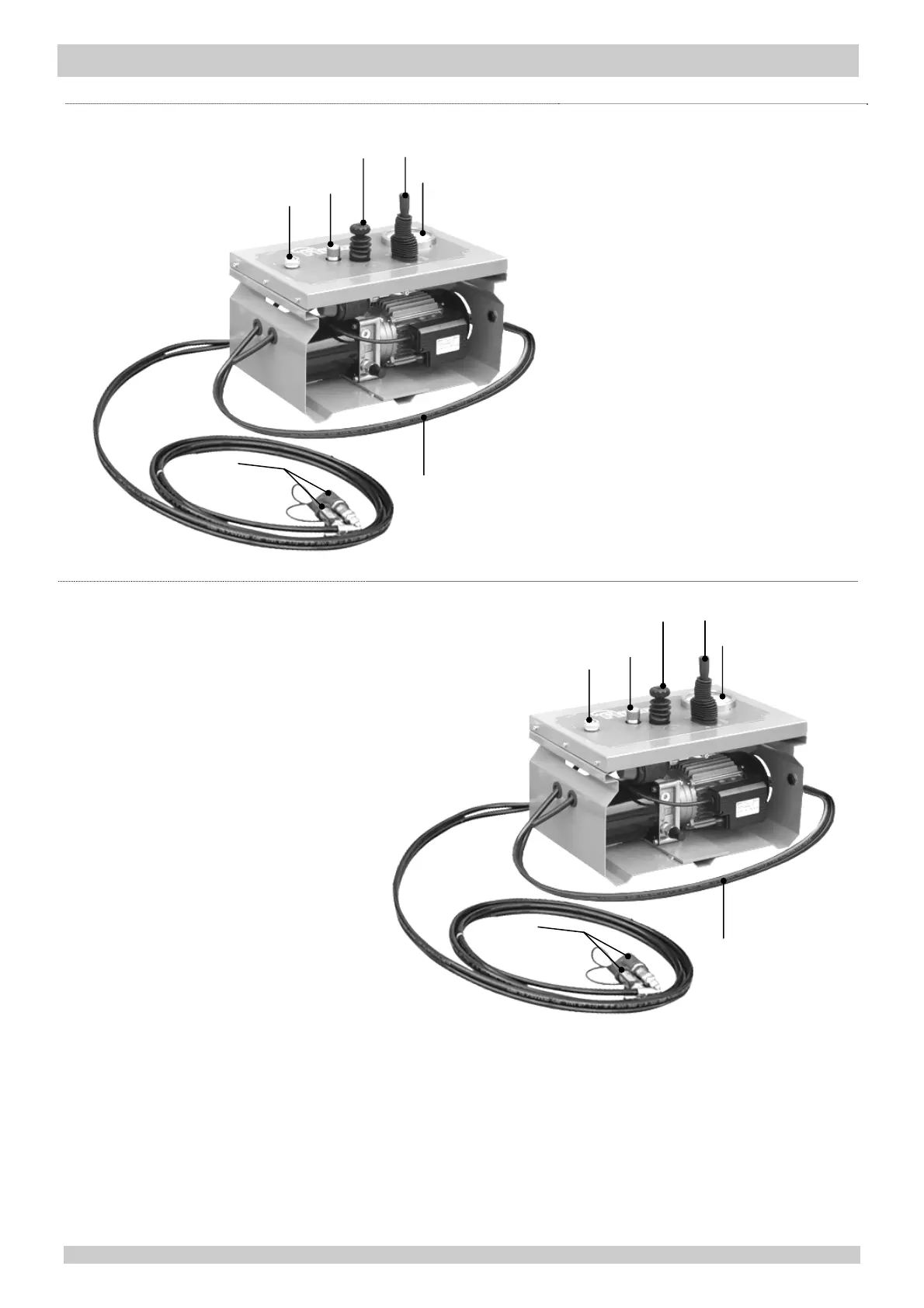

HYDRAULIC GEARCASE
8. Oil tank plug
9. Pressure discharge valve
10. Maximum pressure valve
11. Distributor lever
12. Oil pressure manometer
13. Hydraulic hoses
14. Quick-coupling connectors
4
5
3
2
1
7
6
4
5
3
2
1
7
6
