27AX Kompakt-Schaltschränke, Stahlblech / AX compact enclosures, sheet steel / Corets électriques AX en tôle d’acier
2.2

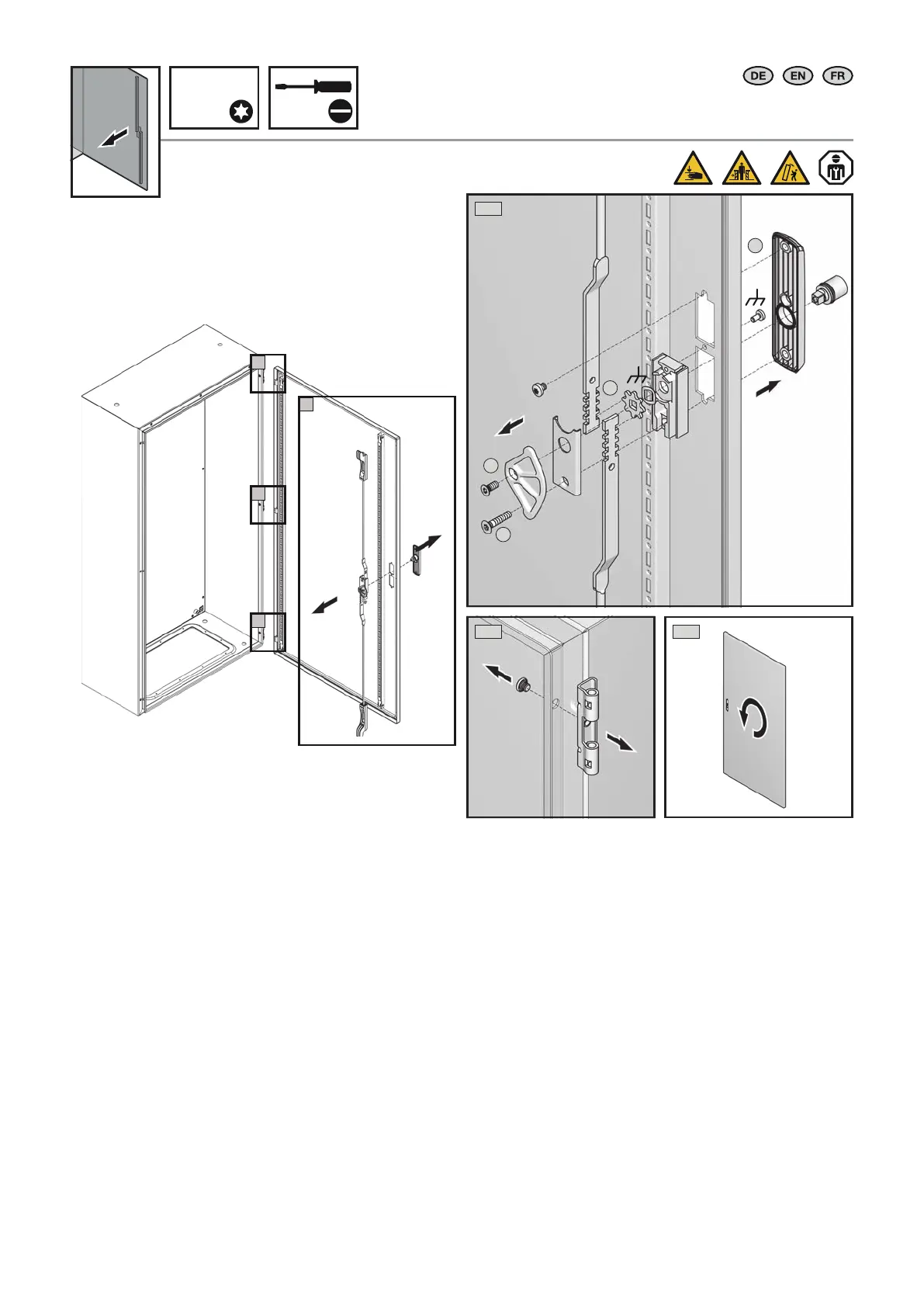

4.4 Wechsel Stangenverschluss bei Türanschlag links
4.4 Replacing the locking rod with the door hinged on left
4.4 Changement de la fermeture à crémone
avec charnières à gauche
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
1
2
2
2
1
TX20/25
Scharnierwechsel erforderlich
The hinge must be swapped to
the opposite side
Changement de charnières
requis
1
2
3
4
2.1
