BLOCKSYSTEM FA - FT Pag. 79 REV. 04 10/07

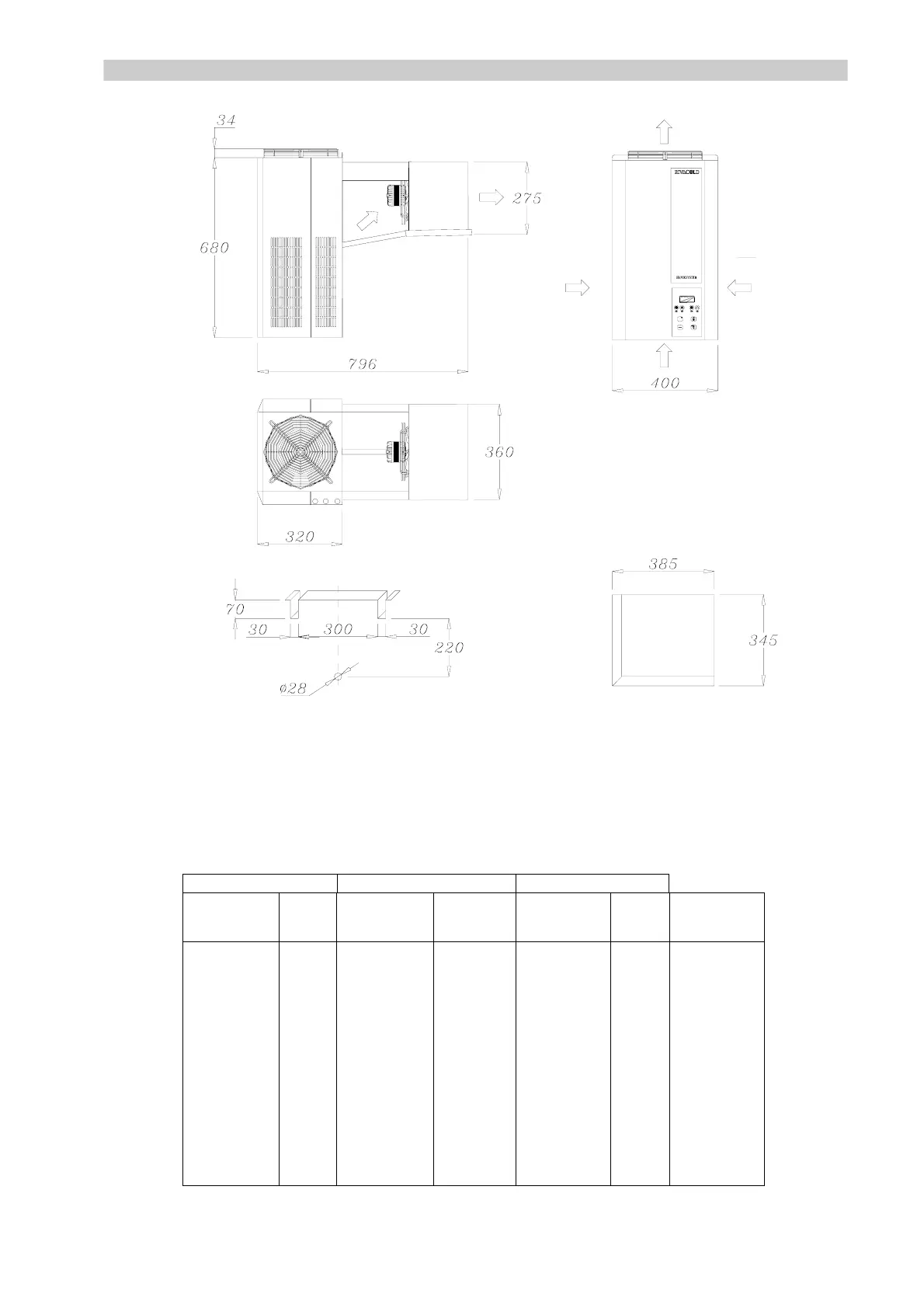

Fig. 6 (1X250)
HBP MBP HBP
Mod.
Net.
Weight
[Kg]
Mod.
Net.
Weight
[Kg]
Mod.
Net.
Weight
[Kg]
Fastening
Screws
FAH003Z001
FTH003Z001
FAH006Z001
FTH006Z001
FAH007Z001
FTH007Z001
FAH009Z001
FTH009Z001
FAH012Z001
FTH012Z001
51,0
52,5
53,0
54,5
55,0
56,5
55,0
56,5
56,0
57,5
FAM003Z001
FTM003Z001
FAM006Z001
FTM006Z001
FAM007Z001
FTM007Z001
FAM009Z001
FTM009Z001
FAM012Z001
FTM012Z001
50,0
51,5
53,0
54,5
55,0
56,5
56,0
57,5
65,0
66,5
FAL003Z001
FTL003Z001
FAL006Z001
FTL006Z001
FAL009Z001
FTL009Z001
62,0
63,5
65,0
66,5
65,0
66,5
Self-tap.
4.8x32
off
on
set
FA
Saddle version
FT
Plug-in version
