1.6 Support
Regarding maximum use of the performance provided by the MACHINE and the extraordinary maintenance operations, this
handbook does not replace the experience of the installers, users or maintenance staff that is trained and qualified.
On the subject, the Technical Support Service of RIVACOLD SRL provides:
telephone support on the features and simplest interventions to conduct on the MACHINE ;
sending of documentation material;
ATTENTION: in case of doubt on the correct interpretation of instructions in this Use and Maintenance Handbook,
contact the Technical Support Service (as indicated below) to obtain the NECESSARY clarifications.
1.6.1 Intervention Support Requests
To contact the Technical Support Service contact the:
Technical Office of Rivacold s.r.l.
Via Sicilia, 7
Fraz. Montecchio 61022 VALLEFOGLIA (PU)
Italy
Telephone: (+39) 0721 919911
Fax: (+39) 0721 490015
E mail ufficiotecnico@rivacold.com
During the requests for support, specify the name, model and registration of the machine.
2
2
.
.
M
M
a
a
c
c
h
h
i
i
n
n
e
e
d
d
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
The machine is a cooling system consisting of an external condensing unit, an internal evaporating unit, and an electronic control
panel housed within the condensing unit. The refrigerant follows the compression refrigeration cycle. The machine is available
with a defrost system incorporating heaters (type MBP and LBP) or ventilation (type HBP), managed by an electronic control unit.
Defrost is automatic and the user can set the cyclic frequency; or manually operate it via a suitable control unit.
This technology enables us to provide a simple, easy to install and versatile product. The use of advanced technology permits us
to supply a machine with compact dimensions perfect for installation in small areas.
The ST-SP range is available in two different versions: the first loaded with nitrogen and all models supplied with tap connections,
and where available a second loaded with refrigerant and supplied with quick release couplings; in this case it is possible to
request connection pipes preinstalled.
Models codes are as follows:
ST-SP = loaded with nitrogen and tap connections.
ST-SP/R = loaded with refrigerant gas, quick release couplings and a pipe kit 2.5/5/10 m long.
The ST model is a split Blocksystem, floor or roof-mounted to refrigerate cold rooms ranging from 1/3 HP to 10 HP.
The SP model is a split Blocksystem, wall-mounted to refrigerate cold rooms ranging from 2 HP to 20 HP.
2.1 Control panel
Table 2 below describes the control panel.

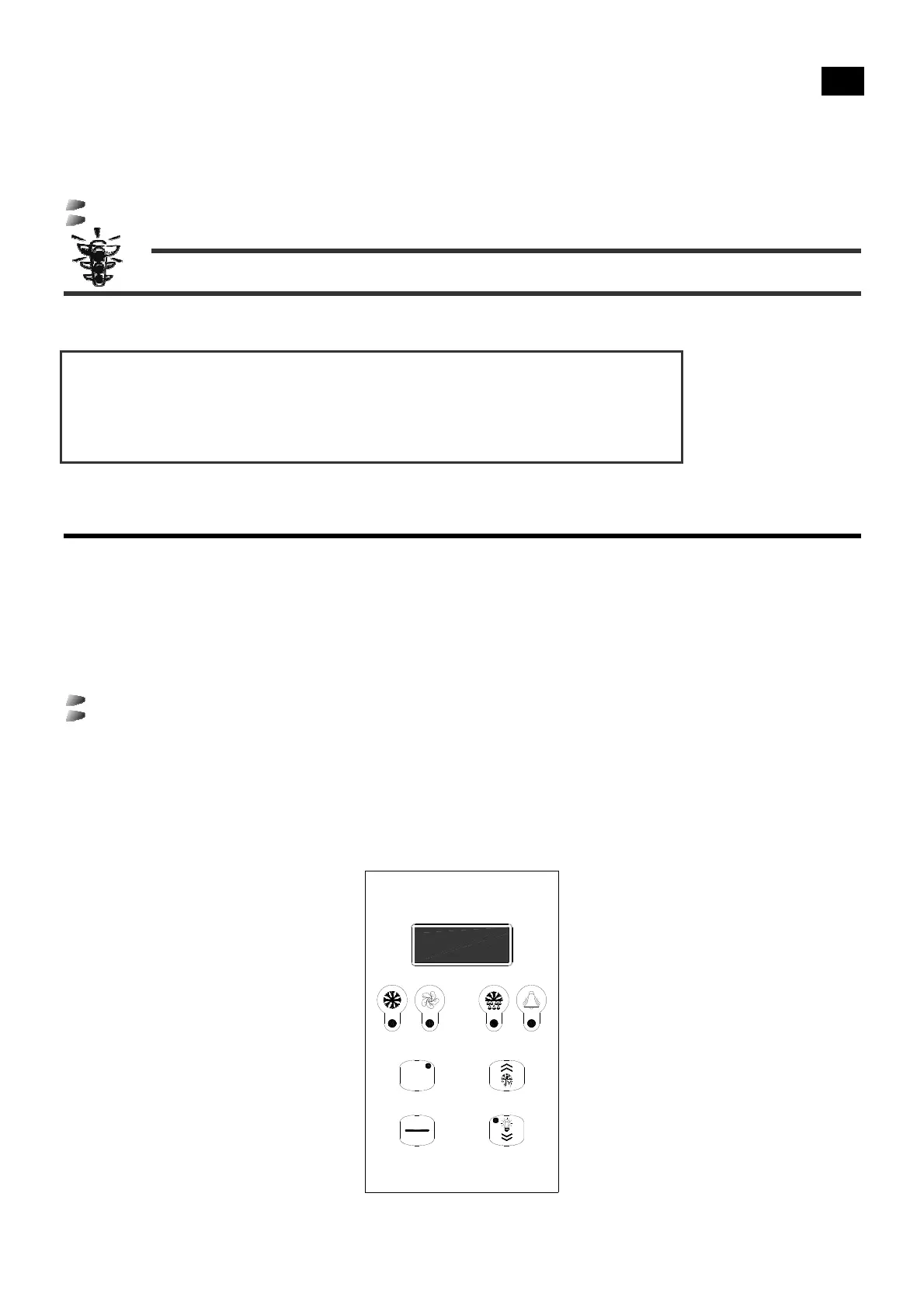

Figure 1 Control panel
set
on
off
