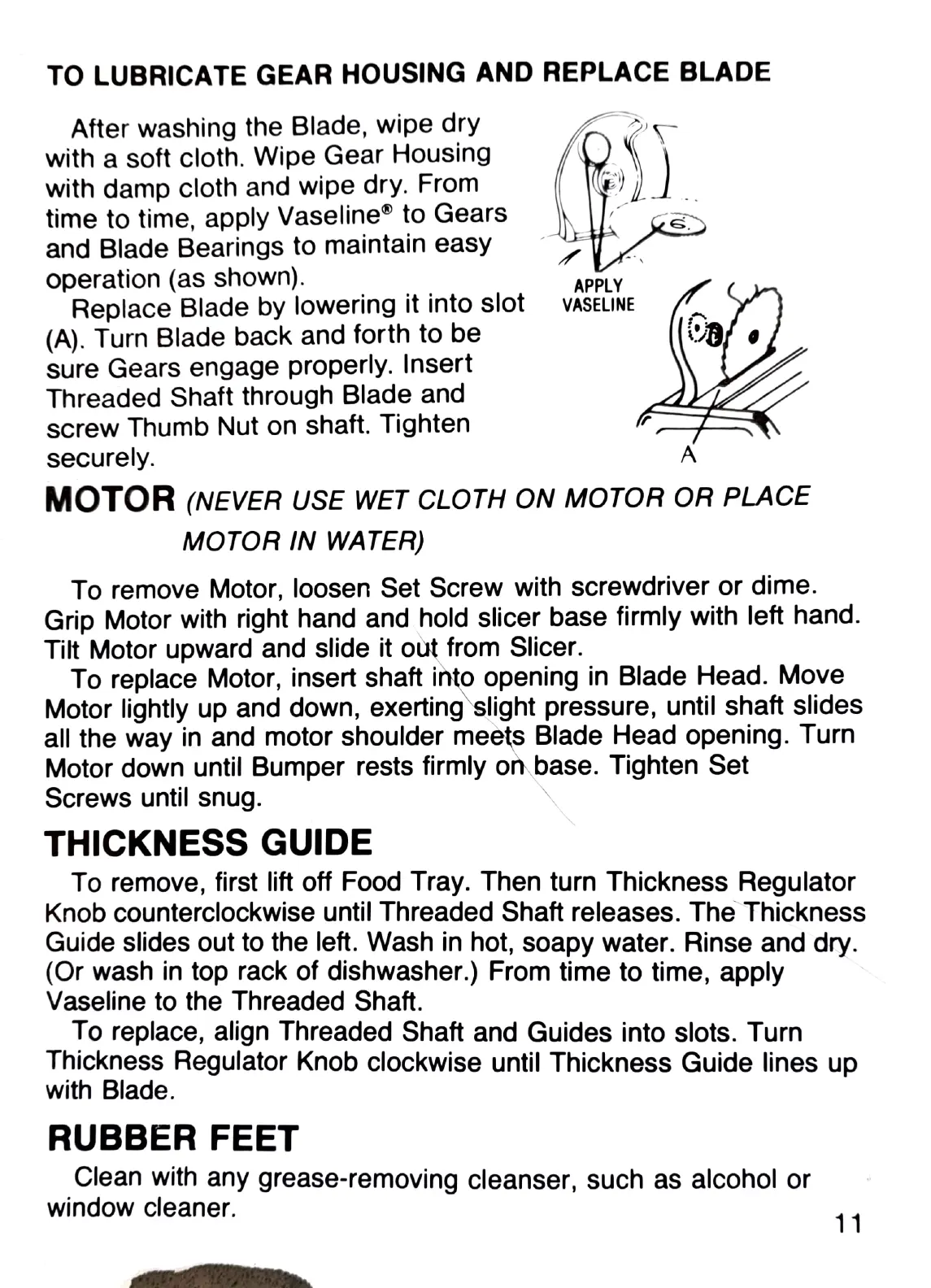

TO LUBRICATE GEAR HOUSING AND REPLACE BLADE
After washing the Blade, wipe dry
with a soft cloth. Wipe Gear Housing
with
damp
cloth
and
wipe
dry.
Fromm
time
to
time,
apply
Vaseline"
to Gears
and Blade Bearings to maintain easy
operation (as shown).
Replace
Blade
by
lowering
it into
slot
(A).
Turn
Blade
back
and
forth
to
be
Sure Gears engage properly. Insert
Threaded Shaft through Blade and
screw Thumb Nut on shaft. Tighten
securely.
APPLY
VASELINE
MOTOR (NEVER USE WET CLOTH ON MOTOR OR PLACE
MOTOR IN WATER)
To remove Motor, loosen Set Screw with screwdriver or dime.
Grip
Motor
with
right
hand
and hold
slicer
base
firmly
with
left hand.
Tilt
Motor
upward
and
slide
it
out
from Slicer.
To replace Motor, insert shaft into opening in Blade Head. Move
Motor lightly up and down, exerting slight pressure, until shaft slides
all the way in and motor shoulder meets Blade Head opening. Turn
Motor down until Bumper rests firmly on base. Tighten Set
Screws until snug.
THICKNESS GUIDE
To remove, first lift off Food Tray. Then turn Thickness Regulator
Knob counterclockwise until Threaded Shaft releases. The Thickness
Guide slides out to the left. Wash in hot, soapy water. Rinse and dry.
(Or wash in top rack of dishwasher.) From time to time, apply
Vaseline to the Threaded Shaft.
To replace, align Threaded Shaft and Guides into slots. Turn
Thickness Regulator Knob clockwise until Thickness Guide lines up
with Blade.
RUBBER FEET
Clean with any grease-removing cleanser, such as alcohol or
window cleaner.
