BURNER CLEANING:
1. Clean the exterior of the burner with a brass brush.
Use a metal scraper to remove stubborn stains.
2. Clear clogged ports with a straightened paper clip.
Never use a wooden toothpick as it may break off
and clog the port.
3. If insects or other obstructions are blocking the
flow of gas through the burner, call customer
service at (888) 837-1380. Make sure to center

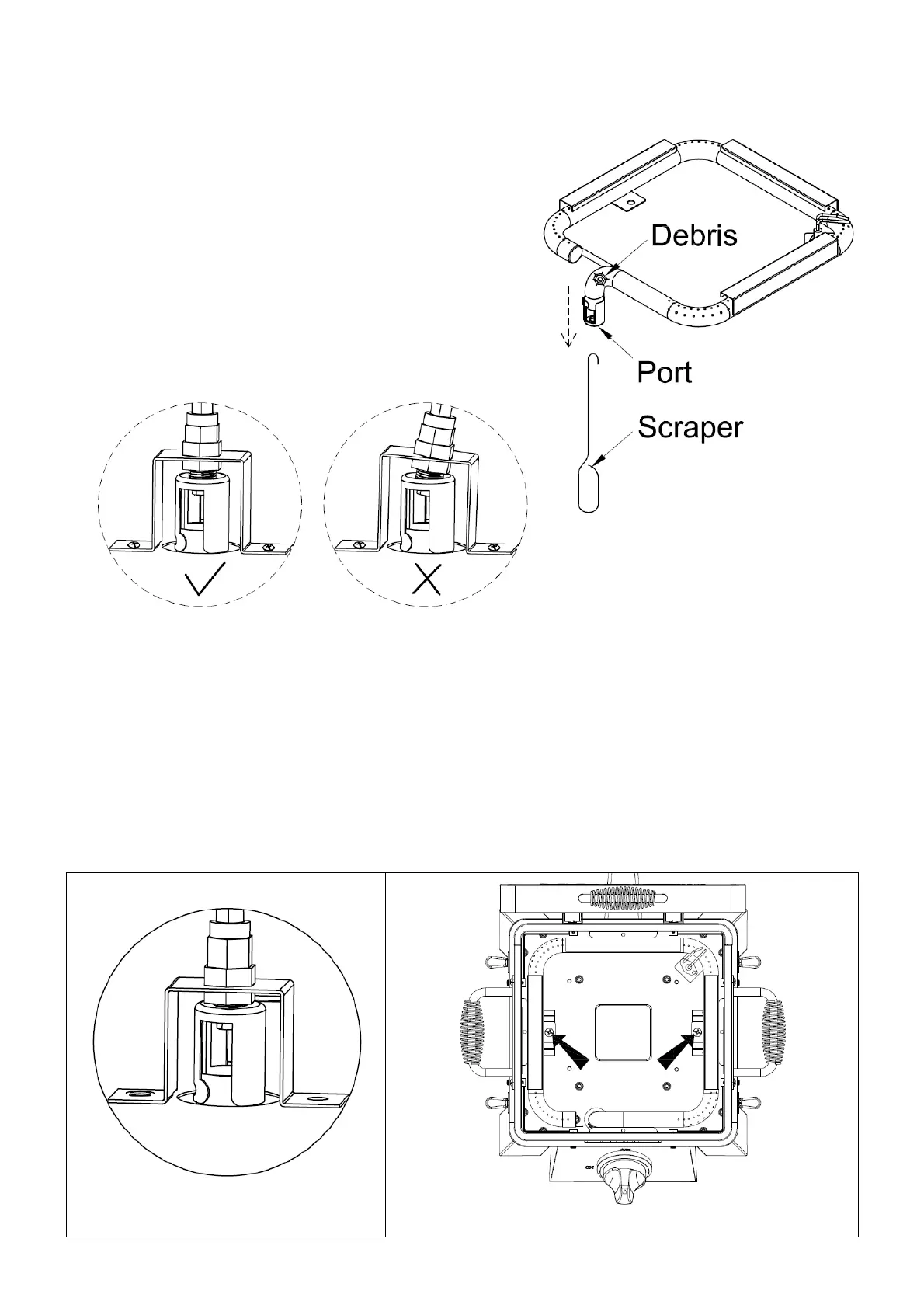

the burner over the orifice as shown at below
diagrams.
TO REINSTALL THE BURNER:
1. Place the burner into the main body and insert the ignition wire through the hole on the
bottom panel of the fire box.
2. Insert the burner into the gas valve.
3. Firmly seat the orifice into the burner port. Make sure the orifice is inserted STRAIGHTLY into
the burner port as shown at Step “C” below.
4. Align the burner with the screw holes then install bolts and tighten as shown at Step “D”
below.
5. Insert the terminal of ignition wire into the connector of gas valve.
Step C Step D
Correct
Position
Incorrect
Position
