tion #1
Cool-side
proportioning
cycle ( t )
1 to 100 sec (0 can not be set.)
*Not displayed if the control
output is current output.
Set control cool-side output cycle for
heat/cool PID action.
See *4.
PV bias (Pb) Temperature input:
-1999 to +9999 °C[°F ] or
-199.9 to +999.9 °C [°F ]
Voltage/current inputs:
-span to +span
Sensor correction is made by adding
bias value to measured value (PV).
0 or 0.0
Set data lock
function (LCK)
See *5. Performs set data change
enable/disable.
0000
*1: Precautions for heater break alarm (HBA) setting
,#Displayed only for when HBA is selected as second alarm.
,#HBA is not available on a current output.
,#Set HBA set value to a value about 85 % of current transformer input value (CT). However, when power supply variations are
large, set the HBA to a slightly smaller value. In addition, when two or more heaters are connected in parallel, set the HBA to a
slightly larger value so that it is activated even with only one heater is broken (However, within the value of CT).
,#When the HBA set value is set to "0.0" or the current transformer is not connected, the HBA is turned on.
*2: Precautions for control loop break alarm (LBA) setting
,#Displayed only for when LBA is selected as first alarm or second alarm.
,#Usually set the set value of the LBA to a value twice the integral time (I).
,#No control loop break alarm can be used at heat/cool PID control action.
,#No LBA function is activated while the AT function is activated.
,#The LBA function is activated only at the 0 % or 100 % of PID computed value. Therefore, the time from trouble occurrence till the
activation of the LBA function equals the time until the PID computed value becomes 0 % or 100 % plus the LBA setting time.
,#If LBA setting time is too short or does not match the controlled object, the LBA may be turned on and off or not be turned on. In
this case, depending on the situation, change the LBA setting time.
*3:
Relay contact output : 20 sec, Voltage pulse output/Trigger output for triac driving/Triac output : 2 sec
*4:
Relay contact output : 20 sec, Voltage pulse output/Triac output : 2 sec
*5: Details of set data lock level selection
Setting Details of lock level Setting Details of lock level
0000 SV and parameter can be set. 0011 Only SV can be set.
0001 Only SV and alarms (ALM1, ALM2) can be set. 0101 Only alarms (ALM1, ALM2) can be set.
0010 Only setting items other than alarms
(ALM1, ALM2) can be set.
0110 Only setting items other than SV and alarms (ALM1,
ALM2) can be set.
0100 Only setting items other than SV can be set. 0111 SV and parameter cannot be set.
,#Each locked setting item can only be monitored.
,#Each alarm setting item [HBA, LBA, LBD] can be locked when any of "0001," "0011," "0101" and "0111" is set.

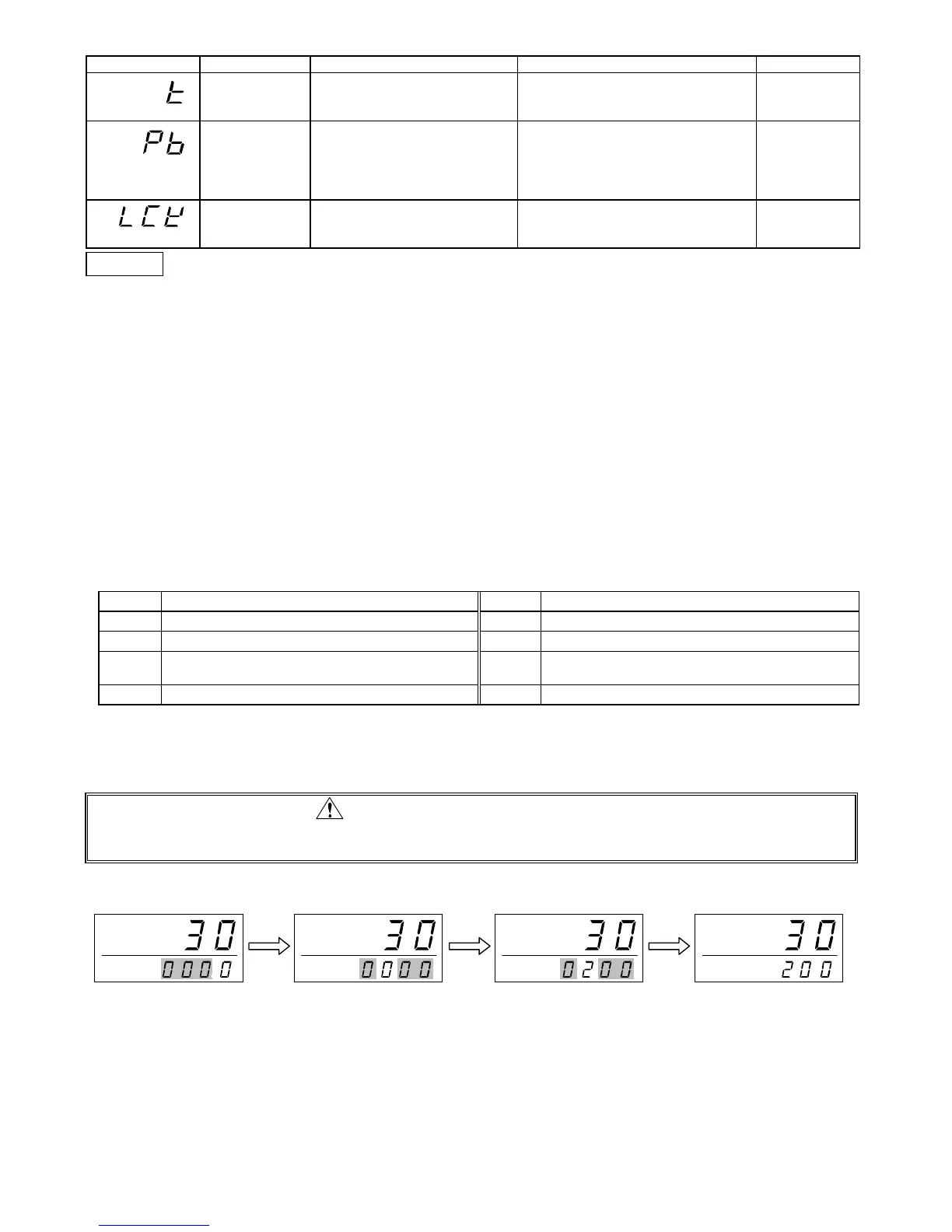

5.3 Parameter setting procedure
"#
Setting set value (SV)
Example: Following is an example of set value (SV) to 200 °C
"#
Setting parameters other than set value (SV)
The setting procedures are the same as those of example (2) to (4) in the above ""
Setting set value (SV).
" Pressing the
SET
key
after the setting end shifts to the next parameter. When no parameter setting is required, return the instrument to the PV/SV display
mode.
NOTE
Key operational cautions
,#Even if the displayed value is changed, it is not registered. To register it, press the
SET
key.
,#If the key is not operated for more than 1 minute, the present mode returns to the PV/SV display mode.
Some parameter symbols may not be displayed depending on the specification.
SV
PV
(1) Set to the SV setting mode
(2) Shift of the digit brightly lit (3) Numeric value change (4) Set value entry
up to the hundreds digit.
Press the
<R/S
key to shift
the digit which lights brightly
SV
PV
SV
PV
SV
PV
Press the
SET
key to enter
the SV setting mode.
The digit which light brightly
is settable.
Press the
UP
key to set "2."
Pressing the
UP
key
increase numerals, and
pressing the
DOWN
key
decrease numerals.
After finishing the setting,
press the
SET
key. All of
the set value digits light
brightly and as a result
the instrument returns to
the PV/SV display mode.
To Next Page
